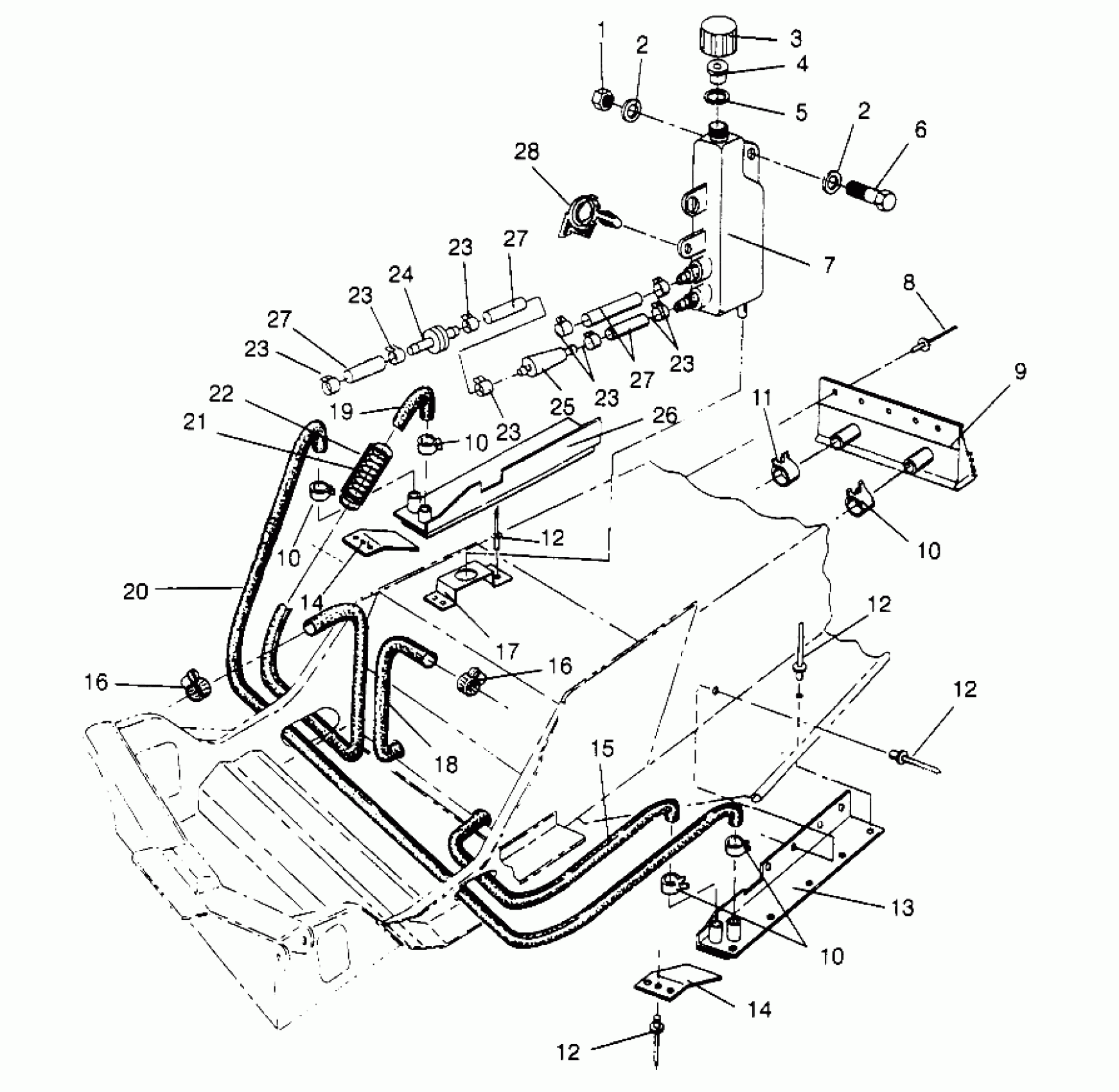

Polaris 500 CARB - 0962764 COOLING SYSTEM 500 CARB 0962764, 500 CARB SKS 0962564, 500 CARB SKS E96256 (4931873187B010) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER,WROUGHT(10)

7558302

$1.59

2

WASHER,WROUGHT(10)

7558302

$1.59

3

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

4

PLUG, OVERFLOW,(10)

5431096

$2.02

5

GASKET-OVERFLOW CAP

5810279

$2.41

6

BOLT(10)

7512240

$3.99

7

BOTTLE,O'FLOW,W/FITTING

5431733

$36.41

8

RIVET-3/16-.090-.290

7661637

$1.49

9

EXCHANGER WELD,CTR.

2511225

$204.76

10

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)

7080562

Unavailable

10

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)

7080562

Unavailable

10

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)

7080562

Unavailable

10

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)

7080562

Unavailable

11

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844 (Grey)

7080564

$10.32

12

RIVET,INTERLOCK,B(50)

7661638

$1.49

12

RIVET,INTERLOCK,B(50)

7661638

$1.49

12

RIVET,INTERLOCK,B(50)

7661638

$1.49

12

RIVET,INTERLOCK,B(50)

7661638

$1.49

13

COOLER,LH,SIDE(XTRA 10) Substituted by 1240059

2511257

$144.99

14

GUARD, COOL.EXT.

5222863

$32.99

14

GUARD, COOL.EXT.

5222863

$32.99

15

HOSE-CROSSOVER (Short)

5410350

Unavailable

16

CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842 (Black)

7080563

Unavailable

16

CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842 (Black)

7080563

Unavailable

17

BRKT,OILTANK,COINED

5241334

$9.70

18

HOSE,PUMP/CTR.EXT.

5410743

Unavailable

19

HOSE,ENG/SIDE EXT.

5410738

Unavailable

20

HOSE,CROSSOVER

5410557

Unavailable

21

SPRING,HOSE RETAINER

7041079

$4.95

22

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

23

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

24

VALVE, CHECK

7052038

$10.51

25

FILTER,WATER LINE Substituted by 2530024

2530010

Unavailable

26

COOLER,RH,SIDE(XTRA 10)

2511258

$227.99

27

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

27

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

27

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

28

CLIP, PLASTIC(10)

4020139

$4.79
