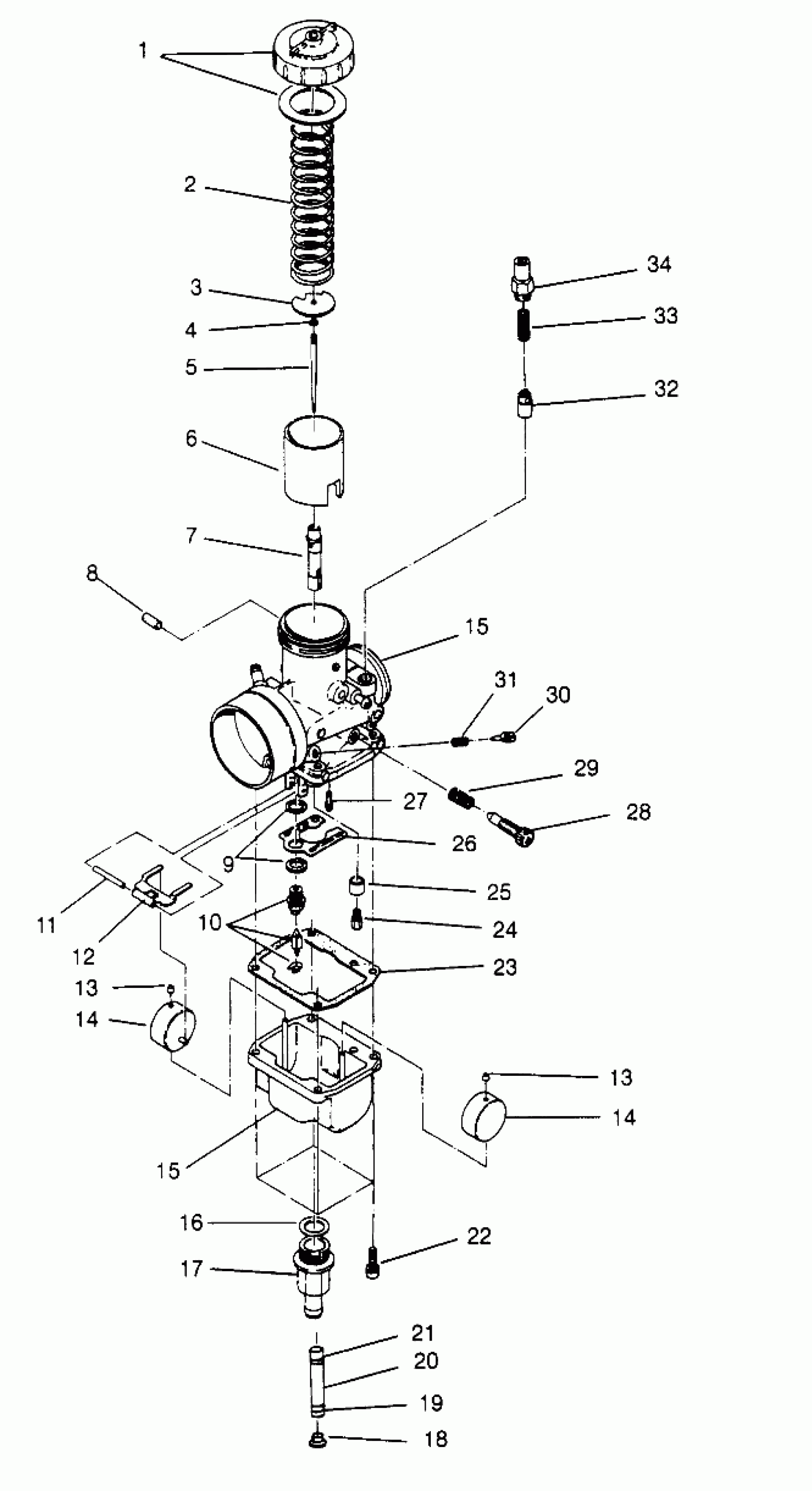

Polaris 500 CARB - 0962764 CARBURETOR 500 CARB 0962764, 500 CARB SKS 0962564, EUROPEAN 500 CARB SKS E (4931873187D001) Diagram

#

Description
Price

1

TOP ASM (Incl. Gasket)

3130184

$32.37

2

SPRING,THROTTLE

3130444

Unavailable

3

PLATE, THROTTLE

3130054

$6.46

4

E RING(10) Substituted by 3130508

3130003

Unavailable

5

NEEDLE,JET,(6F9-3) (6F9-3)

3130378

Unavailable

6

VALVE,THROTTLE,2.0 (2.0) (RMK)

3130471

Unavailable

6

VALVE, THROTTLE,2.5 (2.5) (Carb/SKS)

3130454

Unavailable

7

JET,NEEDLE,P-8 (P-8) (247) (Carb/SKS)

3130382

Unavailable

7

NEEDLE JET,(P-4) (P-4) (247) (RMK)

3130641

Unavailable

8

CAP

3130479

$14.56

9

WASHER(10)

3130047

$4.84

10

VALVE ASM,NEEDLE Substituted by 3130643 (1.5)

3130046

$56.65

11

PIN, FLOAT

3130361

$8.89

12

ARM,FLOAT

3130048

Unavailable

13

CAP,(10)

3130237

$4.03

13

CAP,(10)

3130237

$4.03

14

FLOAT ASM

3130021

$40.46

14

FLOAT ASM

3130021

$40.46

15

CARBURETOR ASM (Incl. 1-16, 22-34) (Carb/SKS)

3130623

Unavailable

15

CARBURETOR ASM. [No Longer Available] (Incl. 1-16, 22-34) (RMK)

3130640

Unavailable

15

CARBURETOR ASM (Incl. 1-16, 22-34) (Carb/SKS)

3130623

Unavailable

15

CARBURETOR ASM. [No Longer Available] (Incl. 1-16, 22-34) (RMK)

3130640

Unavailable

16

O RING

3130239

Unavailable

17

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

18

NIPPLE

3130573

$32.37

19

CLAMP,HOSE(10)

7080544

Unavailable

20

DESC NOT_AVAILABLE

8450045-600

Unavailable

21

CLAMP,SPRING,(10)

7080534

$1.59

22

SCREW

3130056

$3.19

23

GASKET,FLOAT CHAMBER

3130236

$12.13

24

JET,MAIN,HX.HD#240(10) (#240) (RMK)

3130127

$7.99

24

JET,MAIN,#340 Substituted by 3130137 (#340) (Carb/SKS)

3130626

Unavailable

25

RING,CARB

3130232

Unavailable

26

PLATE

3130243

Unavailable

27

JET,PILOT,#45(10) (#45) (RMK)

3130068

$8.89

27

JET,PILOT,#40(10) (#40) (Carb/SKS)

3130067

$10.99

28

SCREW,THROTTLE STOP

3130009

$19.99

29

SPRING,THROTTLE ADJ.

3130010

$8.89

30

SCREW,AIR

3130011

$19.99

31

SPRING,AIR ADJUST

3130012

$8.89

32

PLUNGER ASM, STARTER

3130328

$32.37

33

SPRING,PLUNGER

3130006

$8.89

34

HOLDER,GUIDE

3130199

$28.32
