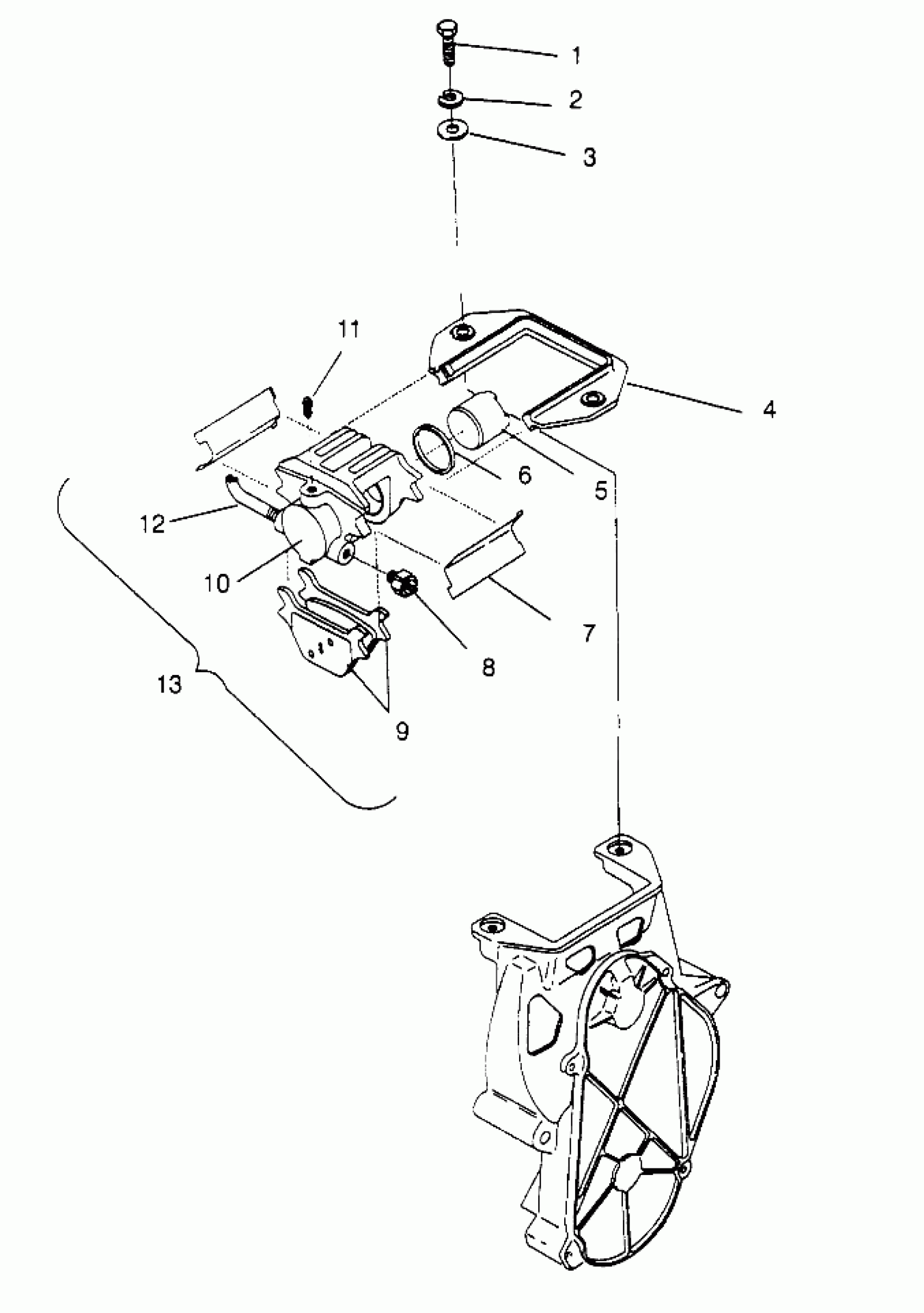

Polaris 500 CARB - 0962764 BRAKE ASSEMBLY 500 CARB 0962764, 500 CARB SKS 0962564, 500 CARB SKS E96256 (4931873187B008) Diagram

#

Description

Price

1

BOLT(10)

7515521

$3.99

2

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

3

WASHER(10)

7555806

$1.49

4

KIT,CALIPER BRKT.

1930733

Unavailable

5

KIT, PISTON SEAL (Incl. 6)

1930734

Unavailable

6

SEAL

2200466

$32.37

7

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

8

SWITCH,STOPLIGHT

4110135

Unavailable

9

KIT,BRAKE PAD Substituted by 2201019 (Incl. 7)

2200604

Unavailable

9

KIT,BRAKEPAD,HD.TYP.61 Substituted by 2201020 (Incl. 7)

2200594

Unavailable

10

KIT,CALIPER(AIR-COOLED) (Incl. 5, 6, 11)

1930737

Unavailable

11

KIT, INLET

1930735

$9.11

12

LINE,BRAKE

1930755

Unavailable

13

CALIPER, BRAKE Substituted by 1930825 (Incl. 4-11)

1930701

Unavailable
