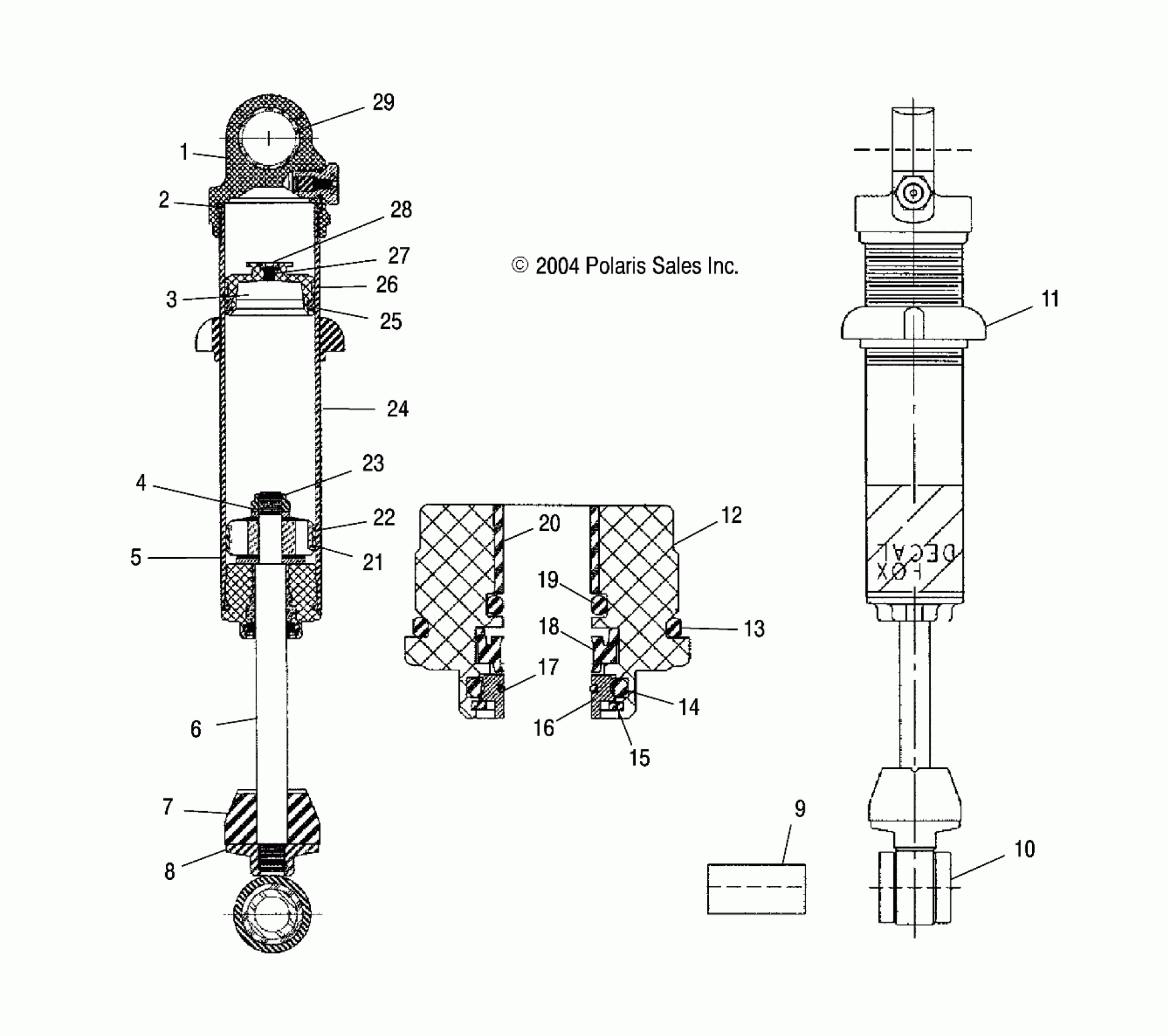

Polaris 500/600 XC SP EDGE/M-10 - S05NE5CS SHOCK (FRONT TRACK)(M-10) - S05NE5CS/NE6ES (4992749274C12) Diagram

#

Description
Price

-

Shock, Front Track, M-10 [Incl. All]

7042224

Unavailable

1

Asm., Body Cap

1500443

$102.38

2

O-Ring

1500108

$10.99

3

Piston, Floating

1500187

$26.98

4

Plate, Backup

1500015

$6.76

5

Plate, Top-Out

1500017

$20.22

6

Shaft

1500247

Unavailable

7

Bumper

1500441

$36.41

8

EYELET

1500164

$93.08

9

SLEEVE

1500310

$23.99

10

Bushing

1500309

Unavailable

11

Ring, Spring Preload

1500494

Unavailable

12

Asm., Bearing [Incl. 13-20]

1500545

Unavailable

13

O-Ring

1500020

$10.63

14

O-Ring

1500483

$8.89

15

Ring, Snap

1500486

Unavailable

16

Scraper, FIST

1500485

Unavailable

17

O-Ring

1500484

$8.89

18

U-Cup

1500266

$24.27

19

O-Ring

1500021

$10.99

20

Bearing

1500488

Unavailable

21

Bearing

1500002

$31.99

22

Kit, Piston Valving

2200618

Unavailable

23

Nut

1500016

$12.79

24

Body

1500442

$23.02

25

O-Ring

1500003

$8.89

26

Bearing

1500006

$19.99

27

O-Ring

1500022

Unavailable

28

Screw

1500018

$5.56

29

Bearing

1500444

Unavailable
