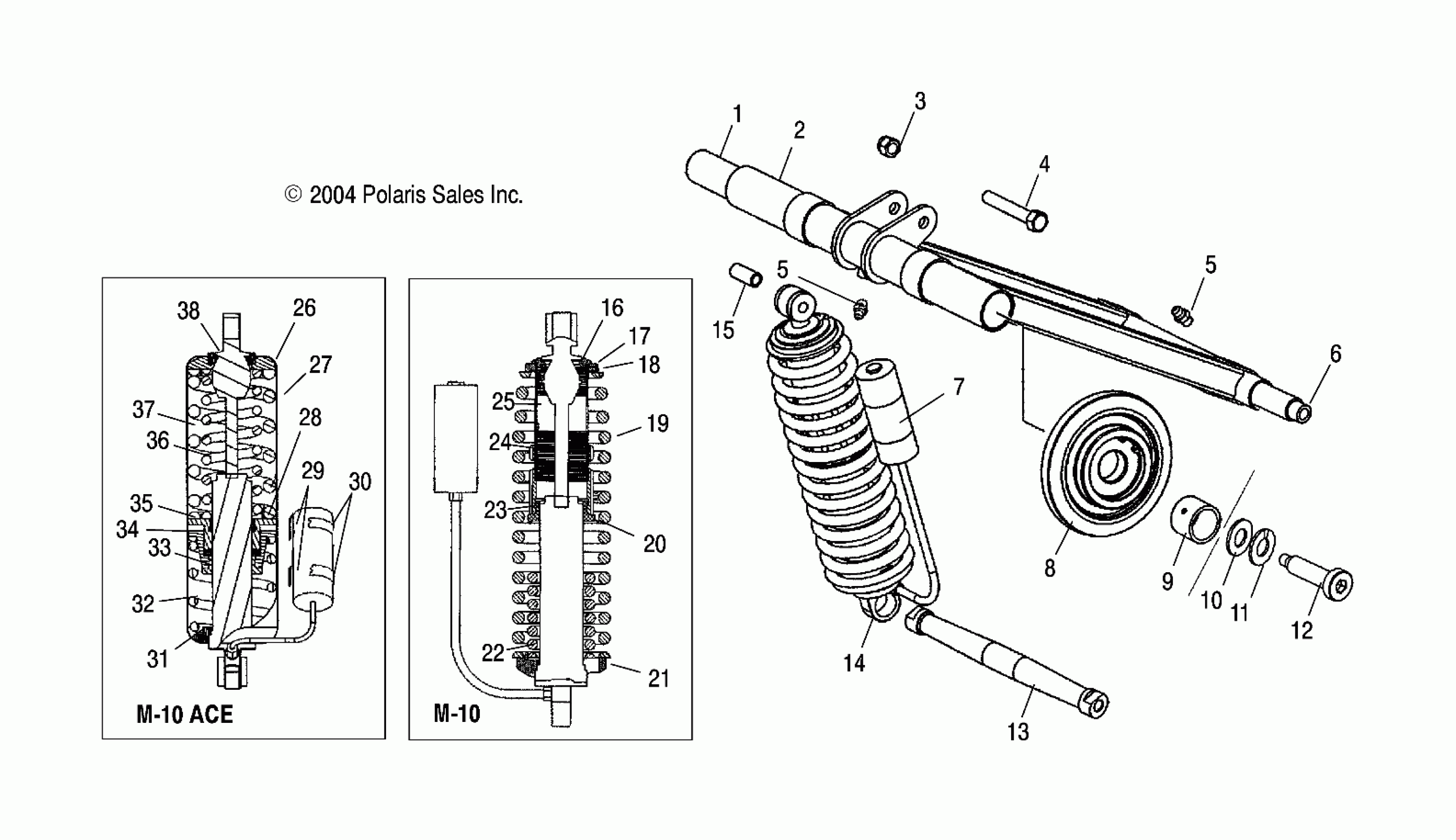

Polaris 500/600 XC SP EDGE/M-10 - S05NE5CS REAR TORQUE ARM (M-10) - S05NE5CS/NE6ES (4992749274C04) Diagram

#

Description
Price

1

Shaft, Upper

5132578

Unavailable

2

Arm, Torque, Black, M-10

1541527-067

Unavailable

2

Arm, Torque, Black, M-10 ACE

1541894-067

Unavailable

3

Nut, Nylok

7542439

$1.49

4

Screw

7515415

$1.49

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

6

Shaft. Lower

5133093

$28.79

7

Decal, M-10, Fox

7079432

Unavailable

8

Asm., Wheel

1590308

Unavailable

8

Bearing

3514330

$31.99

8

Ring, Retaining

7710471

$13.59

9

Screw, Socket Set

7512257

$3.99

9

Collar

5132582

Unavailable

10

Washer, Flat

7555984

$2.39

11

WASHER-LOCK, 7/16-B

7552614

$1.59

12

Screw, Socket Head

7517815

Unavailable

13

SHAFT, TAPERED [SEE REAR SUSPENSION M-10 PG. C2, REF. 25]

-------

Unavailable

14

Shock, Rear Track [See Shock Rear Track M-10 Pg. C14 for Details]

7042216

Unavailable

14

Shock, Rear Track [See Shock Rear Track M-10 ACE Pg. C13 for Details]

7042149

Unavailable

15

SLEEVE

5333905

$15.99

16

Cap, Ice [M-10]

5244747

$5.75

17

Retainer, Spring Slotted [M-10]

5020618

$24.99

18

Nut, Preload [M-10]

5132645

Unavailable

19

Spring, Shock, Rear, M-10, Black

7041935-067

Unavailable

20

Bushing, Over Load Depressor

5433882

$5.78

21

Retainer, Spring, Rear

5133032

$84.99

22

Spring, Overload, Rear, M-10, Black

7041936-067

Unavailable

23

Ring, Adjuster [M-10]

5132625

$97.99

24

Nut, Ring Adjuster [M-10]

5132643

Unavailable

25

Sleeve, Overload Depressor [M-10]

5132794

$29.37

26

Retainer, Spring, Lower, M-10 ACE

5133746

$50.39

27

Spring, Compression [M-10 ACE]

7042208-067

$82.39

28

Bushing, Nylon [M-10 ACE]

5434896

$8.79

29

Pad, Foam [M-10 ACE]

5812432

$2.63

30

Clamp, Hose [M-10 ACE]

7081119

$6.23

31

Retainer, Spring, Upper, M-10 ACE

5133747

Unavailable

32

Spring, Compression, Black [M-10 ACE]

7042207-067

$97.13

33

Bushing, Overload Depressor [M-10 ACE]

5433882

$5.78

34

Retainer, Spring, Preload Adj. [M-10 ACE]

5133744

$69.98

35

Collar, Spring, Preload Adj. [M-10 ACE]

5133745

$115.49

36

Spring, Compression, Black [M-10 ACE]

7042206-067

Unavailable

37

Cover, Spring, Nylon [M-10 ACE]

2683490

Unavailable

38

Collar, Spring, Slotted [M-10 ACE]

5133778

Unavailable
