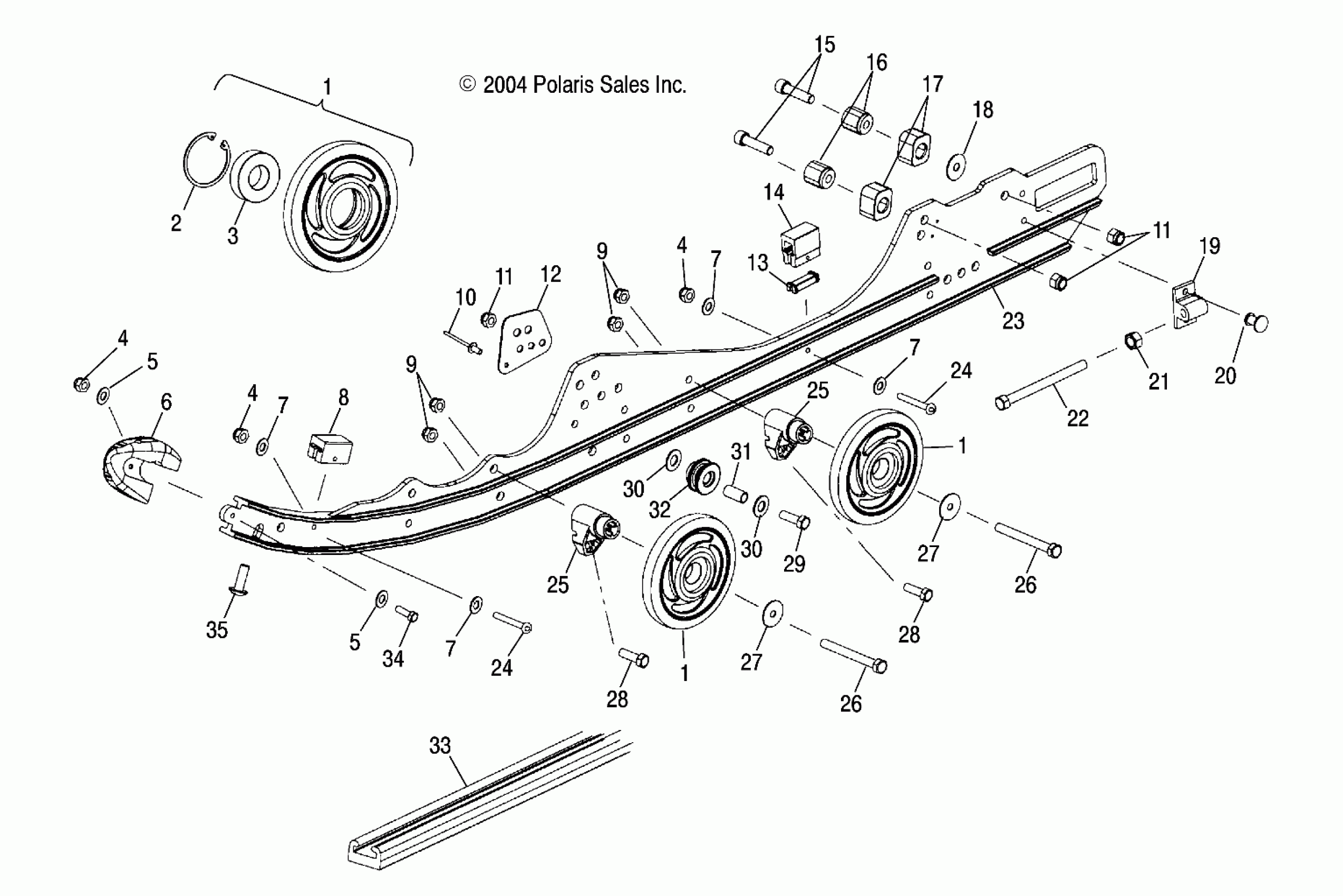

Polaris 500/600 XC SP EDGE/M-10 - S05NE5CS RAIL MOUNTING (EDGE) - S05NP5CS/A/B/NP6ES/A/B/NA6ES/EE (4992749274B11) Diagram

#

Description
Price

1

Asm., Wheel, Bright Silver Metallic [Incl. 2,3]

1590275-244

Unavailable

1

Asm., Wheel, Bright Silver Metallic [Incl. 2,3]

1590275-244

Unavailable

1

Asm., Wheel, Bright Silver Metallic [Incl. 2,3]

1590275-244

Unavailable

2

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

3

BEARING [1 PER WHEEL]

3514303

$11.99

4

Nut, Nylok

7541925

$1.49

4

Nut, Nylok

7541925

$1.49

4

Nut, Nylok

7541925

$1.49

5

WASHER

7555792

$4.79

5

WASHER

7555792

$4.79

6

Cap, Rail Tip

5434374

$20.22

7

Washer, Flat

7555783

$3.99

7

Washer, Flat

7555783

$3.99

7

Washer, Flat

7555783

$3.99

7

Washer, Flat

7555783

$3.99

8

BUMPER, JOUNCE, FRONT

5521499

$8.89

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

RIVET

7661845

$1.49

11

Nut, Nylok

7542439

$1.49

11

Nut, Nylok

7542439

$1.49

12

Bracket, Rail Reinforcement

5244677

$39.98

13

LINER-BUMPER

5432946

$9.70

14

BUMPER, JOUNCE, REAR

5521498

$8.89

15

BOLT

7515537

$10.99

16

MOUNT, BUMPER

5131113

$28.32

17

BUMPER, PIVOT ARM

5410925

$12.94

18

Spacer

5244371

Unavailable

19

Block, Idler Bolt Adjusting

5132444

$28.32

20

RIVET

7621501

$2.39

21

Nut

7547156

$9.59

22

Screw

7517773

$28.56

23

Asm., Rail, RH [Incl. 6,8,14,17,19]

1541756

Unavailable

23

Asm., Rail, LH [Incl. 6,8,14,17,19]

1541755

Unavailable

24

Screw

7510504

$6.76

24

Screw

7510504

$6.76

25

Block, Mount, Wheel

5631065

$28.32

25

Block, Mount, Wheel

5631065

$28.32

26

Screw

7515346

$5.59

26

Screw

7515346

$5.59

27

Washer, Spring

7556179

$7.99

27

Washer, Spring

7556179

$7.99

28

BOLT

7515317

$4.79

28

BOLT

7515317

$4.79

29

Bolt

7515438

$4.79

30

WASHER

7555983

Unavailable

30

WASHER

7555983

Unavailable

31

SPACER

5333948

$6.39

32

Roller, Spring

5433959

$8.08

33

Slider, XL, Service, Basic

5521571

$36.41

34

Bolt

7511975

Unavailable

35

Screw

7515199

$1.49
