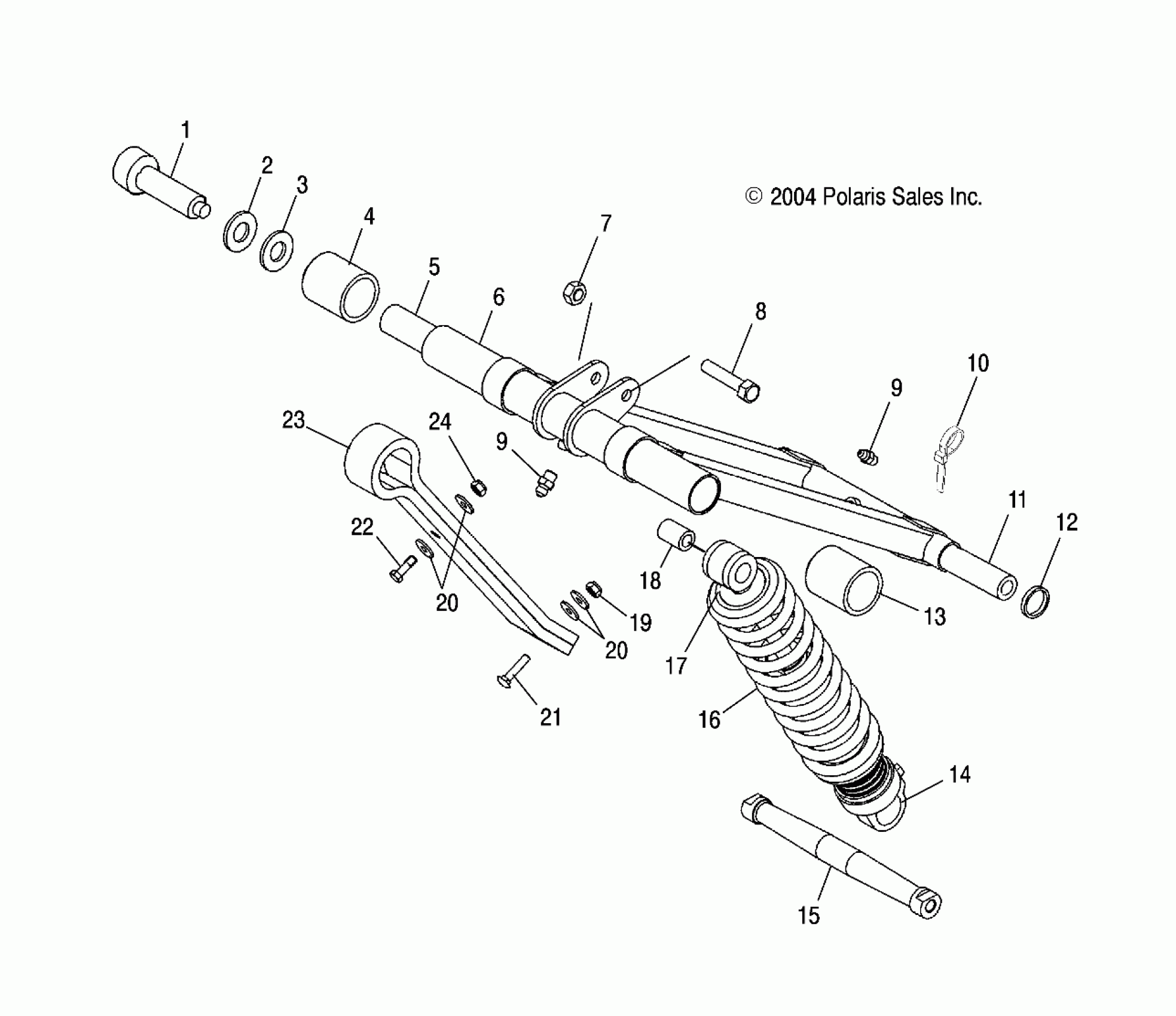

Polaris 500/600 XC SP EDGE/M-10 - S05NE5CS FRONT TORQUE ARM (M-10) - S05NE5CS/NE6ES (4992749274C03) Diagram

#

Description
Price

1

Screw

7517815

Unavailable

2

WASHER-LOCK, 7/16-B

7552614

$1.59

3

Washer, Flat

7555984

$2.39

4

Screw, Socket Set

7512257

$3.99

4

Spacer, Upper

5132595

Unavailable

5

Shaft, Upper

5132675

Unavailable

6

Arm, Torque, M-10, Black

1541527-067

Unavailable

6

Arm, Torque ACE, Black

1541893-067

Unavailable

7

Nut, Nylok

7542439

$1.49

8

Screw

7515415

$1.49

9

FITTING-LUBRICATION 1/4-28

7080424

$4.79

9

FITTING-LUBRICATION 1/4-28

7080424

$4.79

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

Shaft, Lower, Pivot

5132579

$21.59

12

Spacer, Lower

5132783

Unavailable

13

Sleeve, ACE Wire

5435190

$5.83

14

Shock, Front Track, M-10

7042224

Unavailable

15

SHAFT, TAPERED (See Rear Suspension M-10 Pg. C2, Ref. 25)

-------

Unavailable

16

Spring, Compression, Black

7041671-067

$179.99

17

RETAINER, SPRING, SLOTTED

5020618

$24.99

18

SLEEVE

5333905

$15.99

19

NUT-5/16-18 NYLOK-Y

7542324

$1.49

20

Washer, Flat

7556175

$5.99

20

Washer, Flat

7556175

$5.99

21

BOLT

7515316

$2.39

22

Bolt

7512392

$4.79

23

Strap, Limiter

5411940

Unavailable

24

NUT, NYLOK

7542344

$3.99
