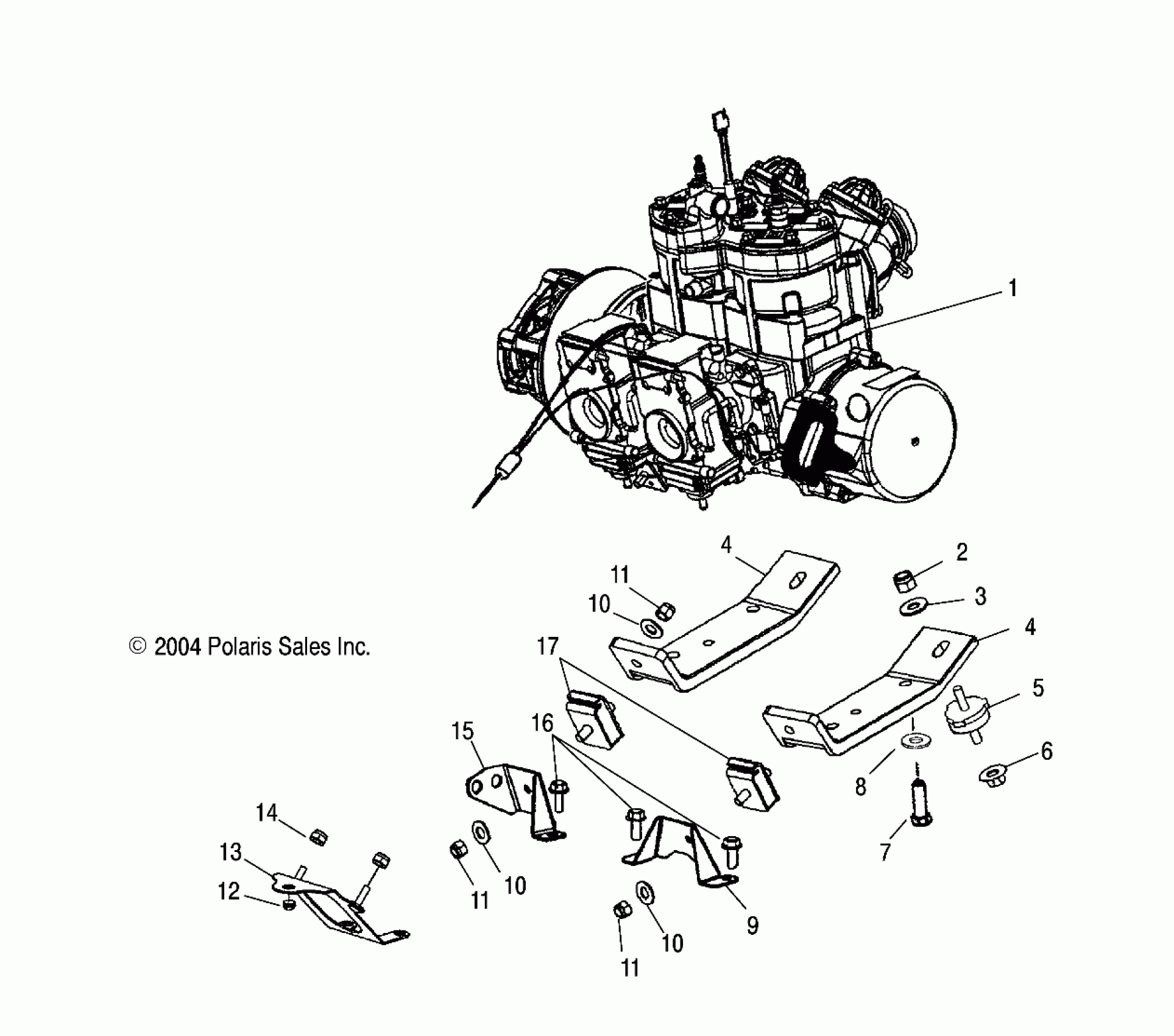

Polaris 500/600 XC SP EDGE/M-10 - S05NE5CS ENGINE MOUNTING - S05NP5CS/A/B/NP6ES/A/B/NE5CS/NE6ES/NA6ES/EE (4992749274D08) Diagram

Kit, Short Block, S604404 [500] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is requir

2202516

Unavailable

Kit, Short Block, S60-44-04 [600] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is requi

2202782

Unavailable

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

Washer, Flat

7555893

$1.49

Strap, Engine Mount, LH

5245465

$74.39

Strap, Engine, RH

5246382

$257.99

Strap, Engine Mount, LH

5245465

$74.39

Strap, Engine, RH

5246382

$257.99

Mount, Engine

3021220

Unavailable

NUT, FLANGED

7547180

$2.39

Bolt

7512539

$3.99

Washer, Spring Lock

7553101

$3.99

Bracket, Engine Mount, RH

5245044

Unavailable

Washer, Flat

7555806

$1.49

Washer, Flat

7555806

$1.49

Washer, Flat

7555806

$1.49

NUT, FLEXLOC

7547008

$6.39

NUT, FLEXLOC

7547008

$6.39

NUT, FLEXLOC

7547008

$6.39

Plug

5410012

Unavailable

Bracket, Fuel Pump

1014392

$12.39

Nut, Nylok

7542122

$1.49

Bracket, Engine Mount, LH

1013397

$24.27

Screw

7517854

$5.59

Mount, Engine

3021206

$60.70
