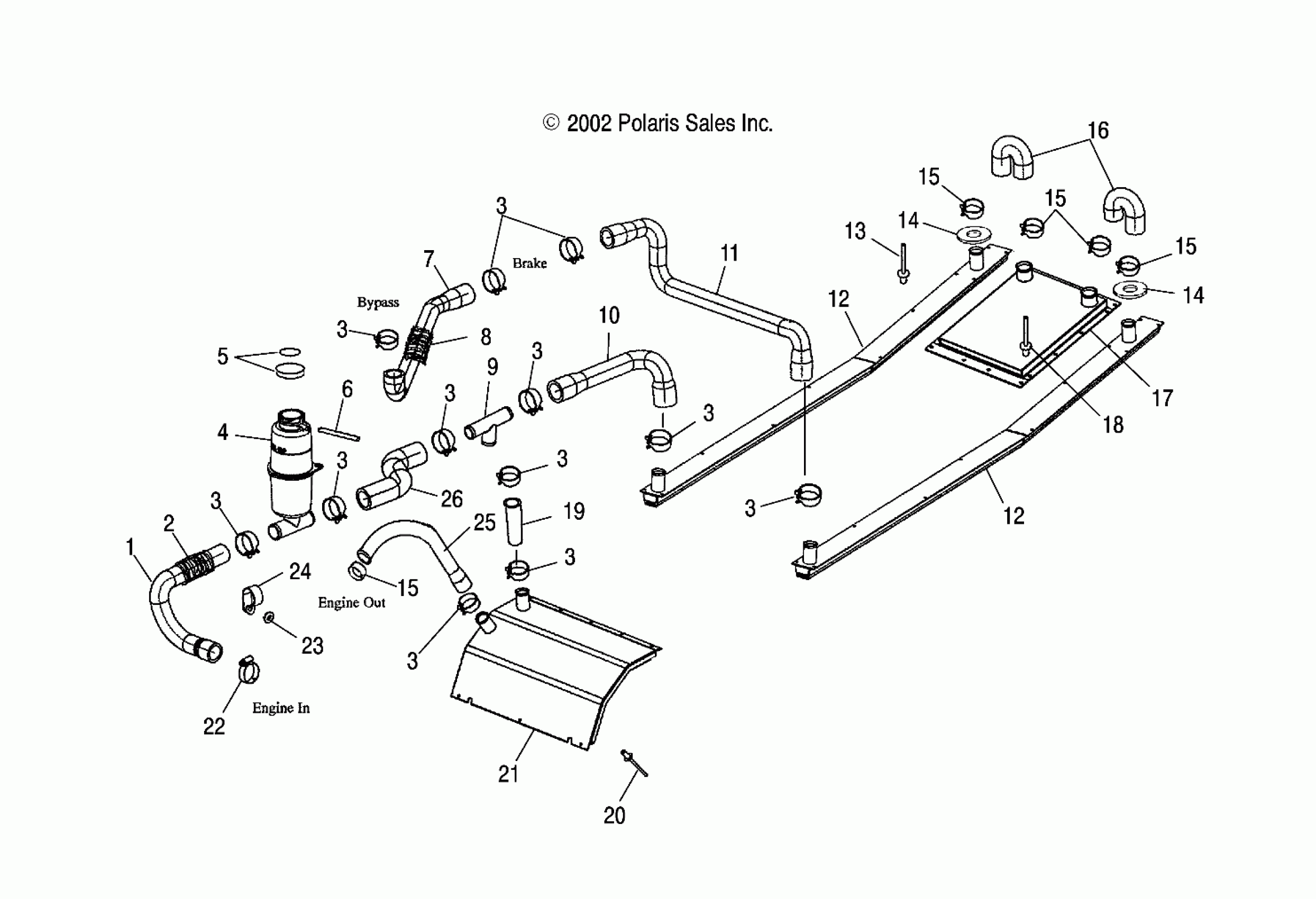

Polaris 500/600 XC SP EDGE/M-10 - S05NE5CS COOLING SYSTEM - S05NP5CS/A/B/NP6ES/A/B/NE5CS/NE6ES/NA6ES/EE (4992749274B09) Diagram

#

Description
Price

1

Hose, Tee To Engine

5411507

$48.56

2

TUBING, CONVOLUTED

5521510

$29.99

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

3

CLAMP, SPRINGBAND

7080844

$10.39

4

Bottle, Coolant

2520312

$48.56

5

DECAL, WATER BOTTLE CAP

7170063

$4.03

5

Cap, Pressure

2511270

$24.27

6

Line, Fuel

8450003-1525

$84.99

7

Hose, Bypass/Brake Cooler

5412349

$48.56

8

Tubing Convoluted

5521242

Unavailable

9

Fitting, "Y"

5434577

Unavailable

10

Hose, Wearstrip, "Y"

5412211

$21.43

11

Hose, Strip Cooler/Brake

5412163

Unavailable

12

Strip, Wear

1240154

$299.99

12

Strip, Wear

1240154

$299.99

13

Rivet

7621432

$1.49

14

Seal

5812023

$6.63

14

Seal

5812023

$6.63

15

Clamp, Springband

7080843

$3.99

15

Clamp, Springband

7080843

$3.99

15

Clamp, Springband

7080843

$3.99

15

Clamp, Springband

7080843

$3.99

16

Hose, Cooling, 1 Inch, 180 Degrees

5412356

Unavailable

17

Cooler

1240153

$634.99

18

Rivet

7621433

$1.49

19

Hose, Center Cooler, "Y"

5412215

$11.51

20

RIVET-3/16-.090-.290

7661637

$1.49

21

Cooler, Center

2520255

Unavailable

22

CLAMP-HOSE, 1.750-SS

7080560

$11.19

23

Washer, Flat

7555859

$1.49

24

Clamp, Hose

7080908

$8.99

25

Hose, Engine Out, Center Cooler

5412213

$28.15

26

Hose, Y to Bottle

5412348

Unavailable
