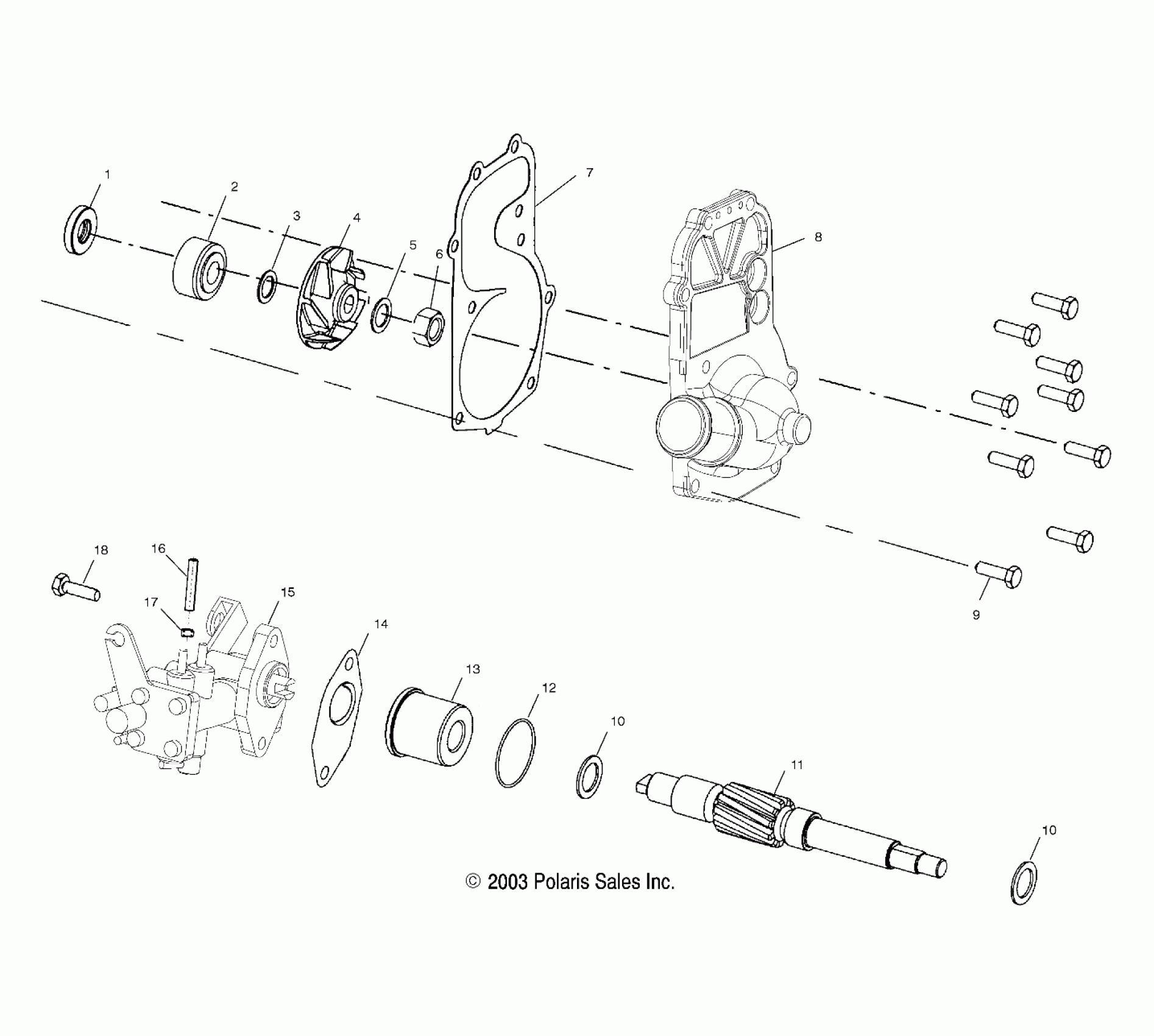

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS WATER PUMP/OIL PUMP - S04NP5CS/A/B/C/S04NE5CS/S04NP6ES/A/B/C/S04NE6ES (4988618861E03) Diagram

Description

Price

SEAL

5411197

$24.27

SEAL

3610067

$44.51

Washer, Flat

7556006

$3.99

Impeller, Water Pump

5432330

$23.99

Washer, Flat

7555874

$2.39

NUT, NYLOK

7546804

$1.49

GASKET, WATER PUMP COVER

5811601

$20.22

Cover, Water Pump

5630920

Unavailable

SCREW

7516822

$2.39

WASHER, THRUST

7555977

$7.19

WASHER, THRUST

7555977

$7.19

Gear, Cross Shaft

5133688

$165.94

O-Ring

5411196

$3.22

Bearing, Pump Shaft, Flanged

5010391

Unavailable

Gasket

5811789

$12.94

Pump, Oil

2540117

Unavailable

LINE, OIL

8450061-600

Unavailable

Clamp

7080603

$1.59

SCREW

7517277

$3.19
