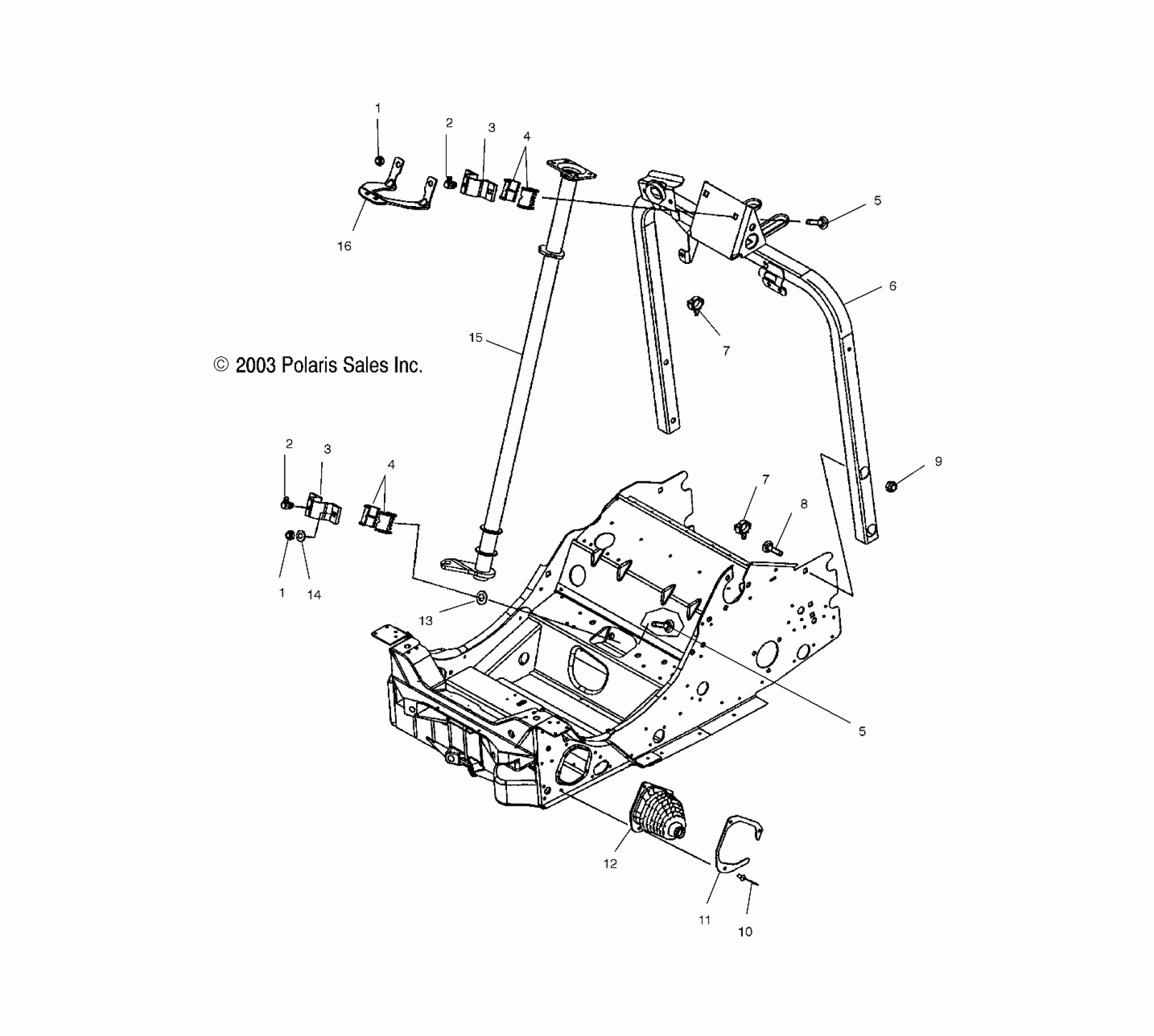

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS STEERING - S04NP5CS/A/B/C/S04NE5CS/S04NP6ES/A/B/C/S04NE6ES (4988618861B07) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

FITTING, ZERK

7080510

$5.59

2

FITTING, ZERK

7080510

$5.59

3

Bracket, Steering Post

5133648

$54.99

3

Bracket, Steering Post

5133648

$54.99

4

Bushing, Steering Post

5432785

$6.39

4

Bushing, Steering Post

5432785

$6.39

5

BOLT, CARRIAGE

7517579

$6.39

5

BOLT, CARRIAGE

7517579

$6.39

6

Hoop, Steering [Edge]

1013776-067

$364.99

6

Hoop, Steering [M-10]

1013804-067

$81.75

7

CLIP, ROSEBUD

4020139

$4.79

7

CLIP, ROSEBUD

4020139

$4.79

8

Bolt, Carriage

7512377

$4.79

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

Rivet

7621433

$1.49

11

Plate, Tie Rod Boot

5244470

Unavailable

12

Boot, Tie Rod, LH

5433532

Unavailable

12

Boot, Tie Rod, RH

5433533

Unavailable

13

PALNUT

7547030

$4.79

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

Post, Steering

1820965-067

Unavailable

16

Bracket, Console, Front Neck

5245354

$7.43
