STARTING MOTOR - S04NP5CS/A/B/C/S04NE5CS/S04NP6ES/A/B/C/S04NE6ES (4988618861E07)

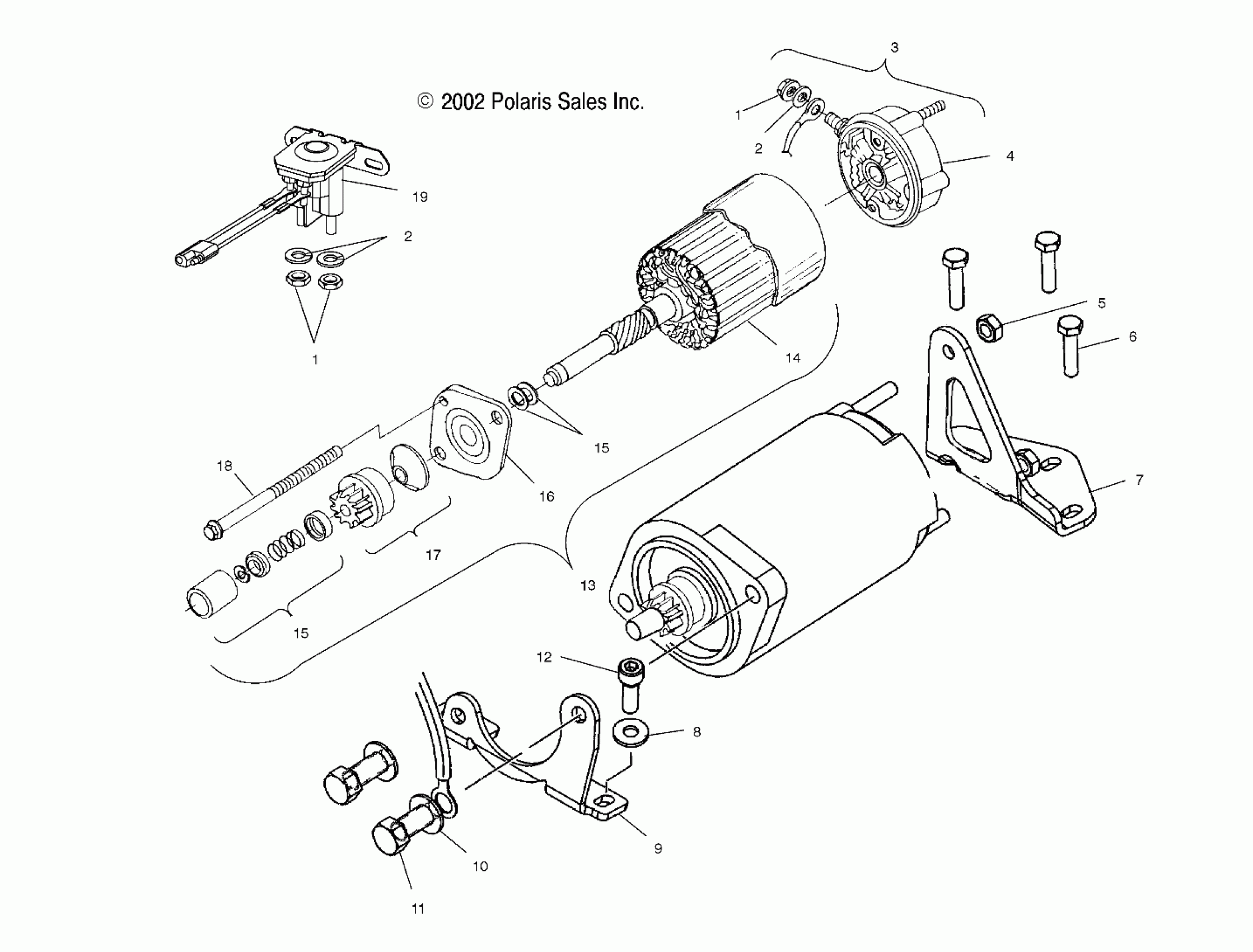

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS STARTING MOTOR - S04NP5CS/A/B/C/S04NE5CS/S04NP6ES/A/B/C/S04NE6ES (4988618861E07) Diagram
#
1
NUT
7542105
$3.99
1
NUT
7542105
$3.99
2
WASHER, SPRING LOCK
7552801
$1.59
2
WASHER, SPRING LOCK
7552801
$1.59
3
Kit, Commutator Cap [Incl. 4]
2200758
$82.39
4
Kit, Brush & Spring
2200759
$59.99
4
ASM., BRUSH & SCREW
-------
Unavailable
4
ASM., BRUSH
-------
Unavailable
4
BUSHING, INSULATION
-------
Unavailable
4
WASHER, INSULATION
-------
Unavailable
4
Nut
-------
Unavailable
5
Nut
7542153
$1.59
6
Screw
7516823
$3.19
7
Bracket, Starter, Rear
5244250
$389.99
8
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
9
Bracket, Starter, Front
5245467
Unavailable
10
Washer, Spring Lock
7552603
$1.49
11
Screw
7512492
$1.49
12
Screw
7517322
$2.39
13
Motor, Starter, Domestic
4170006
Unavailable
14
Kit, Armature
2200756
$169.99
15
Kit, Drive Hardware
2200755
Unavailable
15
WASHER, CURVED SPRING
-------
Unavailable
15
Washer, Thrust
-------
Unavailable
15
SPACER
-------
Unavailable
15
SPRING, ANTIDRIFT
-------
Unavailable
15
PINION, STOP
-------
Unavailable
15
RING, LOCK
-------
Unavailable
15
COVER, DUST
-------
Unavailable
15
Kit, Drive Hardware
2200755
Unavailable
15
WASHER, CURVED SPRING
-------
Unavailable
15
Washer, Thrust
-------
Unavailable
15
SPACER
-------
Unavailable
15
SPRING, ANTIDRIFT
-------
Unavailable
15
PINION, STOP
-------
Unavailable
15
RING, LOCK
-------
Unavailable
15
COVER, DUST
-------
Unavailable
16
Kit, Drive Cap
2200757
$59.99
17
Kit, Drive
2200754
Unavailable
17
PLATE, DRIVE
-------
Unavailable
17
PINION
-------
Unavailable
18
Kit, Screw
2200753
$29.99
18
BOLT, THRU
-------
Unavailable
19
Switch, Magnetic [Incl. 17,18]
4010930
$60.70
