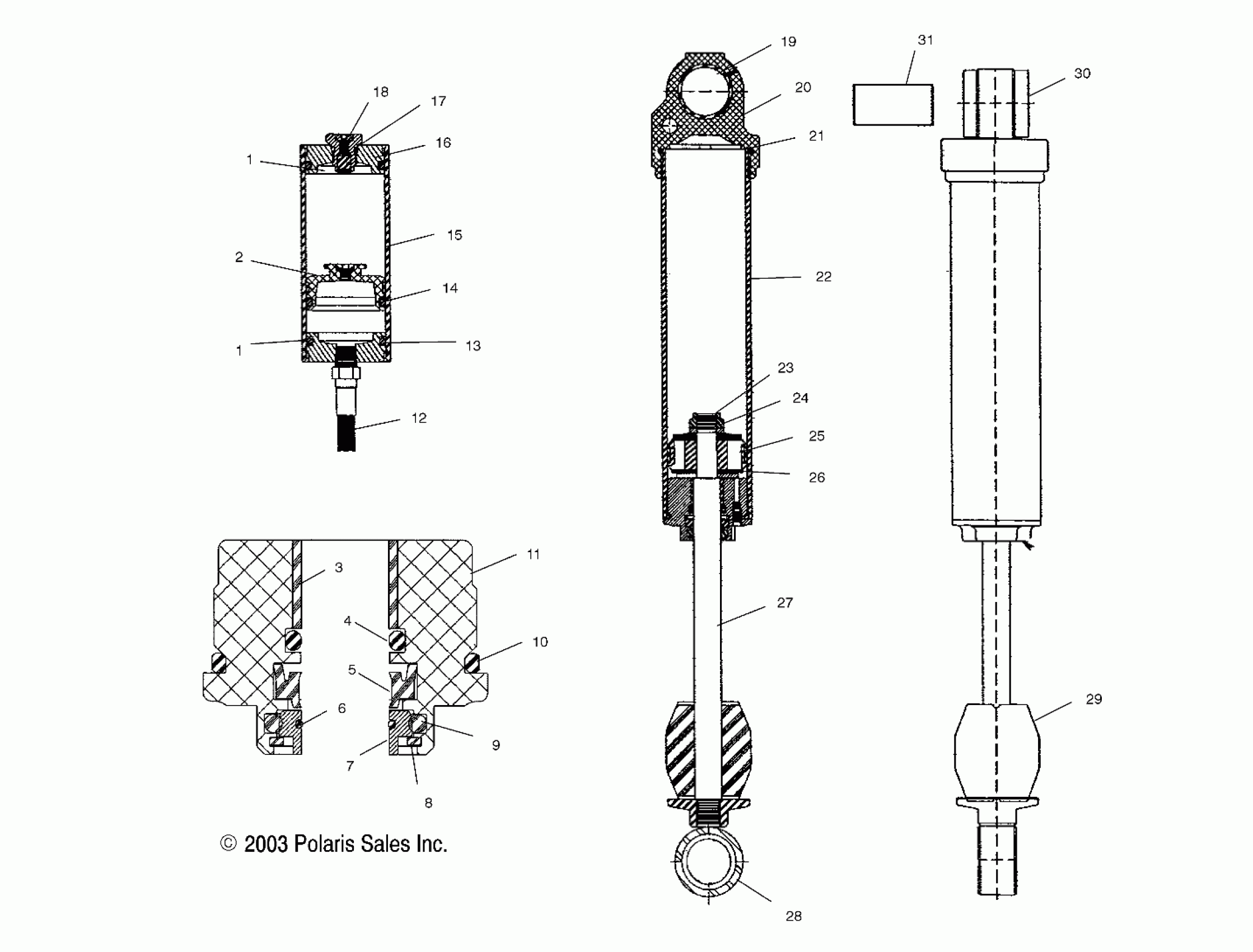

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS SHOCK (REAR TRACK)(M-10)(ACE) - S04NE5CS/S04NE6ES (4988618861D02) Diagram

#

Description
Price

-

Asm., Reservoir [Incl. 1,2,12-18]

1500449

Unavailable

-

Shock, Rear Track [Incl. All]

7042149

Unavailable

1

Seal, O-Ring

1500450

Unavailable

1

Seal, O-Ring

1500450

Unavailable

2

Piston, Floating

1500187

$26.98

3

Bearing

1500488

Unavailable

4

O-Ring

1500021

$10.99

5

Bearing

1500266

$24.27

6

O-Ring

1500484

$8.89

7

Scraper, FIST

1500485

Unavailable

8

Ring, Snap

1500486

Unavailable

9

O-Ring

1500483

$8.89

10

O-Ring

1500020

$10.63

11

Asm., Bearing [Incl. 3-10]

1500545

Unavailable

12

Hose

1500560

Unavailable

13

Cap, Reservoir

1500163

$69.51

14

O-Ring

1500003

$8.89

15

Reservoir

1500451

Unavailable

16

Asm., Cap, Reservoir

1500160

$216.17

17

O-Ring

1500023

$2.84

18

Asm., Air Valve

1500014

$69.99

19

Bearing

1500444

Unavailable

20

Asm., Cap, Body

1500563

$89.90

21

O-Ring

1500108

$10.99

22

Body

1500561

$66.39

23

Nut, Lock

1500016

$12.79

24

Plate, Backup

1500015

$6.76

25

Bearing

1500002

$31.99

26

Plate, Top-Out

1500017

$20.22

27

Shaft

1500562

Unavailable

28

Eyelet

1500564

Unavailable

29

Bumper

5410855

$39.19

30

Bushing

1500309

Unavailable

31

SLEEVE

1500310

$23.99
