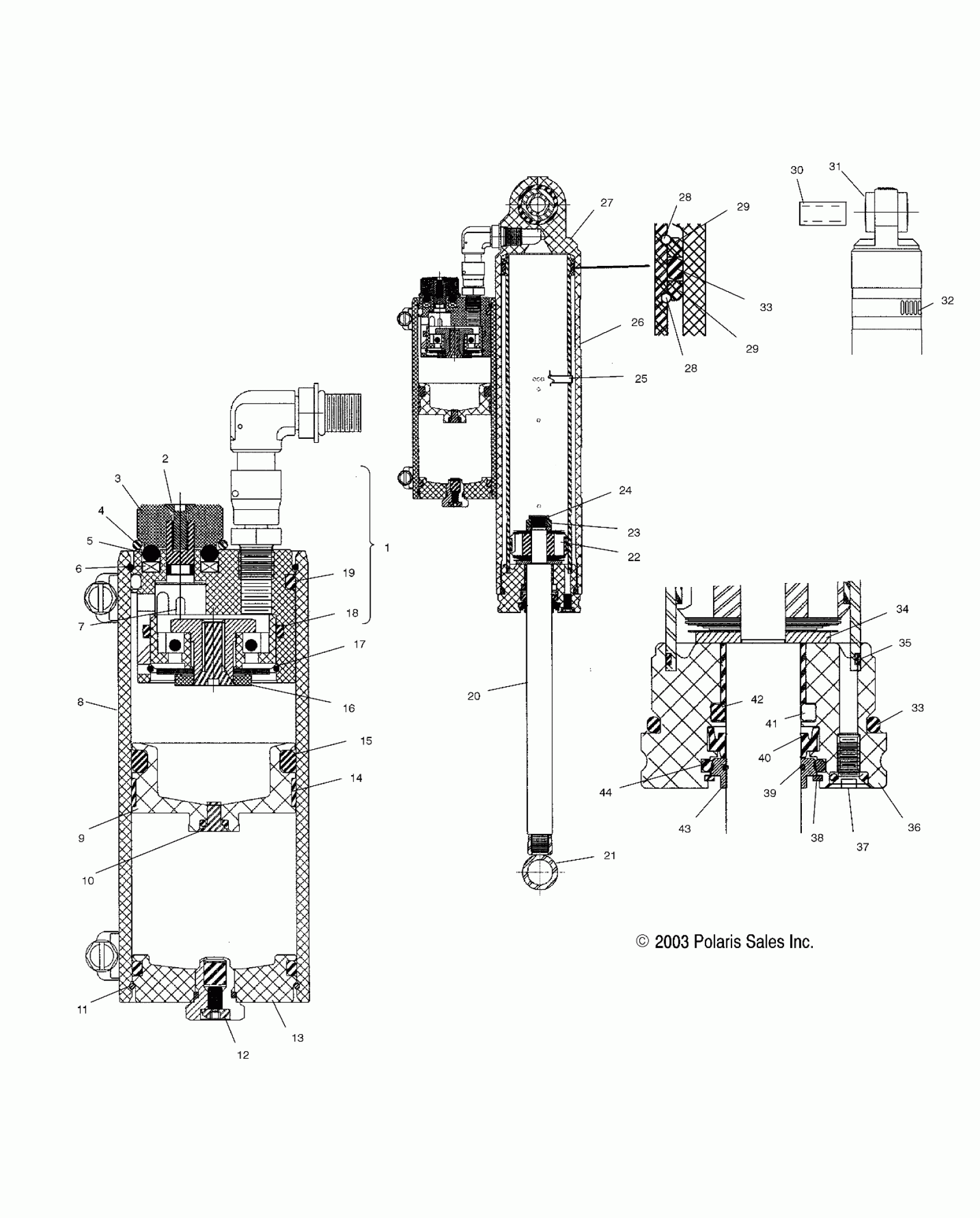

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS SHOCK (REAR TRACK)(EDGE) - S04NP5CS/A/B/C/S04NP6ES/A/B/C (4988618861C11) Diagram

#

Description
Price

-

Asm., Reservoir [Incl. 1-19]

1500329

Unavailable

-

Shock, Rear Track, PSCA [Incl. All]

7042212

Unavailable

1

Asm., Compression Damping Housing [Incl. 2-7,18,19]

1500555

$122.84

2

Screw

1500223

$2.23

3

Knob, 8 Click

1500521

$36.31

4

O-Ring

1500253

$1.49

5

Ball

1500226

$1.75

6

Spring

1500225

$3.32

7

Drum, Compression Damping

1500254

$40.79

8

Reservoir

1500325

Unavailable

9

Piston, Floating

1500235

$49.59

10

Screw

1500161

Unavailable

11

RING, RETAINING

1500236

$9.59

12

Screw

1500232

Unavailable

13

Cap, Reservoir End

1500514

$35.51

14

Bearing

1500230

$31.99

15

O-Ring

1500229

$4.92

16

Plate, Damping

1500324

$50.00

17

Ring, Retaining

1500233

$3.75

18

O-Ring

1500227

$1.49

19

O-Ring

1500228

Unavailable

20

Shaft

1500322

$71.99

21

Eyelet

1500302

$49.21

22

Bearing, Piston

1500002

$31.99

22

Piston

1500489

$12.39

23

Plate, Backup

1500015

$6.76

24

Nut, Lock

1500016

$12.79

25

Valve, Check

1500306

Unavailable

26

Body, Internal

1500331

$205.99

27

Asm., Body [Incl. 1]

1500480

$148.79

28

RING, RETAINING, WIRE

1500097

$4.79

28

RING, RETAINING, WIRE

1500097

$4.79

29

Collar

1500336

$27.78

29

Collar

1500336

$27.78

30

Sleeve .568 ID

1500311

Unavailable

31

BUSHING

1500307

$7.99

32

Clamp, Hose

1500565

$18.39

33

O-Ring

1500228

Unavailable

33

O-Ring

1500228

Unavailable

34

O-Ring

1500228

Unavailable

35

O-RING

1500459

$5.65

36

Asm., Bearing [Incl. 33-44]

1500553

$121.99

37

O-Ring

1500022

Unavailable

37

Screw

1500295

Unavailable

38

Ring, Snap, Internal

1500552

$1.99

39

O-Ring

1500554

$2.15

40

U-Cup

1500256

$19.99

41

O-Ring

1500549

$2.38

42

Bearing

1500260

$4.79

43

Scraper, FIST

1500550

$13.39

44

O-Ring

1500551

$1.49
