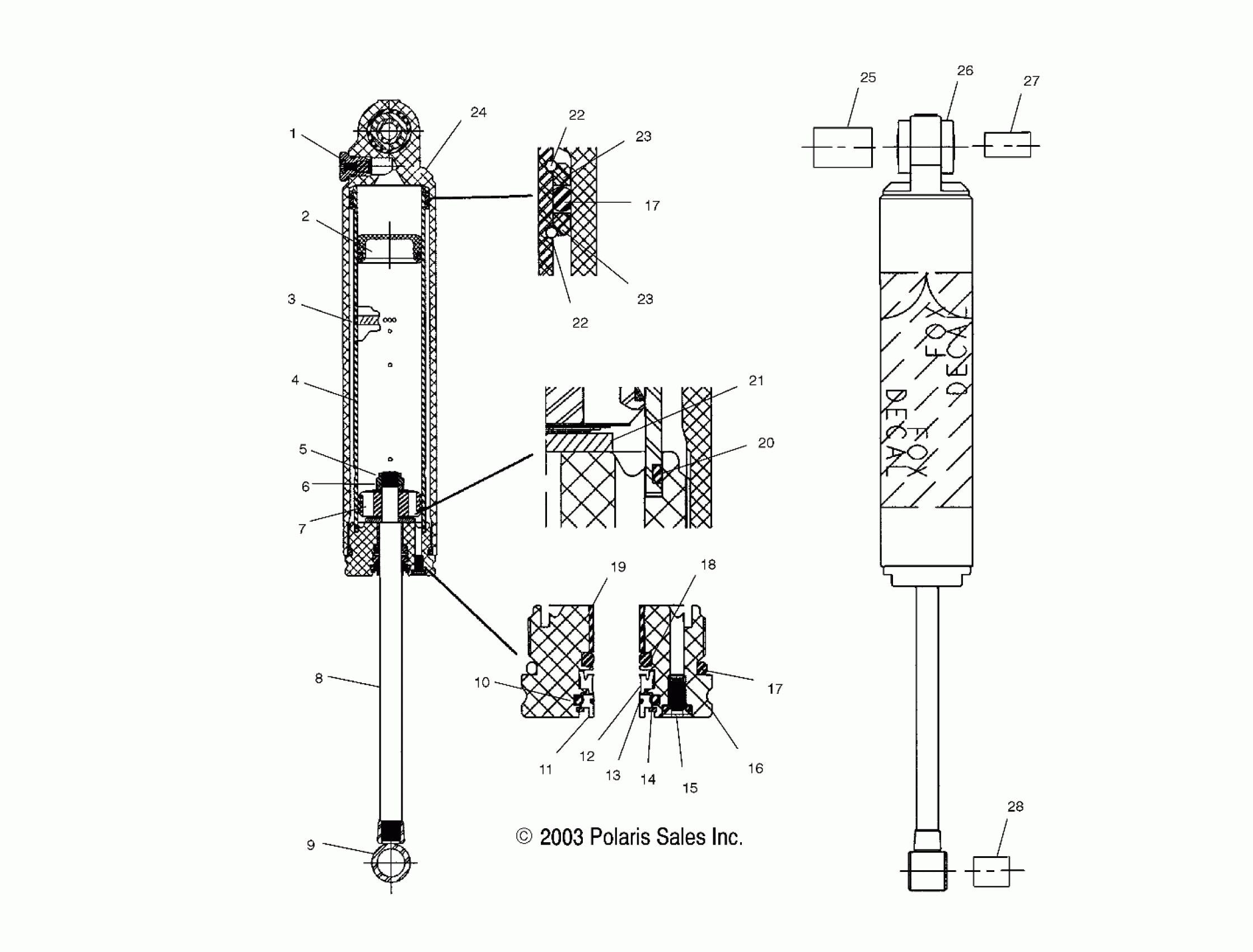

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS SHOCK (REAR TRACK)(EDGE) - S04NP5CS/A/B/C/S04NP6ES/A/B/C (4988618861C09) Diagram

#

Description
Price

-

Shock, Rear Track, PPS

7042129

Unavailable

1

O-Ring

1500022

Unavailable

1

Screw

1500295

Unavailable

2

O-Ring

1500003

$8.89

2

Bearing, External

1500006

$19.99

2

Asm., Floating Piston

1500481

$23.19

3

Valve, Check

1500306

Unavailable

4

Asm., Body, Inner

1500331

$205.99

5

Nut, Lock

1500016

$12.79

6

Plate, Backup

1500015

$6.76

7

Bearing, Piston

1500002

$31.99

7

Piston

1500489

$12.39

8

Shaft

1500487

$75.00

9

Eyelet

1500302

$49.21

10

O-Ring

1500483

$8.89

11

Scraper, FIST

1500485

Unavailable

12

U-Cup

1500266

$24.27

13

O-Ring

1500484

$8.89

14

Ring, Snap, Internal

1500486

Unavailable

15

O-Ring

1500022

Unavailable

15

Screw

1500295

Unavailable

16

Asm., Bearing FIST [Incl. 10-19]

1500482

$89.68

17

O-Ring

1500228

Unavailable

17

O-Ring

1500228

Unavailable

18

O-Ring

1500127

Unavailable

19

Bearing

1500488

Unavailable

20

O-RING

1500459

$5.65

21

Plate, Top-Out

1500017

$20.22

22

RING, RETAINING, WIRE

1500097

$4.79

22

RING, RETAINING, WIRE

1500097

$4.79

23

Collar, Alum

1500336

$27.78

23

Collar, Alum

1500336

$27.78

24

Asm., Body [Incl. 1]

1500480

$148.79

25

Sleeve .56 ID

1500311

Unavailable

26

BUSHING

1500307

$7.99

27

Sleeve .385 ID

5333907

$15.99

28

Bushing .385 ID

5010422

$11.99
