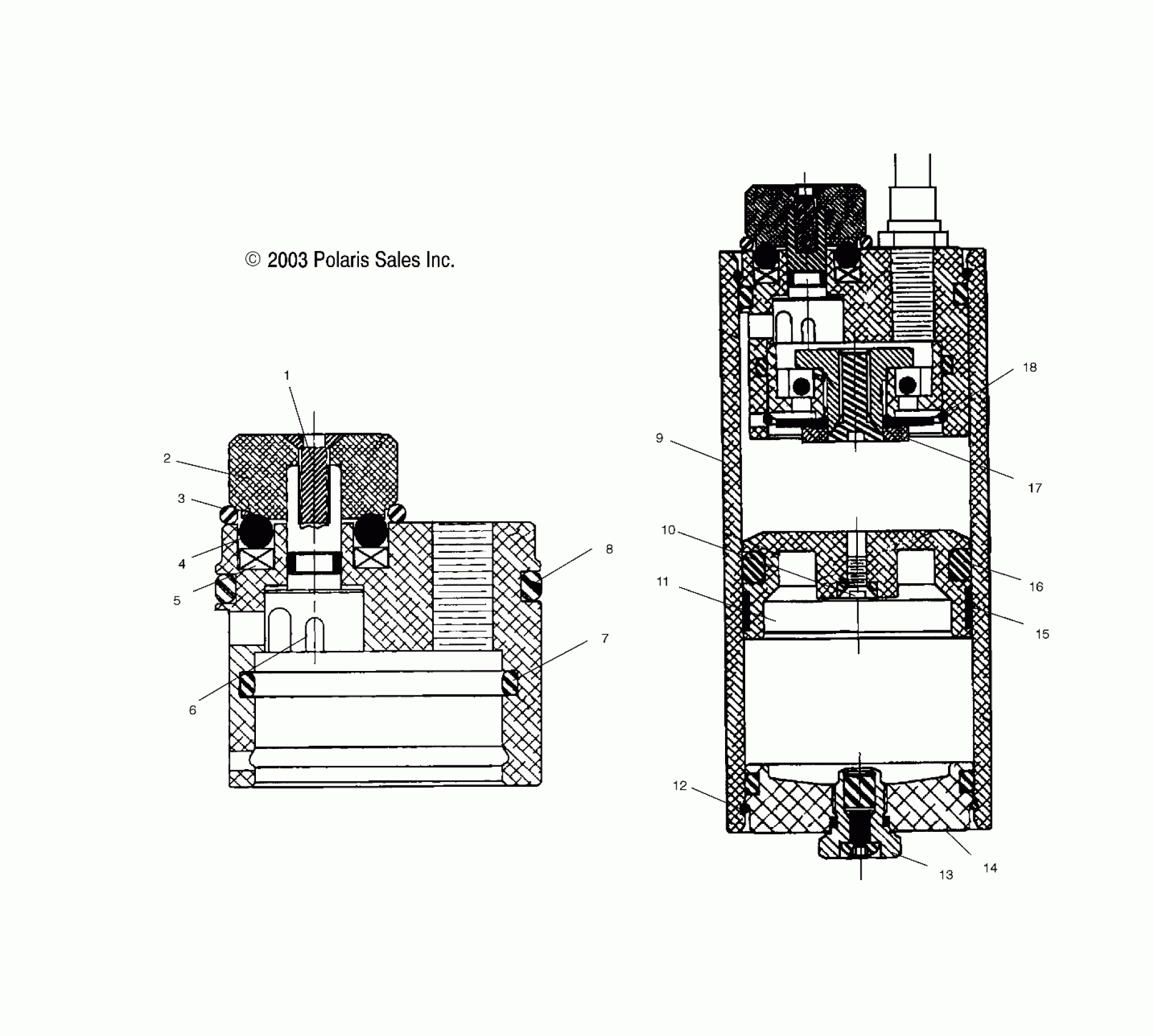

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS SHOCK COMPRESSION DAMPING RESERVOIR (EDGE) - S04NP5CS/A/B/C/S04NP6ES/A/B/C (4988618861C13) Diagram

#

Description
Price

-

Asm., Compression Damping Housing [Incl. 1-8]

1500263

$103.19

-

Asm., Reservoir [Incl. 1-18]

1500329

Unavailable

1

Screw

1500223

$2.23

2

Knob, Damping Adjust

1500224

$30.95

3

O-Ring

1500253

$1.49

4

Ball

1500226

$1.75

5

Spring

1500225

$3.32

6

Drum, Compression Damping

1500254

$40.79

7

O-Ring

1500227

$1.49

8

O-Ring

1500228

Unavailable

9

Reservoir

1500325

Unavailable

10

Screw

1500161

Unavailable

11

Piston, Floating

1500235

$49.59

12

RING, RETAINING

1500236

$9.59

13

Screw

1500232

Unavailable

14

Cap, Reservoir End

1500231

Unavailable

15

Bearing

1500230

$31.99

16

O-Ring

1500229

$4.92

17

Plate, Damping

1500324

$50.00

18

Ring, Retaining

1500233

$3.75
