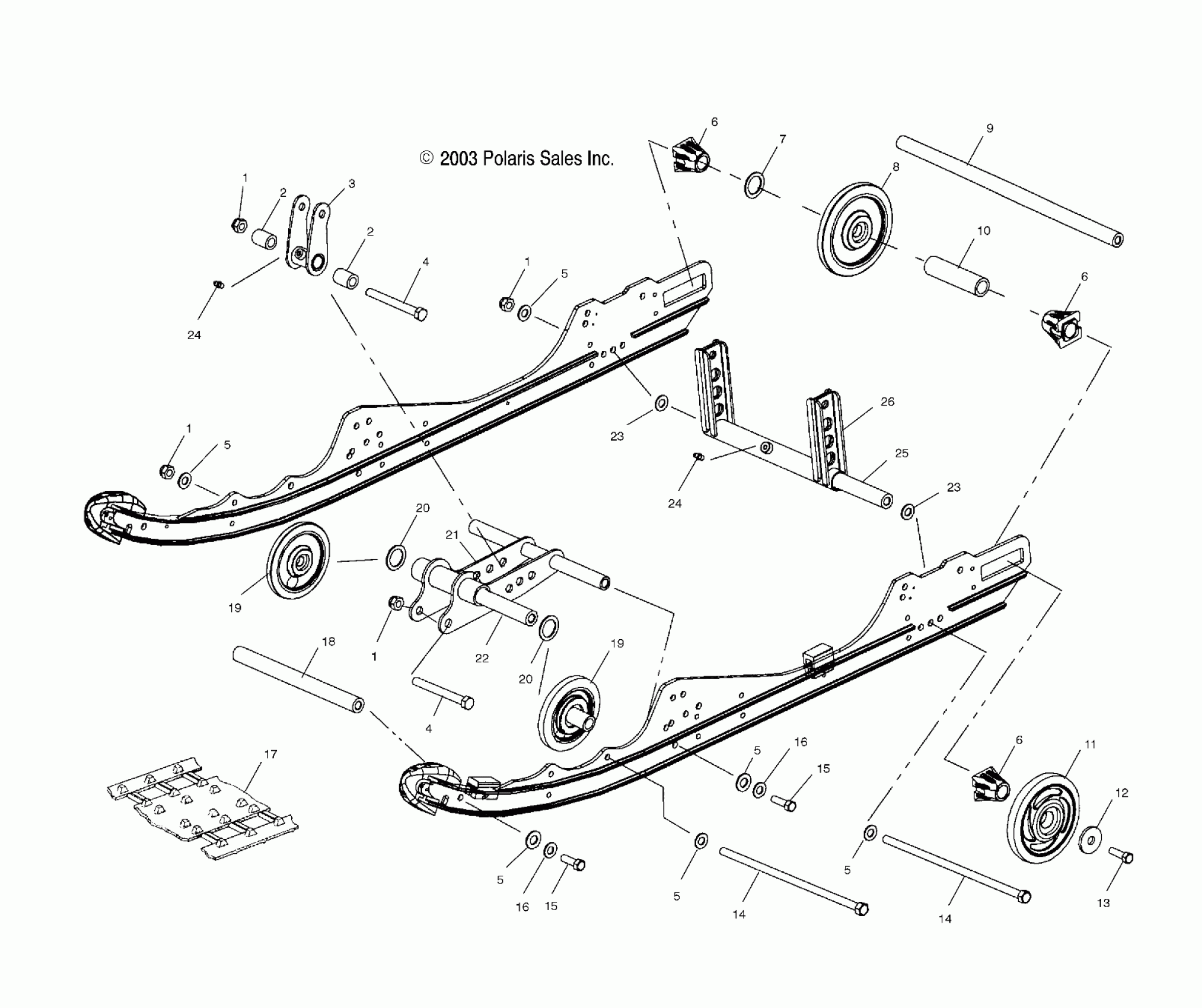

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS REAR SUSPENSION (EDGE) - S04NP5CS/A/B/C/S04NP6ES/A/B/C (4988618861B13) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

2

Bushing

5133233

$11.99

2

Bushing

5133233

$11.99

3

Arm, Pivot, Shock

1541477-067

$56.99

4

SCREW

7515417

$4.79

4

SCREW

7515417

$4.79

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

7

BUSHING

7555918

$1.59

8

Wheel

1594087

$72.84

9

SHAFT, IDLER

5020744

$59.99

10

SPACER-IDLER, LONG

5333285

$11.99

11

BEARING

3514384

$19.84

11

RING-RETAINING

7710444

$8.79

11

Asm., Idler Wheel, Bright Silver Metallic

1590303-244

Unavailable

12

WASHER, BELLE

7556130

$6.39

13

BOLT

7517731

$1.49

14

SCREW

7517921

$23.99

14

SCREW

7517921

$23.99

15

Screw

7517247

$3.19

15

Screw

7517247

$3.19

16

Washer, Spring Lock

7552603

$1.49

16

Washer, Spring Lock

7552603

$1.49

17

CLIP, GUIDE

5222840

Unavailable

17

Track [.91 Inch]

5412281

$583.99

17

Track [1.25 Inch]

5411963

$699.00

18

Shaft, Pivot Arm

5020723

$29.99

19

Asm., Wheel

1541485

$72.84

19

Asm., Wheel

1541485

$72.84

20

Bushing

7556301

$3.19

20

Bushing

7556301

$3.19

21

Mount, Shock

1541711-067

$109.99

22

Shaft

5132490

Unavailable

23

Washer, Flat

7555893

$1.49

23

Washer, Flat

7555893

$1.49

24

FITTING-LUBRICATION 1/4-28

7080424

$4.79

24

FITTING-LUBRICATION 1/4-28

7080424

$4.79

25

SHAFT

5333404

$24.27

26

Arm, Pivot, Rear

1541707-067

$32.95
