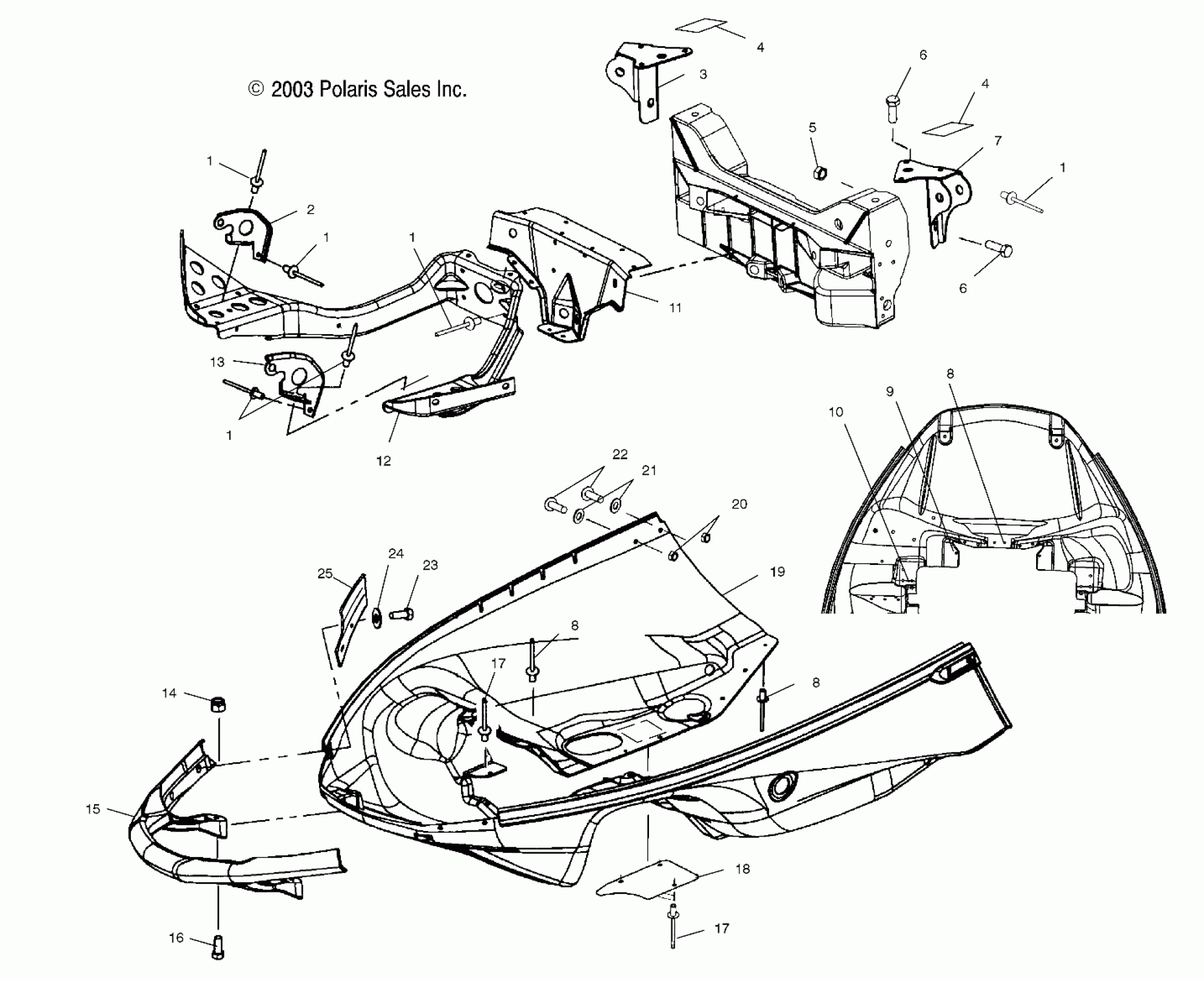

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS NOSEPAN - S04NP5CS/A/B/C/S04NE5CS/S04NP6ES/A/B/C/S04NE6ES (4988618861A09) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Hinge, Pivot, Lower, RH

5243992-067

$104.99

3

Mount, Shock, Upper, RH

5243978

$21.43

4

FOAM-SEAL,REAR COOLER

5810947

$4.03

4

FOAM-SEAL,REAR COOLER

5810947

$4.03

5

Nut, Flange

7547180

$2.39

6

SCREW

7517935

$2.39

6

SCREW

7517935

$2.39

7

Mount, Shock, Upper, LH

5243977

$32.95

8

RIVET

7621467

$1.49

8

RIVET

7621467

$1.49

8

RIVET

7621467

$1.49

9

RIVET

7621431

$1.49

10

Rivet

7661136

Unavailable

11

Bracket, Radius Rod Support

5244049-067

Unavailable

12

Brace, Pan, Lower

5244050

$137.60

13

Hinge, Pivot, Lower, LH

5243991-067

$104.99

14

NUT, NYLOK

7542153

$1.59

15

Bumper, Front, Black

5433518-070

$64.75

16

Bolt

7512163

$3.99

17

RIVET

7621472

$1.49

17

RIVET

7621472

$1.49

18

Shield, Heat

5245853

$11.59

19

Nosepan, Black

5434343-070

$445.22

19

Nosepan, Blue

5434343-341

$445.22

20

Nut, Nylok

7542122

$1.49

21

WASHER

7555827

$3.99

22

Screw

7515166

$3.19

23

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

24

WASHER, SPRING LOCK

7552801

$1.59

25

Guide, Hood, LH

5244888

Unavailable

25

Guide, Hood, RH

5244889

Unavailable
