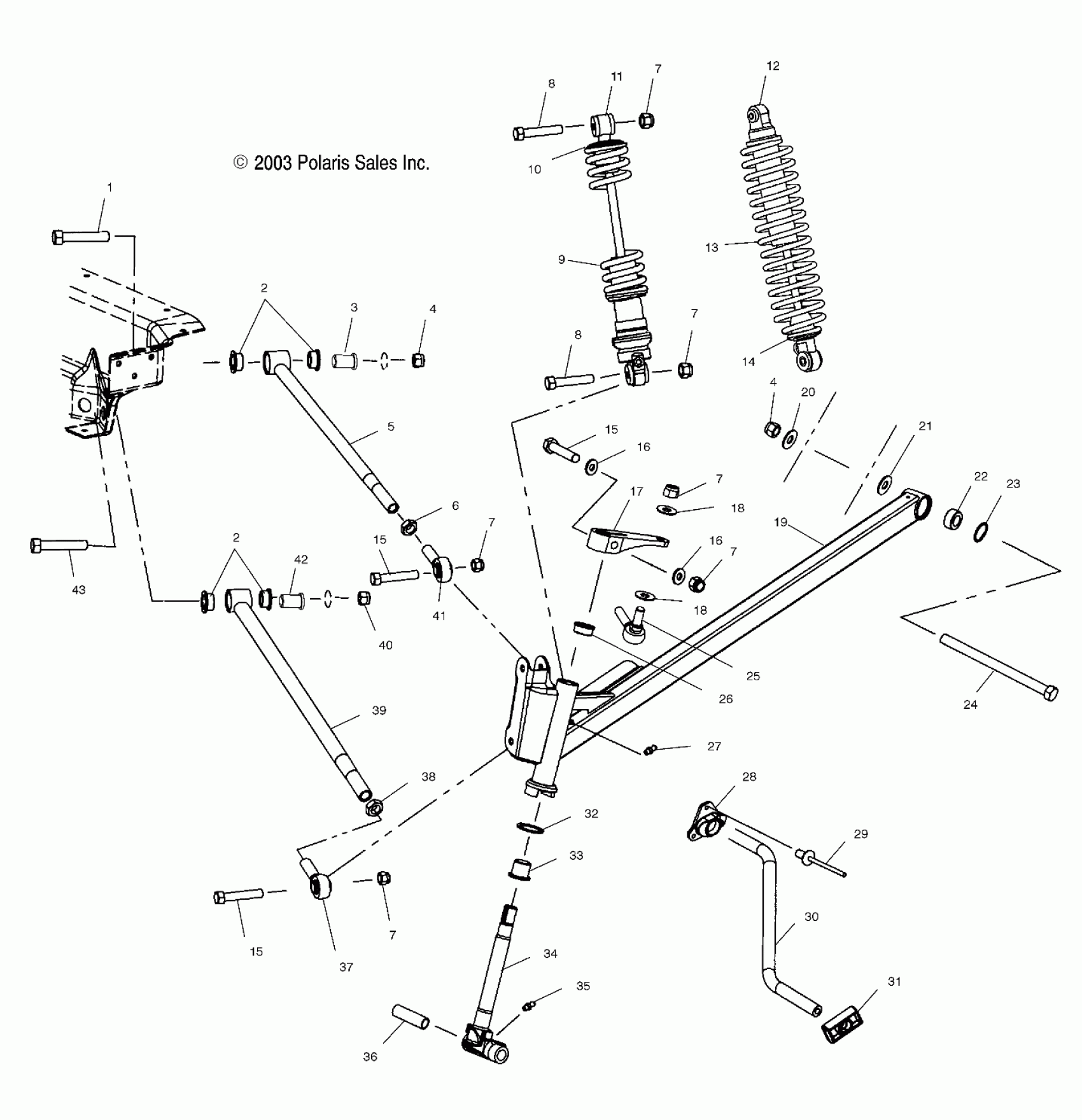

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS FRONT SUSPENSION - S04NP5CS/A/B/C/S04NE5CS/S04NP6ES/A/B/C/S04NE6ES (4988618861B03) Diagram

#

Description
Price

1

Bolt

7517980

$7.99

2

Bushing, Radius Rod, Pivot, Inner

5434036

$14.99

2

Bushing, Radius Rod, Pivot, Inner

5434036

$14.99

3

Bushing, Shoulder

5132779

$11.99

4

Nut, Nylok

7547066

$1.59

4

Nut, Nylok

7547066

$1.59

5

Rod, Radius, Upper, Black

1820679-067

$104.99

6

Nut, Jam

7542520

$2.39

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

8

Screw

7515433

$1.59

8

Screw

7515433

$1.59

9

Spring, Compression

7041950-133

Unavailable

10

Retainer, Spring, Slotted

5630580

Unavailable

11

Shock, IFS, IFP [Edge][M-10]

7041976

Unavailable

12

Shock, IFS, Compression Adjust [Edge]

7042211

Unavailable

13

Spring, Compression [Compression Adjust]

7042195-133

Unavailable

14

Retainer, Spring [Compression Adjust]

5020618

$24.99

15

SCREW

7517583

$4.35

15

SCREW

7517583

$4.35

15

SCREW

7517583

$4.35

16

WSHR-.813X.406X.105-Y

7555832

$2.39

16

WSHR-.813X.406X.105-Y

7555832

$2.39

17

Arm, Steering

5132728

$79.99

18

Washer, Flat

7555797

$3.99

18

Washer, Flat

7555797

$3.99

19

Asm., Trailing Arm, Silver, LH [Incl. 22,23]

1821165-385

Unavailable

19

Asm., Trailing Arm, Silver, RH [Incl. 22,23]

1821166-385

Unavailable

20

WASHER, FLAT

7555820

$3.99

21

Cup, Mount, Trailing Arm

5132364

$20.22

22

Bearing, Spherical

7061042

$31.99

23

Ring, Retaining

7710437

$3.19

24

Screw

7512099

$19.99

25

Rod End, RH

7061057

$48.56

26

Bushing

3573909

$2.39

27

Fitting, Lubrication

7080433

$1.49

28

Bushing, Torsion Bar

5433234

$23.99

29

Rivet

7621452

$1.49

30

Bar, Torsion

5244415-067

Unavailable

31

Slide, Torsion Bar

5434369

Unavailable

32

Bushing

7556509

$1.59

33

BUSHING, FLANGED

3574208

$3.19

34

Shaft, Spindle

6230225-067

$219.99

35

Fitting, Lubrication

7080306

$3.19

36

Bushing

5010158

$19.99

37

Rod End

7061060

$48.56

38

Nut, Jam

7542711

$2.39

39

Rod, Radius, Lower, Black

1820677-067

$104.99

40

Nut, Nylok

7547065

$3.99

41

Rod End

7061061

$48.56

42

Bushing, Shoulder

5132780

$7.99

43

Bolt

7512684

Unavailable
