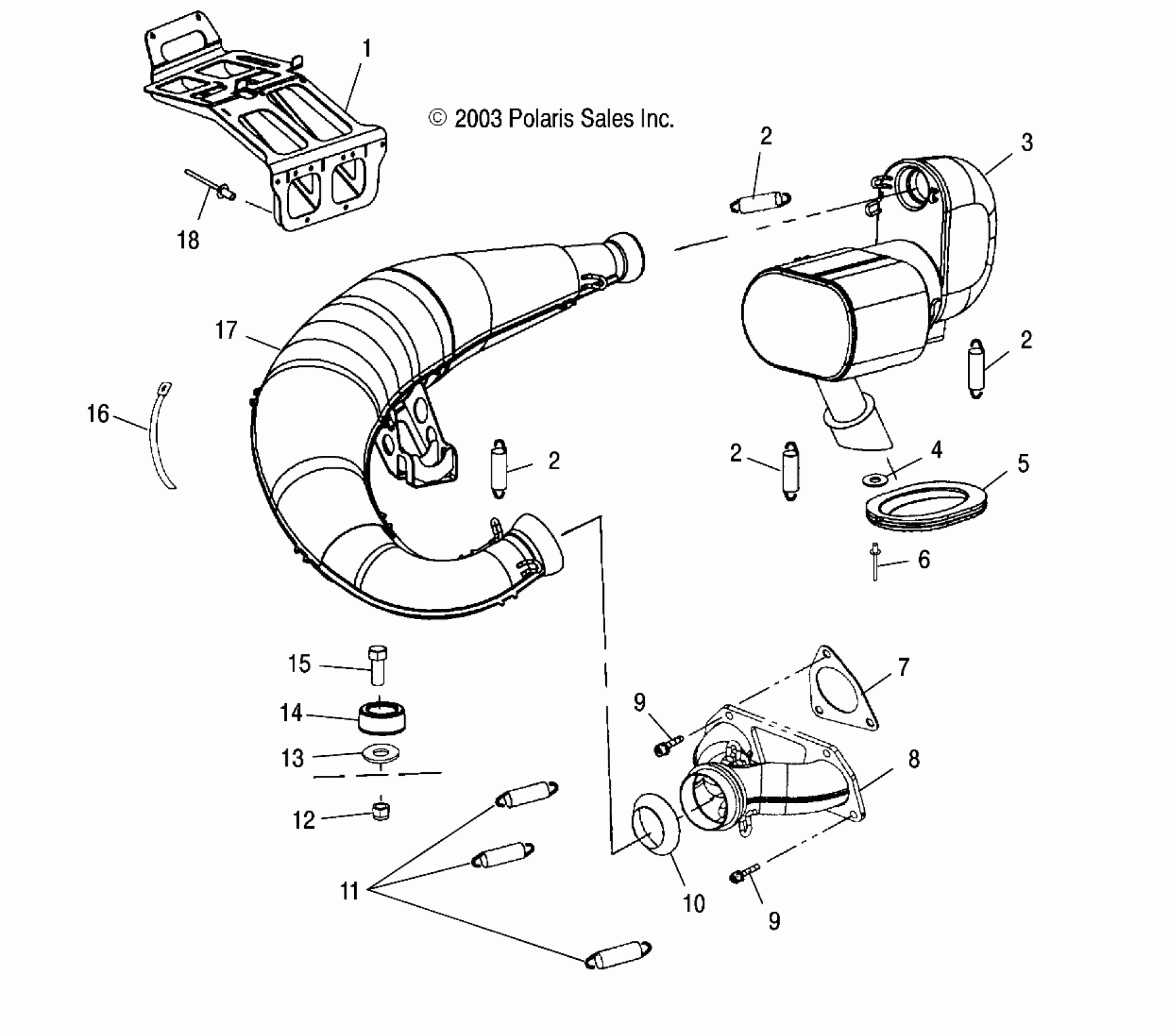

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS EXHAUST - S04NP5CS/A/B/C/S04NE5CS/S04NP6ES/A/B/C/S04NE6ES (4988618861D10) Diagram

#

Description
Price

1

Bracket, Chassis/Resonator

1261296-029

Unavailable

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

3

Resonator

1261130-029

$649.99

4

Washer

7555904

$1.49

5

Boot, Exhaust Outlet

5411684

Unavailable

6

RIVET

7621467

$1.49

7

Gasket, Exhaust

5811838

$8.89

8

Manifold

1261046-029

Unavailable

9

Screw

7517322

$2.39

9

Screw

7517322

$2.39

10

Seal, Exhaust

3610046

$36.41

11

Spring, Exhaust, S.S.

7042332

$4.84

12

Nut, Flange

7547180

$2.39

13

Washer [500 Only]

7555815

$3.99

14

Dampener, Vibration

5433576

$11.99

15

SCREW

7517935

$2.39

16

Clamp [.44 x 3.75][600]

7080812

$19.99

16

Clamp [.44 x 4.25][600]

7080813

$3.99

16

Clamp [.44 x 3.13][500]

7080739

$10.63

16

Clamp [.44 x 3.69][500]

7080740

$13.19

16

Clamp [.44 x 4.25][500]

7080741

$19.99

16

Clamp [.44 x 6.38][500]

7080742

$15.03

16

Clamp [.44 x 6.50][600]

7080811

$11.99

17

Asm., Tuned Pipe [Incl. Covers][500]

1261064

Unavailable

17

Pipe, Tuned [500]

1261050-029

Unavailable

17

Cover, Tuned Pipe, Top [500]

5243608

Unavailable

17

Cover, Tuned Pipe, Bottom [500]

5243609

Unavailable

17

Matte, Sound, Top [500]

5830176

Unavailable

17

Matte, Sound, Bottom [500]

5830177

Unavailable

17

Asm., Tuned Pipe [600]

1261007

Unavailable

17

Pipe, Tuned [600]

1261048-029

$504.99

17

Cover, Tuned Pipe, Top [600]

5244398

Unavailable

17

Cover, Tuned Pipe, Bottom [600]

5244399

Unavailable

17

Matte, Sound [600]

5830198

Unavailable

17

Matte, Sound, Top [600]

5830207

$12.39

18

RIVET-3/16-.090-.290

7661637

$1.49
