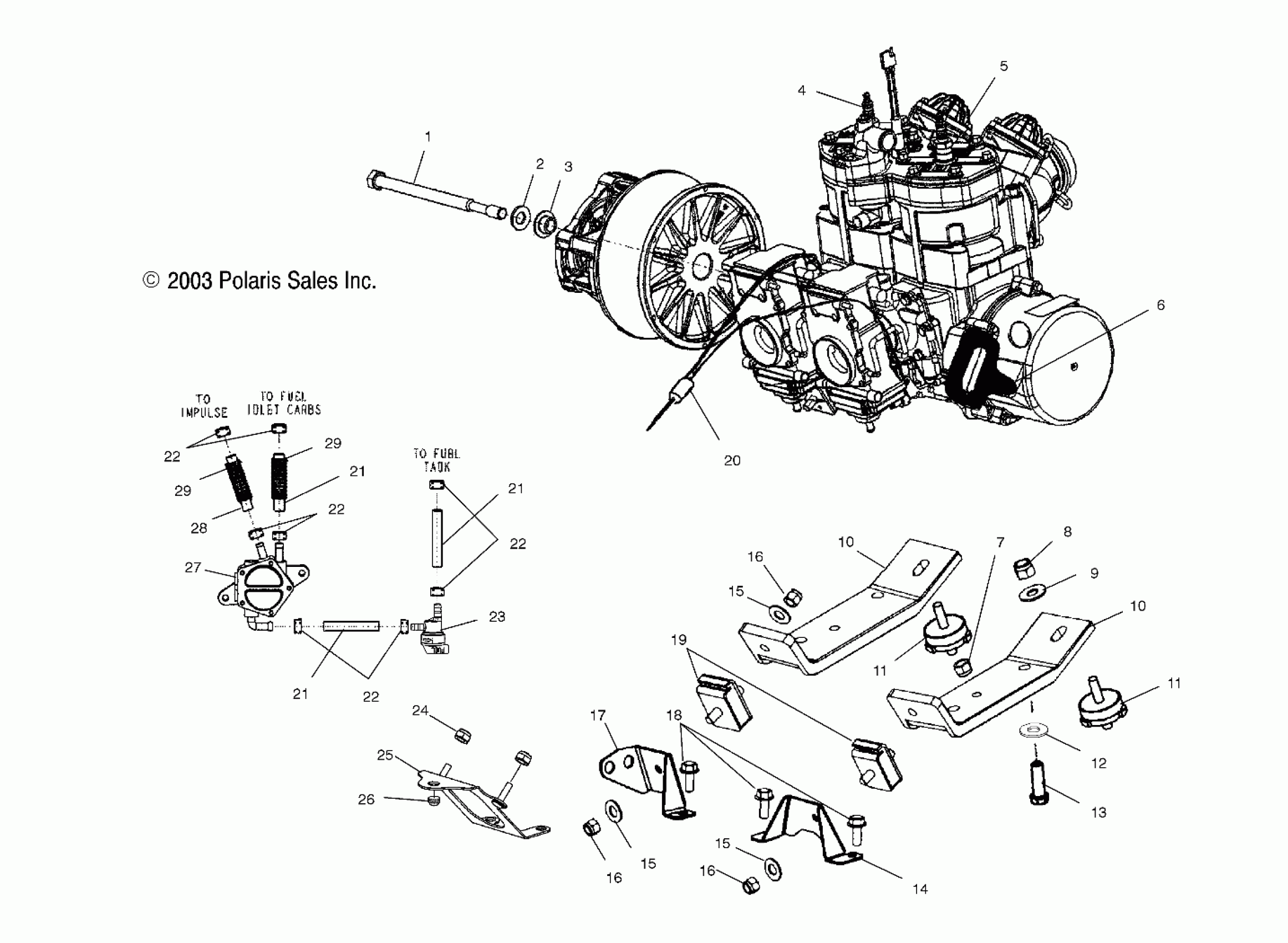

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS ENGINE MOUNTING - S04NP5CS/A/B/C/S04NE5CS/S04NP6ES/A/B/C/S04NE6ES (4988618861D11) Diagram

#

Description
Price

1

Screw

7517501

Unavailable

2

WASHER

7556003

$6.39

3

WASHER-CLUTCH RET,M14

5132441

$23.99

4

Spark Plug, RN57YCC, Champion

3070190

$3.99

5

Kit, Short Block S504404 XCSP [500] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is re

2202516

Unavailable

5

Kit, Short Block S604404 XCSP [600] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is re

2202515

Unavailable

6

Handle, Recoil

5431499-070

$15.48

7

NUT, FLANGED

7547180

$2.39

8

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

9

Washer, Flat

7555893

$1.49

10

Strap, Engine Mount, LH

5245465

$74.39

10

Strap, Engine Mount, RH

5246382

$257.99

10

Strap, Engine Mount, LH

5245465

$74.39

10

Strap, Engine Mount, RH

5246382

$257.99

11

Mount, Engine

3021220

Unavailable

11

Mount, Engine

3021220

Unavailable

12

Washer, Spring Lock

7553101

$3.99

13

Screw

7512539

$3.99

14

Bracket, Engine Mount, RH

5245044

Unavailable

15

Washer, Flat

7555806

$1.49

15

Washer, Flat

7555806

$1.49

15

Washer, Flat

7555806

$1.49

16

NUT, FLEXLOC

7547008

$6.39

16

NUT, FLEXLOC

7547008

$6.39

16

NUT, FLEXLOC

7547008

$6.39

17

Bracket, Engine Mount, LH

1013397

$24.27

18

Screw

7517854

$5.59

19

Mount, Engine

3021206

$60.70

20

Cable, Throttle

7080867

$36.79

21

Line, Fuel

8350017-600

Unavailable

21

Line, Fuel

8350017-600

Unavailable

21

Line, Fuel

8350017-600

Unavailable

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

23

Valve, Fuel, Plastic

1253424

$44.99

24

Nut, Nylok

7542122

$1.49

25

Bracket, Fuel Pump

1014392

$12.39

26

Plug

5410012

Unavailable

27

Pump, Fuel

2520275

$111.99

28

Line, Fuel

8450040-600

Unavailable

29

TUBING, CONVOLUTED

8360052-305

Unavailable

29

TUBING, CONVOLUTED

8360052-305

Unavailable
