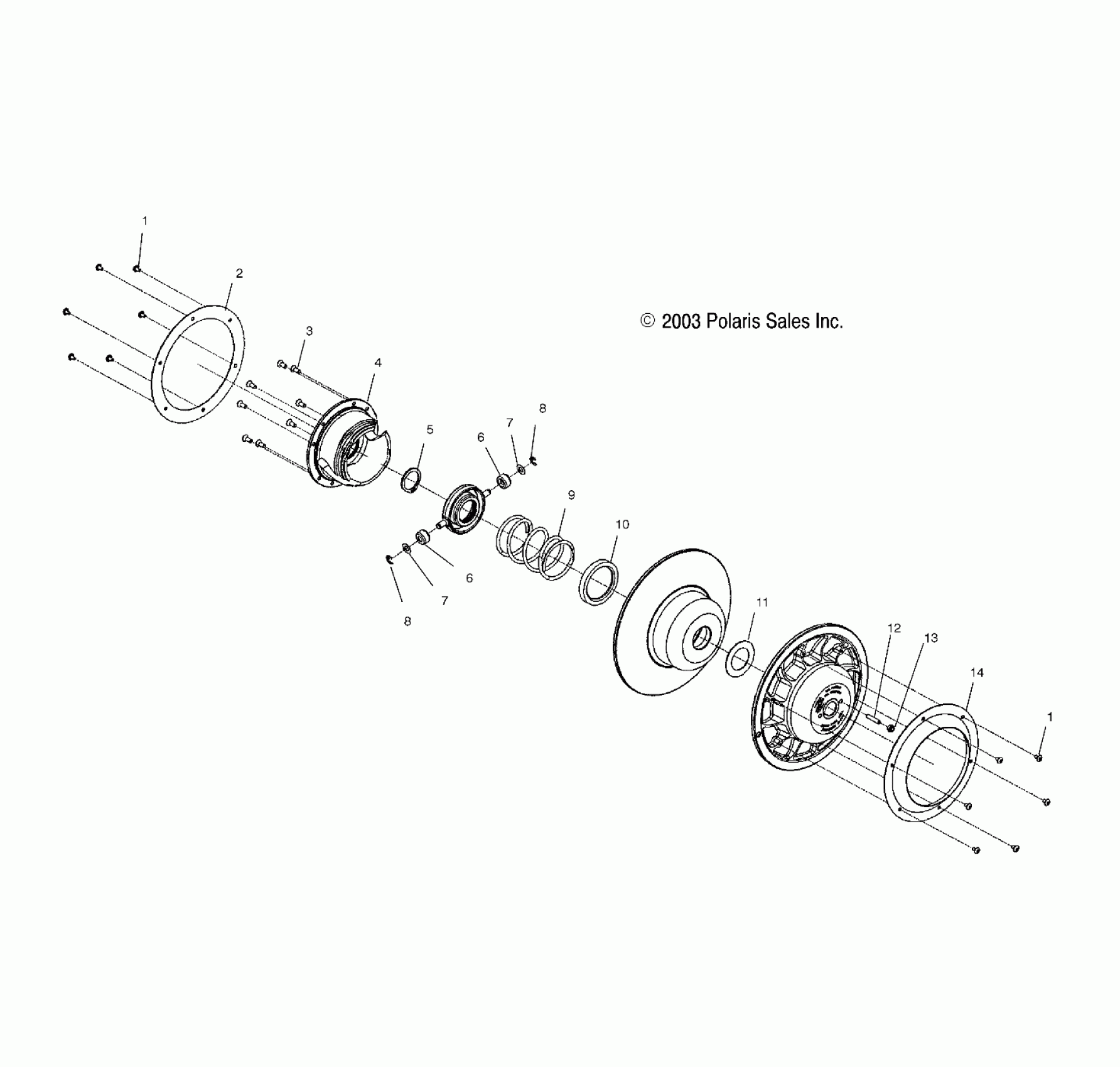

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS DRIVEN CLUTCH - S04NP5CS/A/B/C/S04NE5CS/S04NP6ES/A/B/C/S04NE6ES (4988618861D06) Diagram

Asm., Driven Clutch, 216 [Incl. 1,3,5-8,10-13]

1322433

Unavailable

Screw

7518023

$4.03

Screw

7518023

$4.03

Plate, Windage

5246216

$20.48

Screw

3233996

Unavailable

Ramp, Driven (500)(If built before 10/21/03)

5134132

Unavailable

Ramp, Driven [600]

5134132

Unavailable

Ramp, Driven (500)(If built after 10/21/03)

5134095

Unavailable

RING, RETAINING

7710522

$13.59

ROLLER

5434534

$48.56

ROLLER

5434534

$48.56

WASHER, THRUST

7556226

$5.65

WASHER, THRUST

7556226

$5.65

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

Spring, Driven Clutch, LH, Black (500)(If built before 10/21/03)

7043063

$56.65

Spring, Driven Clutch, LH, Black/Red (500)(If built after 10/21/03)

7043058

$56.65

Spring, Driven Clutch, LH (Red/Blue)[600]

7043057

$48.56

WASHER, THRUST

7556227

$23.99

Spacer

3234033

Unavailable

Screw

7518024

Unavailable

Nut, FLEXLOC

7542103

$5.59

Plate, Windage

5246217

Unavailable
