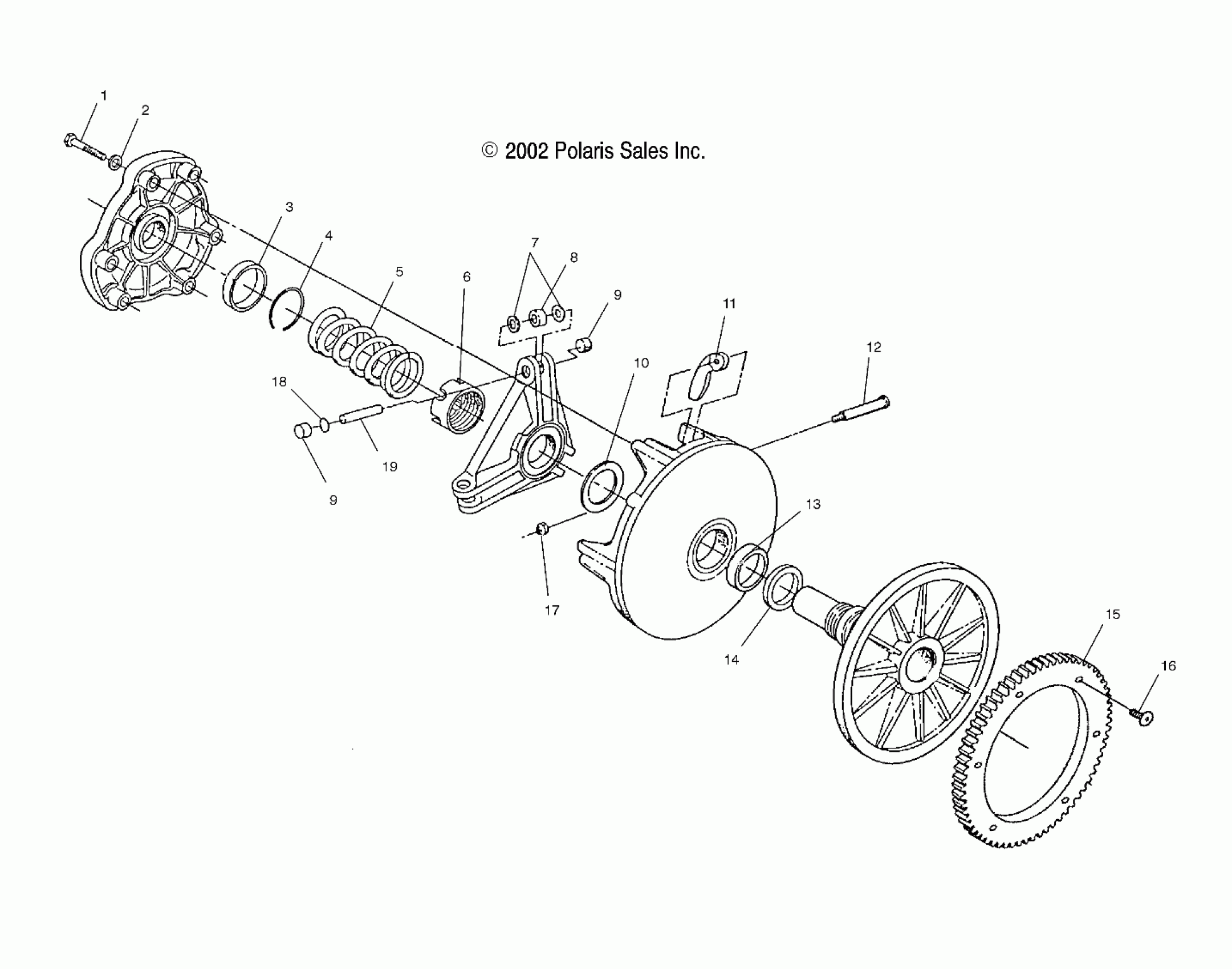

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS DRIVE CLUTCH (ELECTRIC START MODELS) - S04NP5CS/A/B/C/S04NE5CS/S04NP6ES/A/B/C/S04NE6ES (4988618861D05) Diagram

#

Description
Price

-

Asm., Drive Clutch ES Basic 118 [Incl. All Less 5,11]

1321932

Unavailable

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING, COVER

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

Spring, Clutch, Black/Green [500]

7042083

$56.65

5

Spring, Clutch, Dark Blue/White [600]

7041781

$56.65

6

NUT-JAM

5020425

$23.99

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

BUTTON, GUIDE

5430445

$6.39

9

BUTTON, GUIDE

5430445

$6.39

10

Spacer [.050]

5210754

Unavailable

10

Spacer [.025]

5242981

Unavailable

10

Spacer [.020]

5210752

Unavailable

10

Spacer [.032]

5210753

Unavailable

10

Spacer [.130]

5132542

Unavailable

11

Asm., Weight/Bushing [10-56][500]

1321684

$59.99

11

Asm., Weight/Bushing [10-58][600]

1321588

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

Bearing, Sleeve

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

Gear, Ring

5131062

Unavailable

16

SCREW

7515351

$3.99

17

NUT, FLEXLOC

7541906

$3.19

18

Kit - Shim, Drive Clutch

2200387

$24.27

19

PIN, ROLLER

5133079

$6.39
