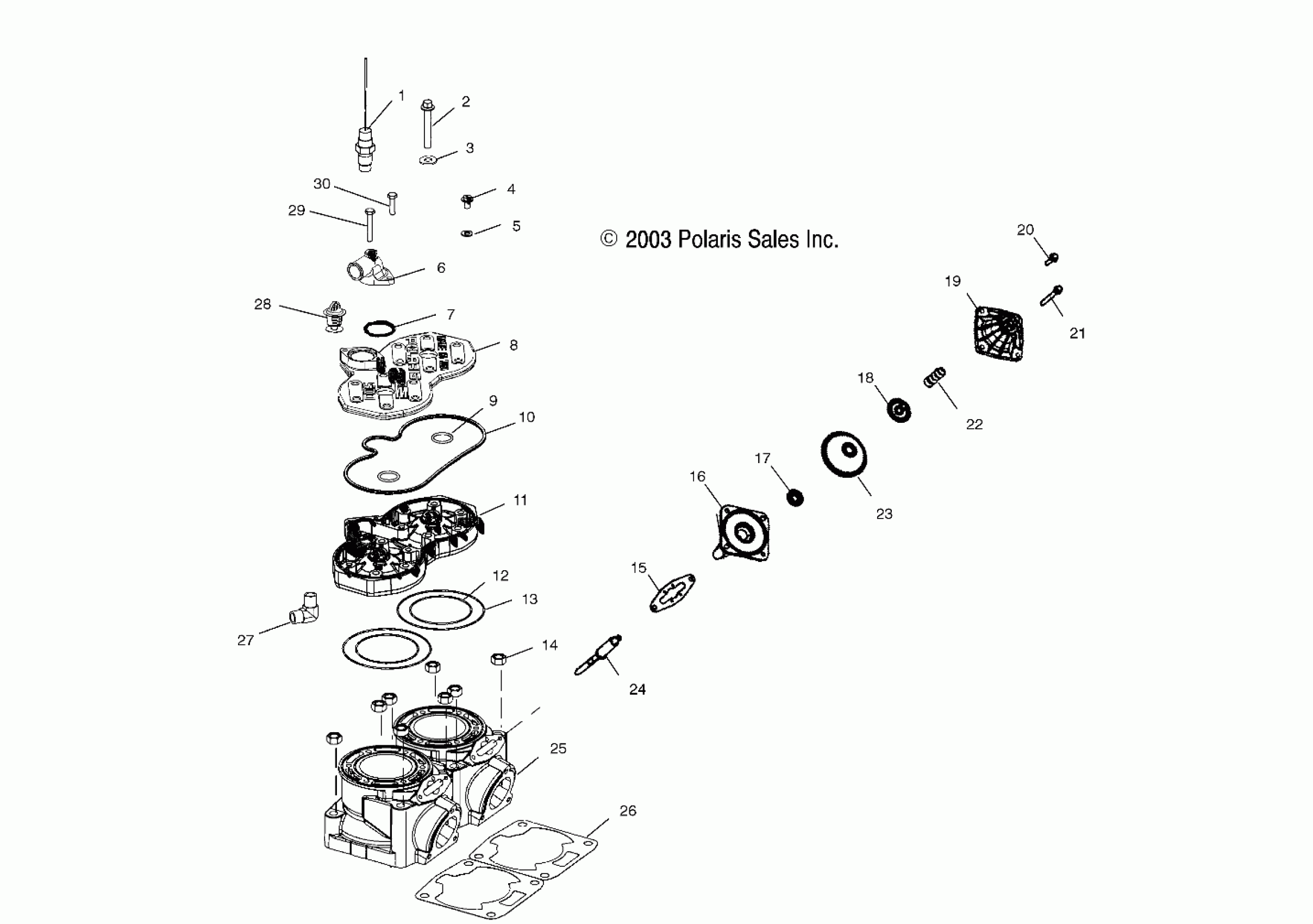

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS CYLINDER - S04NP5CS/A/B/C/S04NE5CS/S04NP6ES/A/B/C/S04NE6ES (4988618861D13) Diagram

#

Description
Price

1

Sensor, Thermistor

4010398

$36.41

2

Screw [500]

7517281

$8.99

2

Screw [600]

7517533

$4.79

3

Washer [500]

7556082

$7.19

4

SCREW

7517679

$13.59

5

WASHER, FLAT

7555998

$1.49

6

Cover, Thermostat

5631391

Unavailable

7

O-Ring

5411521

$24.19

8

Cover, Head [500]

5631424-329

$133.32

8

Cover, Head [600]

5631425-366

Unavailable

9

O-RING

5411411

$1.49

10

Seal, Rubber Head Cover

5411465

$32.37

11

Head, Cylinder [500]

3021453

$236.17

11

Head, Cylinder [600]

3021322

Unavailable

12

O-Ring [600]

5410932

$20.22

12

O-Ring [500]

5411199

$10.51

13

O-RING

5411359

$15.99

14

NUT

7547013

$1.99

15

Gasket

5812350

$6.46

16

Base, Exhaust Valve

1202216

Unavailable

17

Washer

5132950

Unavailable

18

Cap/Nut

5631381

$33.87

19

ASM., HOUSING W/BUSHING

1202640

$15.99

20

SCREW

7516820

$5.59

21

SCREW

7517932

$3.99

22

Spring, Compression [600]

7041786-08

Unavailable

22

Spring, Compression [500]

7041786-11

Unavailable

23

Bellows

5412399

$44.51

24

Valve, Guillotine [500]

5133379

$144.99

24

Valve, Guillotine [600]

5133380

Unavailable

25

Cylinder [500]

3021334

$669.99

25

Cylinder [600]

3021333

$531.75

26

Gasket, Cylinder Base [500]

5812494

$24.99

26

Gasket, Cylinder Base [600]

5811916

$24.99

27

Fitting

7052234

$39.99

28

Thermostat

7052258

$48.56

29

Screw [500]

7517950

$5.59

29

Screw [600]

7516818

$5.59

30

SCREW

7516822

$2.39
