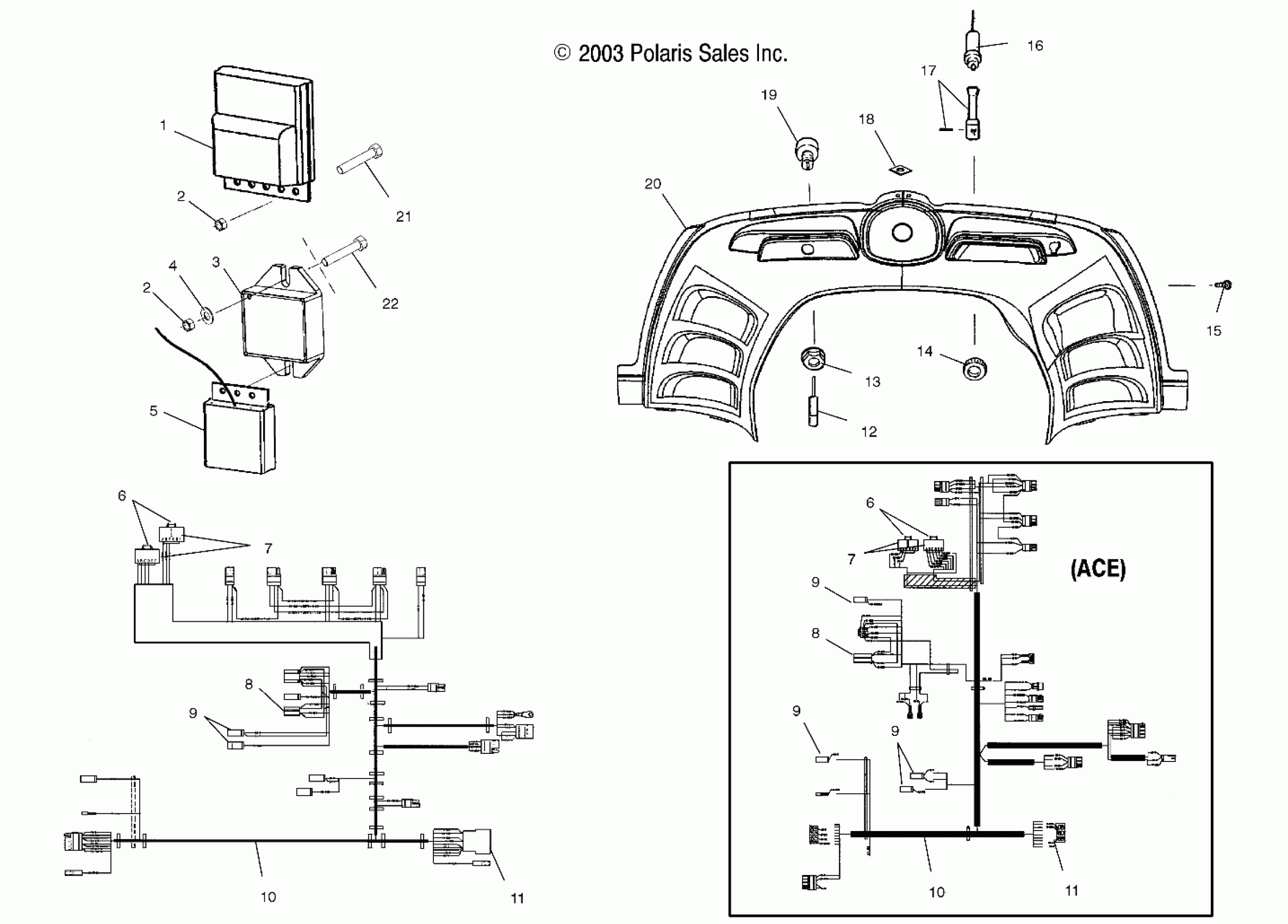

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS CONSOLE - S04NP5CS/A/B/C/S04NE5CS/S04NP6ES/A/B/C/S04NE6ES (4988618861B02) Diagram

#

Description
Price

1

Controller, M-10, ACE, Electric

4010597

$304.75

2

Nut, Nylok

7541925

$1.49

2

Nut, Nylok

7541925

$1.49

3

Regulator, AC/DC 14.3V [Electric Start]

4010794

$116.17

3

Regulator, 14.3V [Manual Start]

4010793

$101.17

4

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

5

Regulator, Rectifier [M-10 ACE]

4010730

$70.39

6

Housing, Connector

4010193

$8.79

6

Housing, Connector

4010193

$8.79

7

Socket

4010192

Unavailable

7

Socket

4010192

Unavailable

8

HOUSING

4020063

$3.19

8

HOUSING

4020063

$3.19

9

Housing, 1 Circuit

4020153

Unavailable

9

Housing, 1 Circuit

4020153

Unavailable

9

Housing, 1 Circuit

4020153

Unavailable

9

Housing, 1 Circuit

4020153

Unavailable

10

Harness, Main

2461146

Unavailable

10

Harness, Main [M-10 ACE]

2461149

$255.99

10

Harness, Main

2461146

Unavailable

10

Harness, Main [M-10 ACE]

2461149

$255.99

11

Housing

4020057

$3.51

11

Housing

4020057

$3.51

12

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

13

Nut, Ignition

7547035

$8.79

14

Nut, Choke

5432944

$8.79

15

Screw

7515199

$1.49

16

Cable, Choke [Incl. 14,17]

7080946

$89.03

17

Lever, Choke [Incl. Pin]

5432943

Unavailable

18

CLIP-PLASTIC DART, NYLON

7670088

$1.59

19

Kit, Ignition Switch

2201614

$89.03

20

Console

5434134

Unavailable

21

Screw

7512050

$3.99

22

Screw [Manual Start]

7512031

$2.23

22

Screw [Electric Start]

7517263

Unavailable
