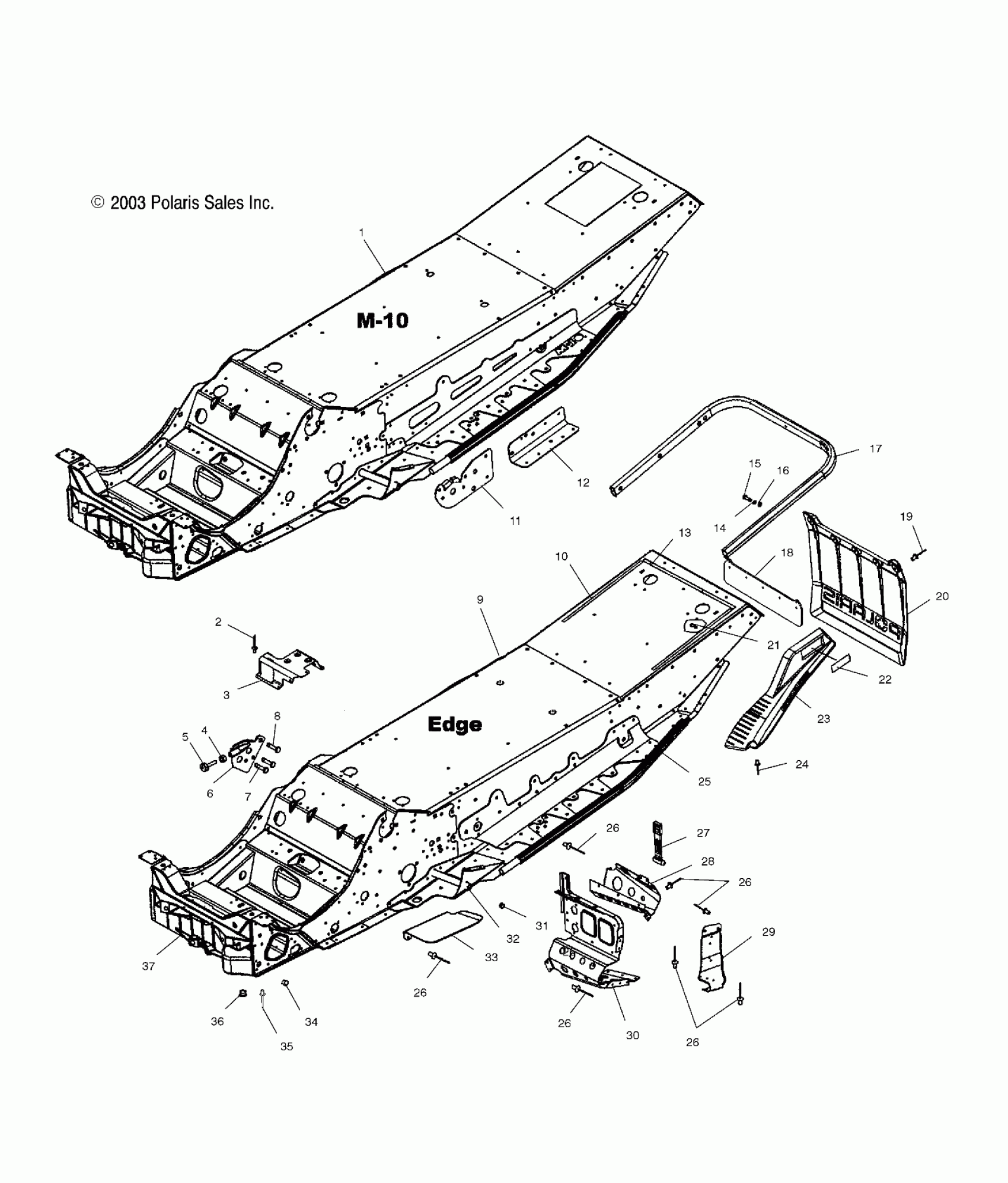

Polaris 500/600 XC SP EDGE/M-10 - S04NP5CS CHASSIS - S04NP5CS/A/B/C/S04NE5CS/S04NP6ES/A/B/C/S04NE6ES (4988618861A03) Diagram

#

Description
Price

1

Asm., Chassis, M-10 [Incl. 32,37]

1014075-1156

Unavailable

2

Rivet

7621432

$1.49

3

Bracket, Oil Tank/Hose Support

5246330

$13.19

4

NUT

7542404

$1.59

5

Stop, Torque

3021104

$20.22

6

Stop, Torque

1013379

Unavailable

7

Screw

7517854

$5.59

8

SCREW

7517632

$5.59

9

Asm., Chassis, Edge [Incl. 32,37]

1014067-1156

$1,209.99

10

Gasket, Seat Base

5812290

$1.49

11

Pad, Suspension, Front, LH [M-10]

5244999-067

Unavailable

11

Pad, Suspension, Front, RH [M-10]

5245001-067

$24.27

12

Brace, Tunnel, Lower, LH [M-10]

5244997-067

$19.83

12

Brace, Tunnel, Lower, RH [M-10]

5244998-067

$19.83

13

Seal, Seat, Rear

5812525

Unavailable

13

Gasket, Seat Base

5812360

$1.83

14

WASHER, SPRING LOCK

7552801

$1.59

15

SCREW

7512232

$1.49

16

Washer, Flat

7558301

$1.49

17

Bumper, Rear, Unpainted

2632165-309

Unavailable

18

Backer, Snow Flap

5812430

Unavailable

19

RIVET

7621418

$1.49

20

Flap, Snow, Edge, Black w/Chrome

5434847-1106

$139.99

21

Screw

7517441

$2.39

22

Reflector, Red

2670133

$5.75

23

Skirt, Snow, LH

2632443-070

$64.75

23

Skirt, Snow, RH

2632444-070

$55.99

24

RIVET

7621472

$1.49

25

Grip, Tunnel Roll, LH

5133971-067

$45.59

25

Grip, Tunnel Roll, RH

5133972-067

$45.59

26

RIVET-3/16-.090-.290

7661637

$1.49

26

RIVET-3/16-.090-.290

7661637

$1.49

26

RIVET-3/16-.090-.290

7661637

$1.49

26

RIVET-3/16-.090-.290

7661637

$1.49

26

RIVET-3/16-.090-.290

7661637

$1.49

27

STRAP-AIRBOX TOP

5433150

$24.27

28

Mount, Console, Toe Clip, LH

5245457-067

Unavailable

28

Mount, Console, Toe Clip, RH

5245458-067

Unavailable

29

Support, Footrest, LH

5246310-067

$19.68

29

Support, Footrest, RH

5246311-067

Unavailable

30

Footrest, LH

5245288-067

Unavailable

30

Footrest, RH

5247205-067

Unavailable

31

Plug, Barbed [M-10]

7081085

$7.27

31

Grommet, M-10 ACE

5412276

$3.19

32

Kit, Trailing Arm Mount, LH

2202059

$213.00

32

Kit, Trailing Arm Mount, RH

2202598

$124.99

33

Guard, Belt

5246066

Unavailable

34

PLUG, HOLE

7080416

$5.65

35

Rivet

7661130

$1.49

36

Plug, Hole

7081076

$3.22

37

Bulkhead, Front

5132292

$115.99
