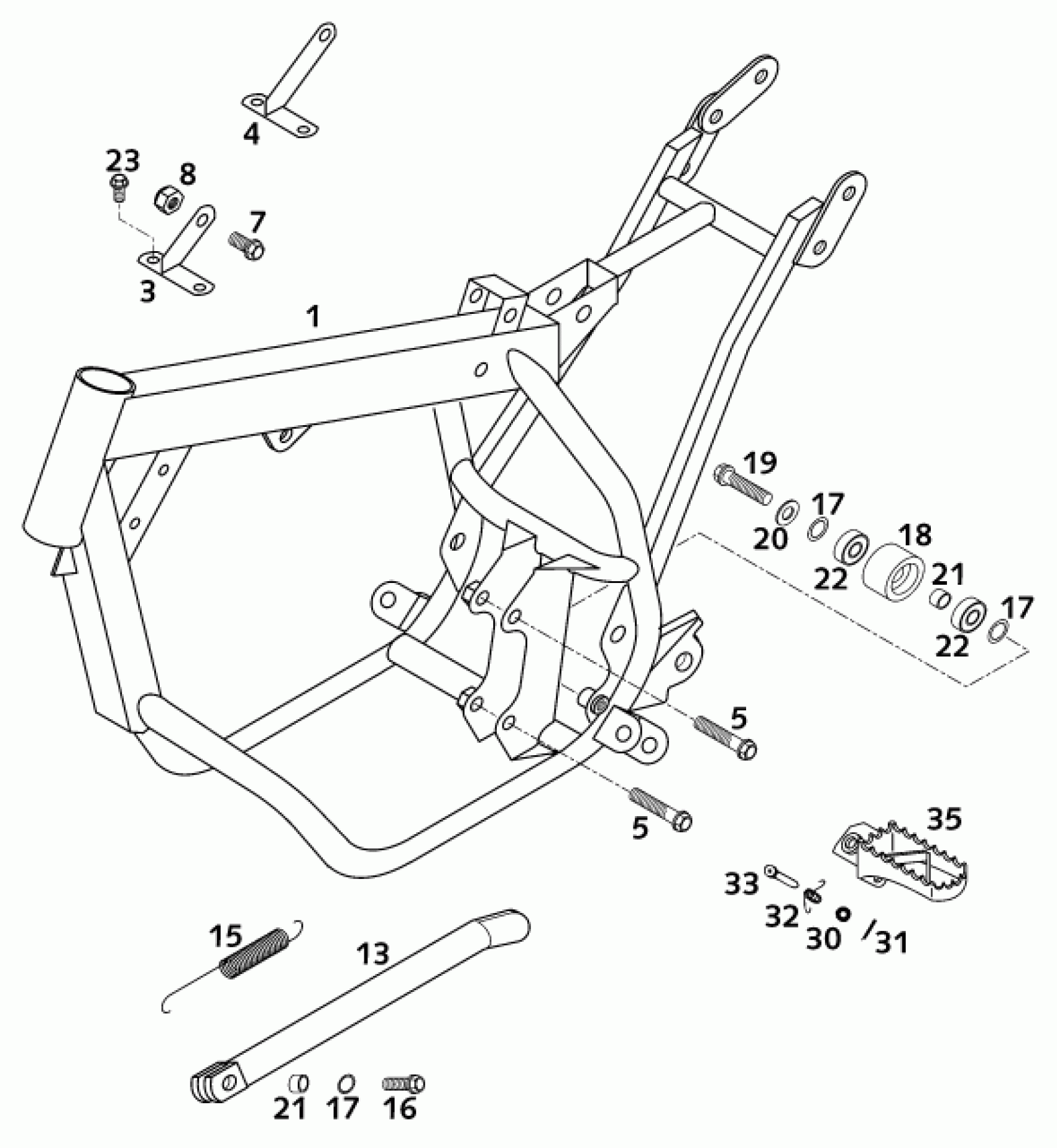

KTM 50 SX SENIOR 2001 FRAME Diagram

#

Description
Price

0

FOOT REST R/S SILVER '98

5460314000090

$34.59

1

FRAME PRO SENIOR SILVER '99

45003001500

Unavailable

4

* ENGINE BRACKET PRO SENIOR

45003005200

Unavailable

5

HH COLLAR SCREW M 8X40 WS=10

0015080403

$4.11

7

HH COLLAR SCREW M 8X16 WS=10

0015080163

$4.11

8

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.05

13

SIDE STAND L=290MM SILVER '99

4500302300090

$37.76

15

SIDESTAND SPRING LONG

51003021000

$7.00

16

HH SCREW DIN0933-M 8X20

0933080203

$5.32

17

LOCK WASHER 8MM

36003014000

$2.05

18

CHAIN ROLL D=30MM

50203053000

$6.72

19

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

21

BUSHING 8.2 X 12 X 6

74003021000

$3.08

22

Grooved ball bearing 608 2RS C

0625006087

$21.40

23

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

31

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

32

FOOTREST SPRING L/S & R/S

54603041000

$5.23

33

BOLT FOR FOOTREST 9,8 X 50

54603044000

$12.43

35

FOOT REST L/S SILVER

5460304000090

$31.12
