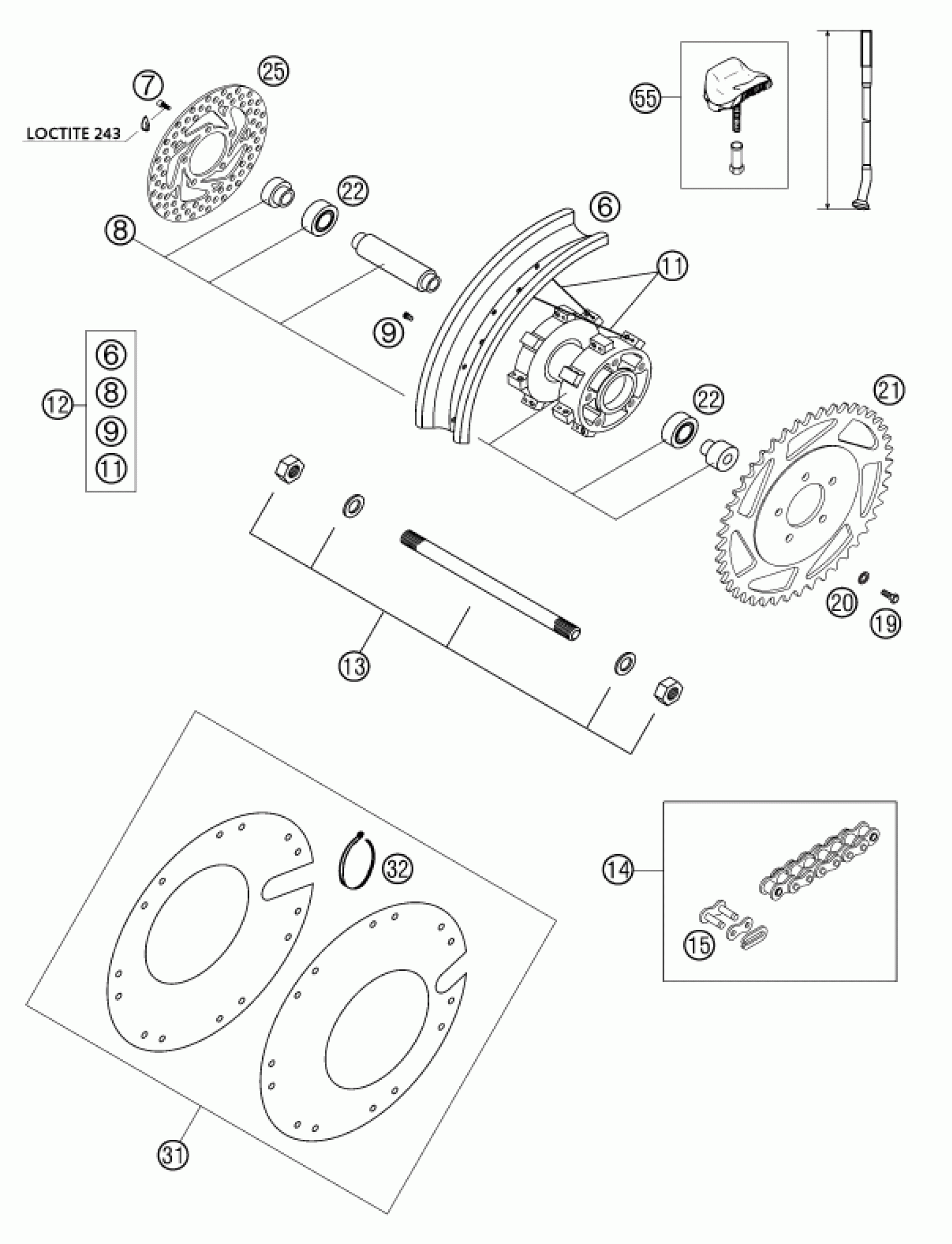

KTM 50 SX PRO SENIOR LC 2004 REAR WHEEL Diagram

#

Description
Price

6

RIM REAR 1,6X10'' ALU

45110070000

$125.78

7

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

8

REAR WHEEL HUB CPL. 2004

45110010144

$211.24

9

SPOKE NIPPLE 3MM

45109072000

$2.05

11

SPOKE 3X110X12 13° 2004

45110071110

$3.08

12

RR WHEEL-SP CPL. 1,60X10''ALU

45110001544

$299.55

13

AXLE REAR CPL. SEN.''LC''

45110081000

$41.69

14

RACING CHAIN 1/2X3/16'' 50 SX

45110265104

$40.79

15

CONNECTING LINK 1/2X3/16'' 90R

45110266000

$4.24

19

HH COLLAR SCREW M 7X20 WS=11

0015070203

$3.08

20

SHIM

45110052000

$1.49

21

SPROCKET 42-T 2004

45110051042

Unavailable

21

SPROCKET 43-T 2004

45110051043

Unavailable

21

SPROCKET 44-T 2004

45110051044

$65.63

21

SPROCKET 45-T 2004

45110051045

Unavailable

21

SPROCKET 46-T 2004

45110051046

Unavailable

22

BALL BEARING 6202 2RS1 C3

0625062027

$14.11

25

BRAKE DISC REAR D=140MM 2004

45110060000

$70.86

31

WHEEL COVER CPL. 50SX LC 03

45110092000

$71.19

32

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

55

Rim lock 2004

45110090000

$31.03
