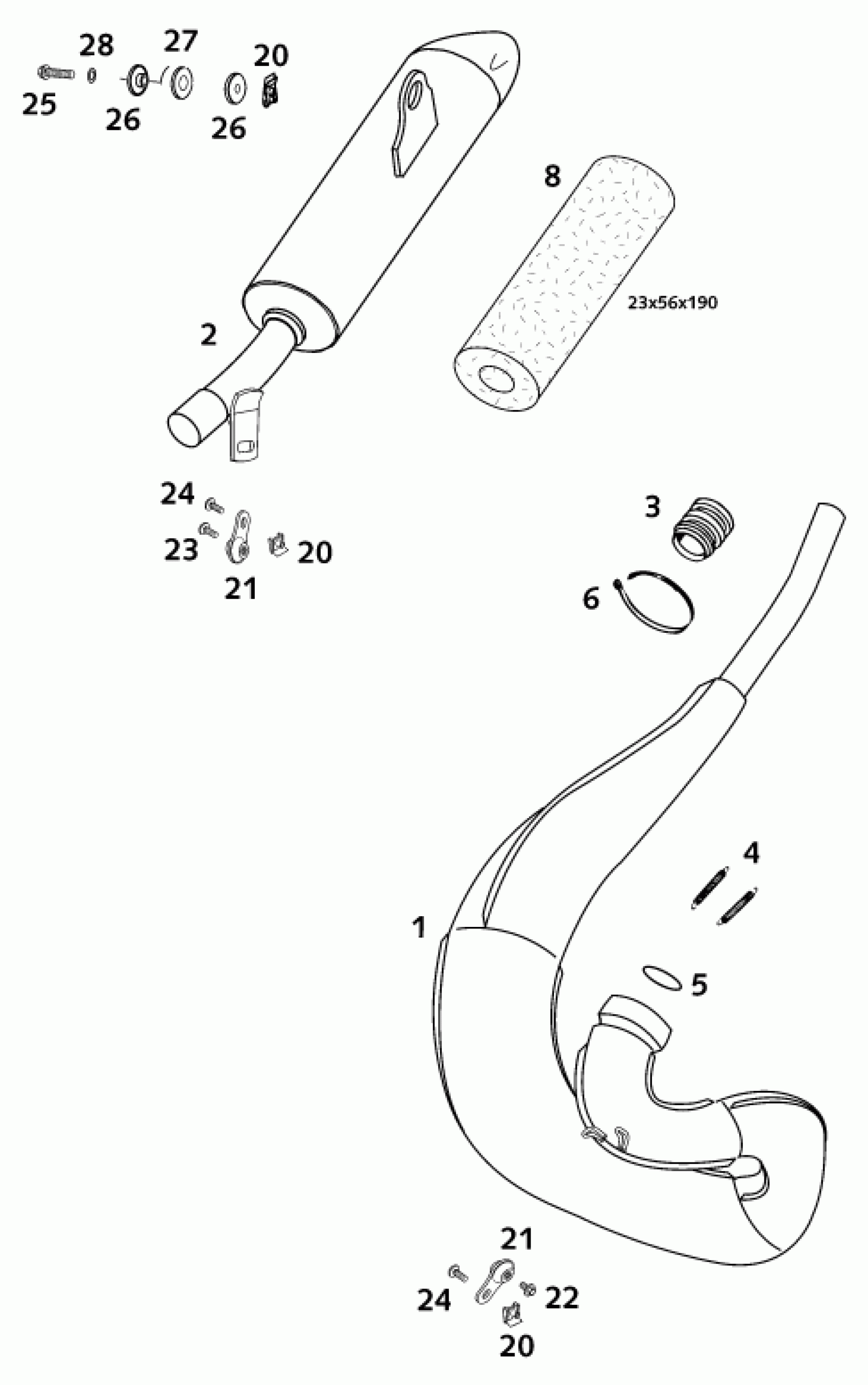

KTM 50 SX PRO SENIOR LC 2001 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST PIPE SX JUN/SEN 2001

45105007000

$284.42

2

SILENCER SX SENIOR 2001

45105079000

$194.94

3

RUBBER SLEEVE D=21MM/23MM '93

54605057000

$20.66

4

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

5

O-RING 32,00X3,00 VITON

0770320030

$4.11

6

Cable tie 200/4.6mm black

44011076200

$1.49

8

STUFFING YARN LOOSE 300 GRAMM

58005079056

$97.80

20

clip nut M6

54603048100

$4.11

21

Silent block for exhaust pipe

50305012000

$19.91

22

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

23

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

24

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

25

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

26

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

27

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

28

SPRING WASHER DIN0137-B 6

0137060000

Unavailable
