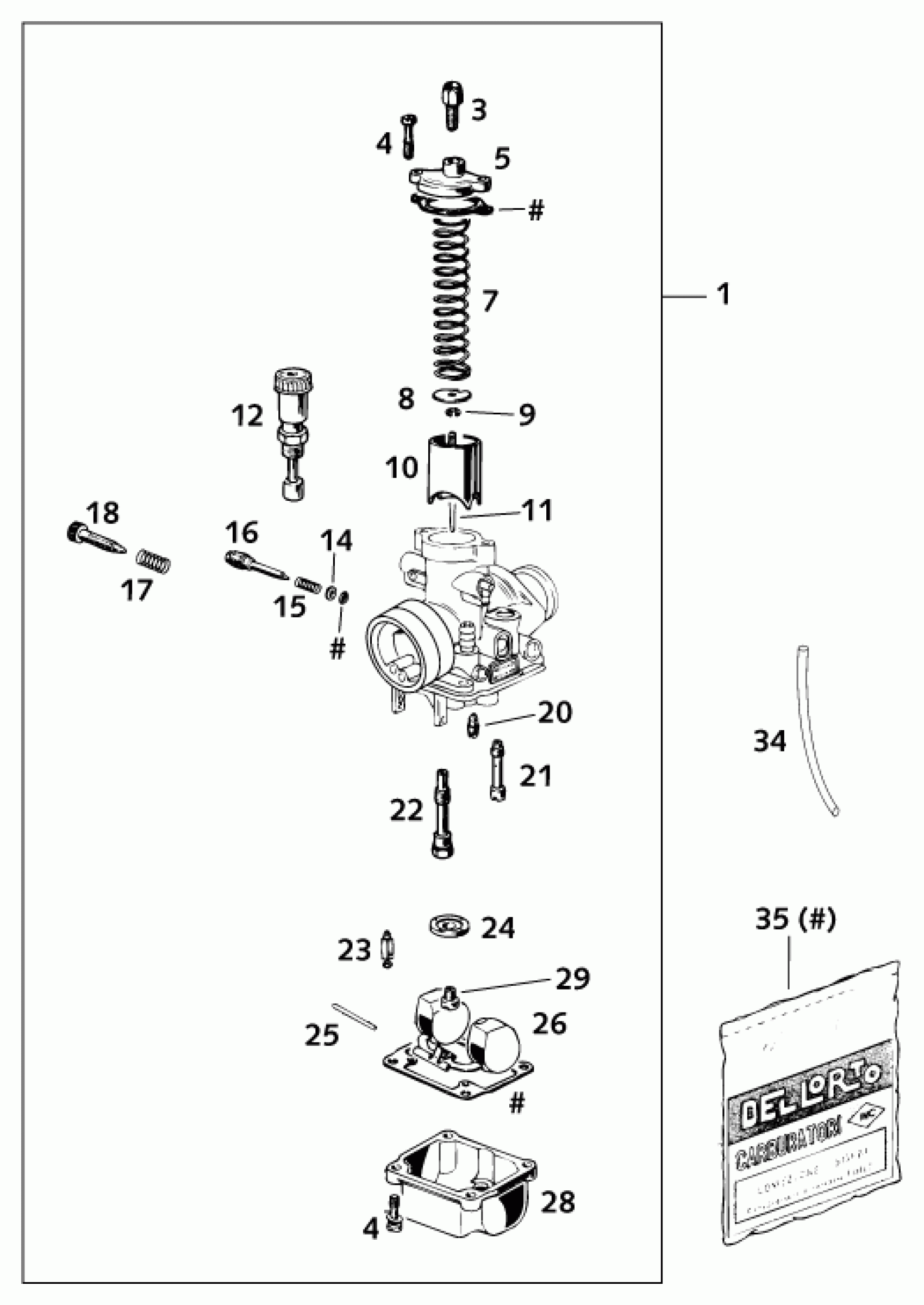

KTM 50 SX PRO SENIOR LC 2001 CARBURETOR Diagram

#

Description
Price

1

CARBUR. DELLO. PHBG 19 BS 2001

45131001100

$338.56

3

ADJUSTMENT SCREW M6X0,75

57031525000

$5.23

4

CYL.HEAD SCREW DIN84A M4x16

0084040163

Unavailable

5

CARBURETOR COVER DELLORTO 19

45131027000

$5.23

7

SPRING DELLORTO

45131030000

$3.08

8

RETAINING SPRING DELLORTO

45131109000

$3.08

9

SPRING DELLORTO

45131045000

Unavailable

10

THR. VALVE DELLO.19 60 2001

45131035000

$43.94

11

JET NEEDLE W9

45131034009

$17.85

12

STARTING BUTTON DELLORTO 19

45131048000

$42.16

14

WASHER 3,3 X 5,8 X 0,5

57031572000

$2.05

15

SPRING DELLORTO

45131015000

$2.05

16

AIR ADJUST SCREW DELLORTO

45131017000

$6.35

17

SPRING FOR AIR ADJUST SCREW

45131016000

$4.11

18

IDLE ADJUST SCREW

45131019000

$7.00

20

IDLING JET 45 DELLORTO

45131007045

Unavailable

20

IDLING JET 48 DELLORTO

45131007048

$7.28

20

IDLING JET 50 DELLORTO

45131007050

Unavailable

20

IDLING JET 52 DELLORTO

45131007052

Unavailable

21

START JET 60 DELLORTO

45131051060

$10.93

22

NEEDLE JET 260

45131021260

$21.59

23

FLOATING NEEDLE VALVE DELLORTO

45131020000

$8.69

24

COVER DELLORTO

45131074000

$5.32

25

PIN DELLORTO

45131008000

$2.05

26

FLOAT 4 GR.

45131009000

$56.00

28

FLOAT BOWL DELLORTO 19

45131011000

$8.69

29

MAIN JET 80 DELLORTO

15131123080

Unavailable

29

MAIN JET 85 DELLORTO

15131123085

$5.51

29

MAIN JET 90 DELLORTO

15131123090

Unavailable

34

PVC-HOSE 3X5MM

52031137001

Unavailable

35

GASKET SET DELLORTO 19

45131099000

$20.66
