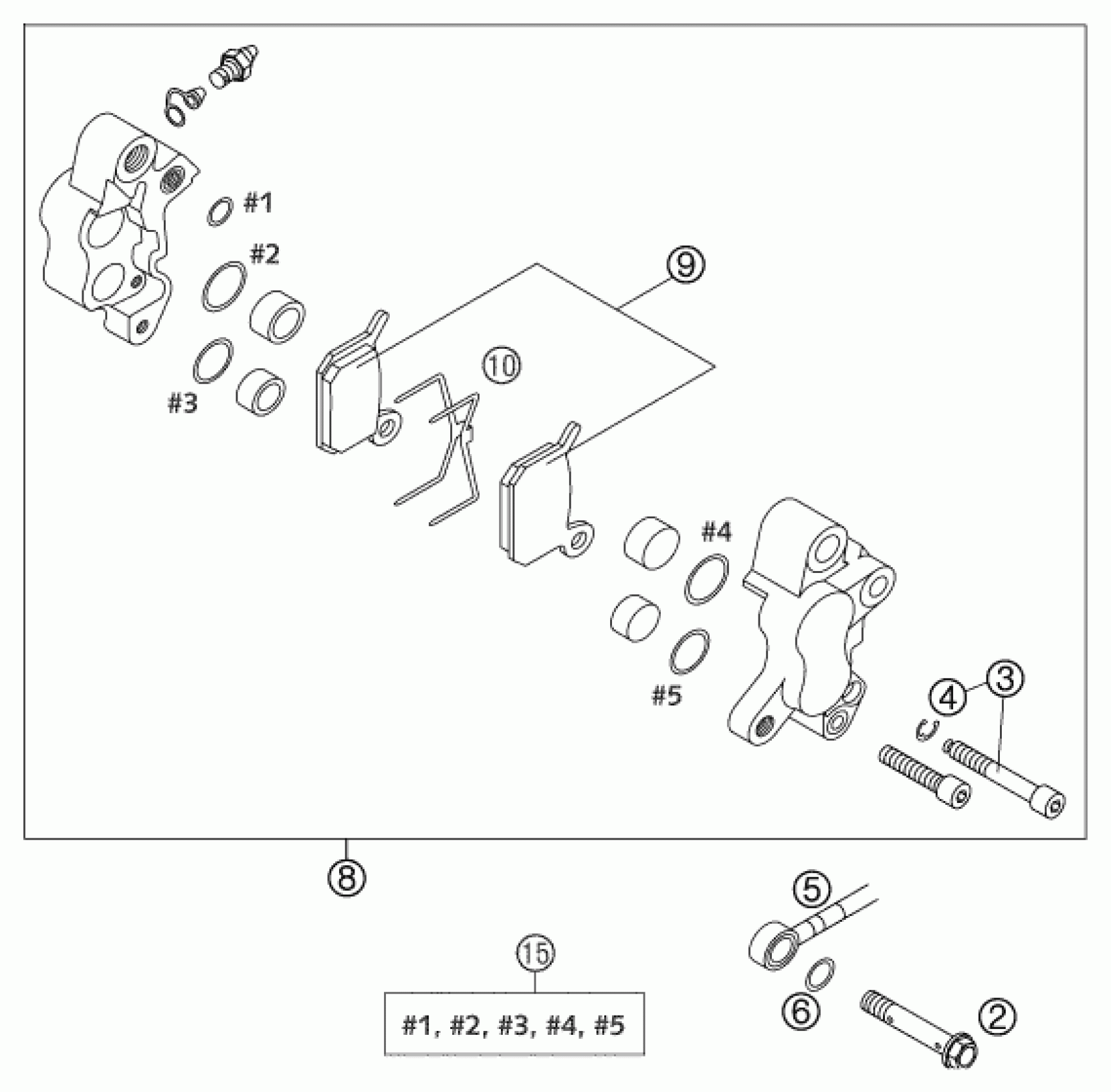

KTM 50 SX PRO JUNIOR LC 2002 FRONT BRAKE CALIPER Diagram

#

Description

Price

2

HOLLOW SCREW M6X34 50 LC 2002

45113025000

$11.49

3

AH SCREW+CIRCLIP LC 50 02

45113125000

$13.27

4

TAB WASHER DIN6799 RS2,5

0799025000

$1.49

5

BRAKE HOSE FR. SX JUN LC 2002

45113012000

$66.38

5

BRAKE HOSE FR. SX SEN. LC 02

45113012100

$68.15

6

O-RING 8,00X1,00 FORMULA

0770080019

$2.05

8

Brake caliper cmpl. fr. 50 LC

45113015000

$261.51

9

BRAKE PAD SET 50 LC 2002

45113030000

$36.36

15

REP.KIT SEAL RING 50LC 2002

45113019000

$15.89

16

HH COLLAR SCR. M8X35 WS10

0015080350

$3.08

17

HH COLLAR SCREW M 8X20 WS=10

0015080203

$2.05

10

RETAINING SPRING 50 LC

45113018000

$15.79
