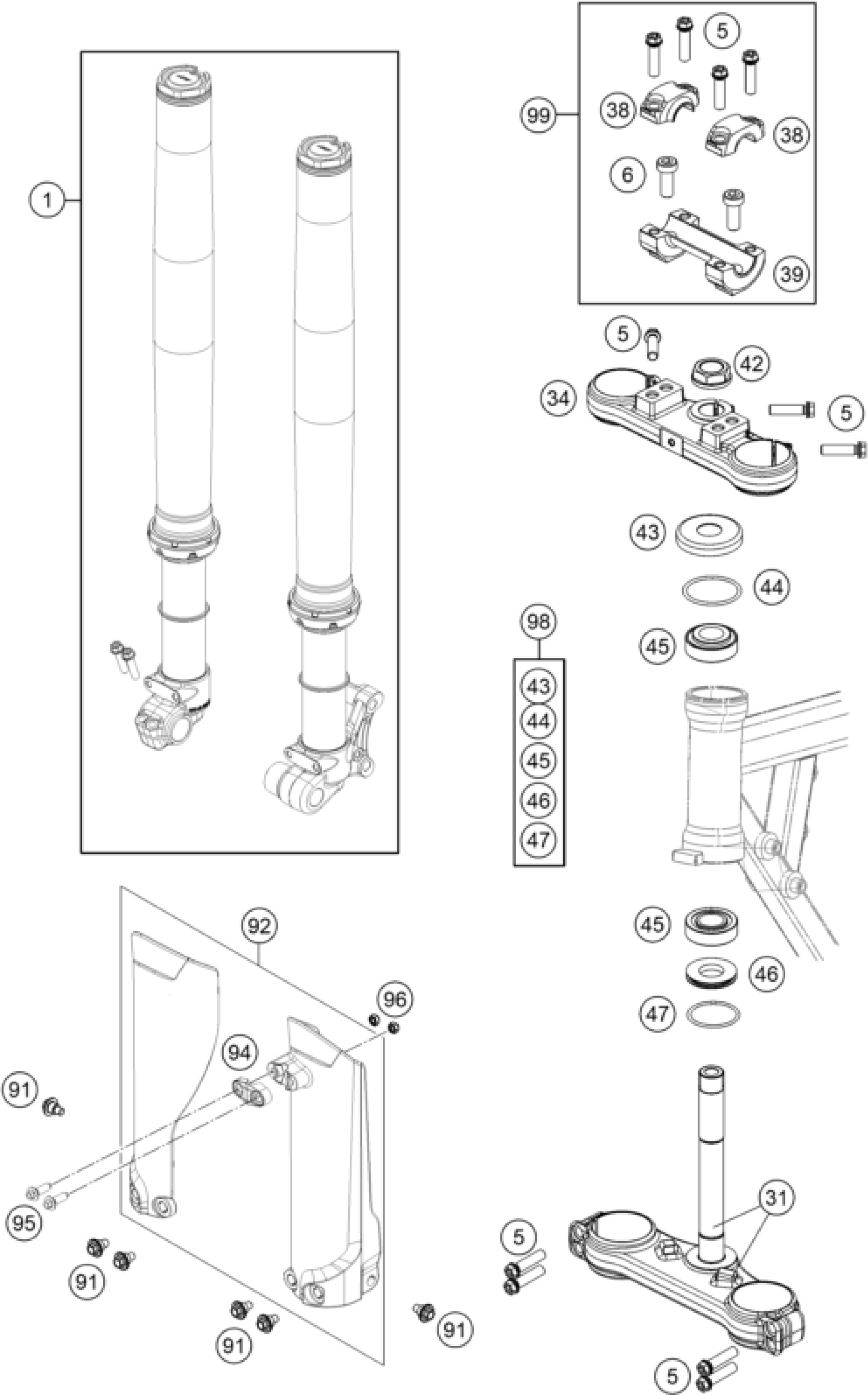

KTM 50 SX Mini 2020 FRONT FORK, TRIPLE CLAMP Diagram

Fork 50 SX/TC Mini 20

07181T0101

$1,422.98

HH collar screw M8x30

0025080306

$3.08

AH collar screw M10x25 ISA45

0032100256S

$4.11

BOT.FORK PLATE CPL.

45201132022

$155.48

TOP TRIPLE CLAMP

45201034022

$153.33

HANDLEBAR CLAMP D=22MM 2001

50301038000

$21.50

HANDLEBAR SUPPORT 50SX D=22MM

45201039000

$62.26

HH NUT M20X1,5 WS=27 RIGHT

59030029000

$8.87

COVERING CAP

49001086000

$6.72

O-RING 49,00X2,50 NBR

0770049025

$3.08

TAPERED ROLLER BEARING 32004X

49001081000

$42.16

PROTECTION RING 20,1X39X5

46001086000

$8.59

O-RING 36,00X3,00 NBR

0770360030

$2.05

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

Fork protection kit 50 65 20

46301094000ABA

$78.19

Clamp brake hose

46301085000AB

$5.09

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

Self locking nut DIN 985 M5

0985050003

$2.05

STEARING HEAD REP. KIT MINI

00050000931

Unavailable

HANDLEBAR SUPPORT KIT 50SX '12

00050000925

$85.82
