Description

Price

1

ISA countersunk head screw M4x

00600003

$1.49

2

O-ring 4x1,5 NBR70

50180222

$1.49

3

Screw cover M38x1,5 cmpl.

35480588S

$46.46

4

O-ring 35x1,5 NBR70 yellow

46180581

$2.05

5

Fork outer tube 36x425 dt44 db

35480556

$211.11

6

Fork Protection ring 48.1mm

35480581

$2.05

7

piston rod 50X mini cmpl.

35480495S1

$184.93

8

SPRING 2.0N/MM SET D=3.1MM

95010051S

$130.89

8

SPRING 1,8 N/MM SET

95010055S

Unavailable

8

SPRING 2,2 N/MM SET

95010052S

Unavailable

9

Washer 22x30x2,5

35480497

Unavailable

10

AXLE CLAMP R/S CPL. W. TUBE

35480455S3

$326.87

11

AXLE CLAMP L/S CPL. W. TUBE

35480456S1

$326.87

12

HH collar screw M6x25 TX30

0025060256

$3.08

98

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

13

Stroke indicator d35 red

35480583

$4.11

14

Sticker set XACT 140x141

52000220SET

$31.13

99

Repair kit 35mm black 50SX/TC

RP10028

Unavailable

97

Fuchs grease IPR (250g)

T14034

Unavailable

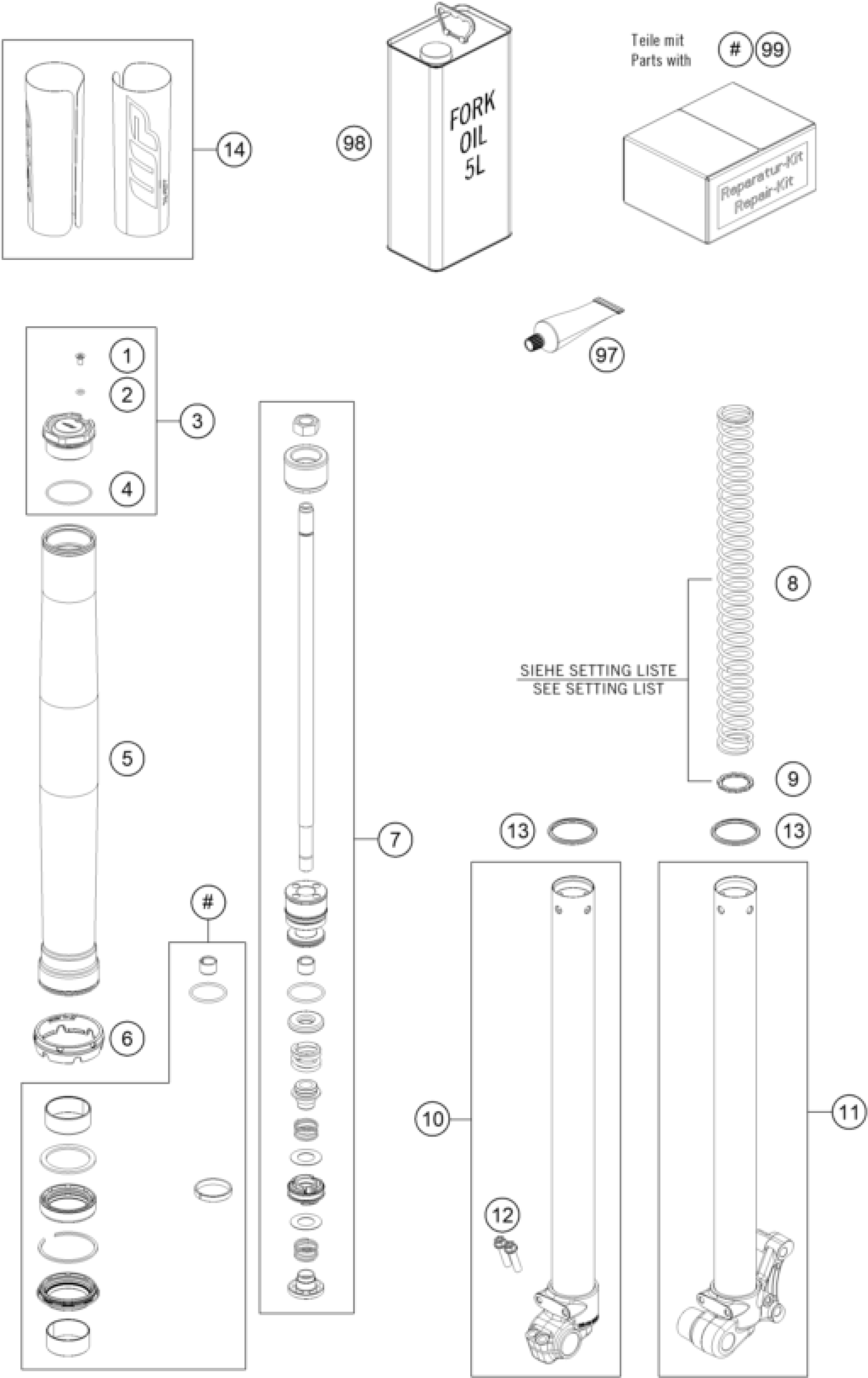

KTM 50 SX Mini 2020 FRONT FORK DISASSEMBLED Diagram

ISA countersunk head screw M4x

O-ring 4x1,5 NBR70

Screw cover M38x1,5 cmpl.

O-ring 35x1,5 NBR70 yellow

Fork outer tube 36x425 dt44 db

Fork Protection ring 48.1mm

piston rod 50X mini cmpl.

SPRING 2.0N/MM SET D=3.1MM

SPRING 1,8 N/MM SET

SPRING 2,2 N/MM SET

Washer 22x30x2,5

AXLE CLAMP R/S CPL. W. TUBE

AXLE CLAMP L/S CPL. W. TUBE

HH collar screw M6x25 TX30

Fork Fluid Viscosity 4.0 5L

Stroke indicator d35 red

Sticker set XACT 140x141

Repair kit 35mm black 50SX/TC

Fuchs grease IPR (250g)
