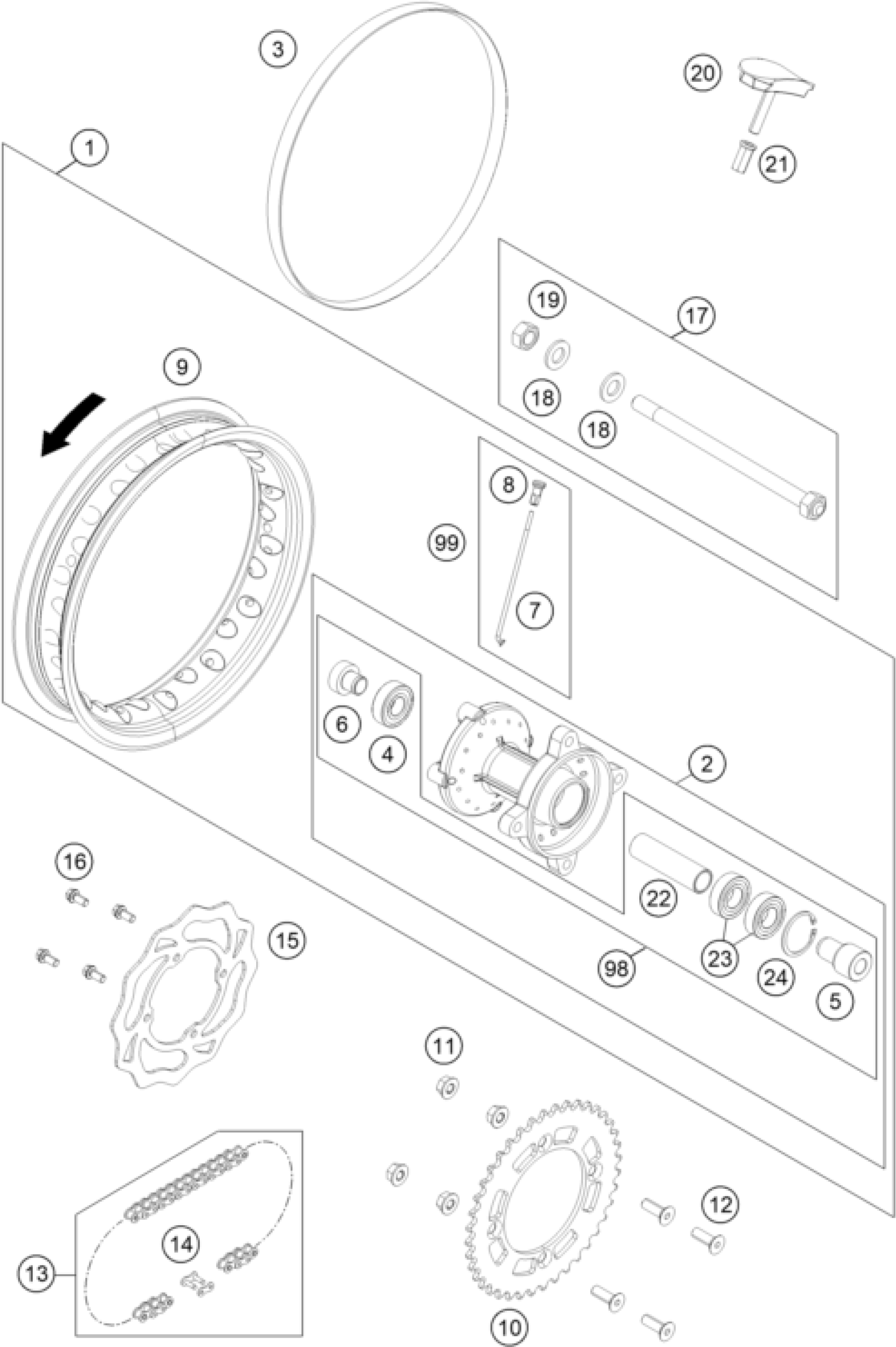

KTM 50 SX Mini 2019 REAR WHEEL Diagram

#

Description
Price

1

Rearwheel 50SX-Mini 2018

45310001144

$677.40

2

REAR WHEEL HUB CPL. 50SX 2015

45210010144

$306.58

3

RIM BAND 10'' 22MM

45009073000

$6.07

4

BALL BEARING 6202-2RSH/C3

0625062028

$14.11

5

SPACER BUSHING LEFT 2015

45210013100

$20.00

6

SPACER BUSHING REAR R/S

45210014000

$19.63

7

SPOKE 3X101 C.113°

45210071101

$2.05

8

SPOKE NIPPLE ALU

46210072000

$2.05

9

Rear rim 1,6x10"

4521007020033

$176.61

10

SPROCKET 38-T 50SX ´13

45210151038

Unavailable

10

Sprocket 39-T 50SX

45210151039

Unavailable

10

SPROCKET 40-T 50SX ´13

45210151040

Unavailable

10

Sprocket 41-T 50SX

45210151041

Unavailable

10

SPROCKET 42-T 50SX ´13

45210151042

Unavailable

11

Self locking nut M8 10.9

54310086200

$3.08

12

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

13

RACING CHAIN 1/2X3/16'' 50 SX

45110265104

$40.79

14

CONNECTING LINK 1/2X3/16'' 90R

45110266000

$4.24

15

BRAKE DISC FRONT JUN/SEN 09

45209060000

$74.79

16

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

17

AXLE CPL. 207MM M12X1

46010085044

$41.69

18

FLAT WASHER DIN0125-A13

0125120003

$1.49

19

Nut M12x1 h10 WAF19 DIN 934

0934120103

$2.05

20

Rim lock 2004

45110090000

$31.03

21

NUT FOR WHEEL HOLDER

77110090050

$5.23

22

BEARING DISTANCE TUBE 2015

45210011100

$16.63

23

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

24

CIRCLIP DIN0472-35X1,5

0472035150

$2.05

98

REAR WHEEL REP. KIT 50 SX 15

45210015100

Unavailable

99

SPOKE KIT REAR 10''

00050000969

$66.10
