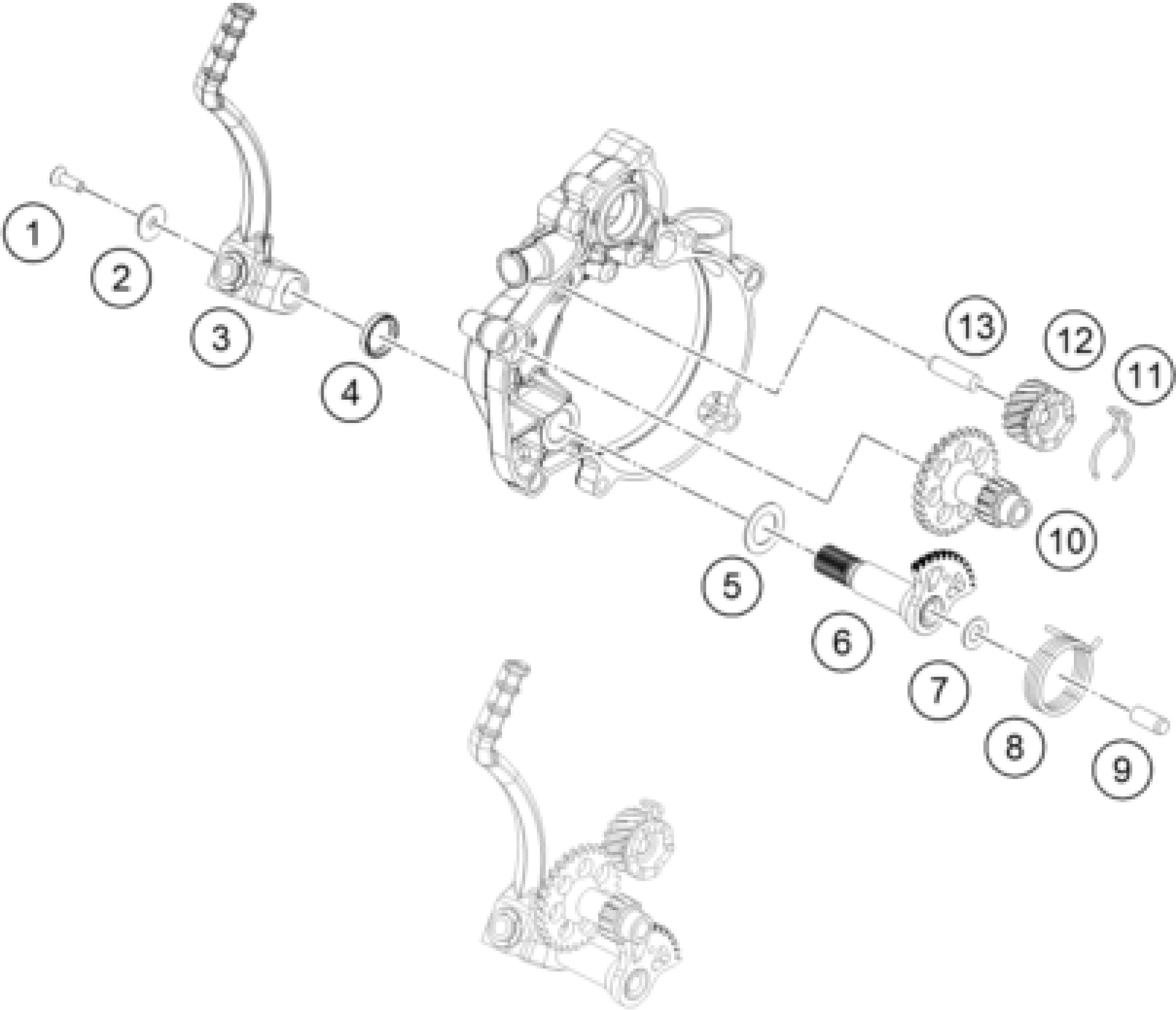

KTM 50 SX Mini 2018 KICK STARTER Diagram

#

Description
Price

1

INT. TORX FLAT HEAD M5X16 8.8

0019050163S

$2.05

2

SPECIAL WASHER FOR M5 03

60008045100

$7.56

3

KICKSTARTER CPL.

45233070044

$110.04

4

SHAFT SEAL RING BALANC. SHAFT

0760162240

$5.23

5

WASHER 16,3X25,8X1

45233058000

$4.11

6

KICK START SHAFT CPL.

45233050044

$55.72

7

WASHER 8,2X16X1

45233057000

$4.11

8

KICKSTARTER SPRING

45233054000

$6.75

9

CYLINDER STUD DIN6325 8X20 M6

0325080200

$2.05

10

KICKSTARTER SHAFT

45233053000

$102.65

11

SPRING RATCHET GEAR

45233056100

$5.23

12

RATCHET GEAR CPL

45233152016

$24.49

13

CYLINDER STUD DIN6325 8X30 M6

0325080300

$2.05
