Description

Price

1

Cross countersunk head screw M

48600481

$2.05

2

O-ring 3x1,5 NBR70

48600046

$1.49

3

Screw cap M38x1,5

35480459

$22.21

4

O-ring 35x1,5 NBR70 yellow

46180581

$2.05

5

Fork outer tube 36x425 dt44 db

35480556

$211.11

6

WP REVISION KIT SX50 MINI 35MM

RP10010

$78.53

7

piston rod 50X mini cmpl.

35480495S1

$184.93

8

SPRING 1,8 N/MM SET

95010055S

Unavailable

8

SPRING 2.0N/MM SET D=3.1MM

95010051S

$130.89

8

SPRING 2,2 N/MM SET

95010052S

Unavailable

9

Washer 22x30x2,5

35480497

Unavailable

10

AXLE CLAMP R/S CPL. W. TUBE

35480455S1

$326.87

11

AXLE CLAMP L/S CPL. W. TUBE

35480456S1

$326.87

12

HH collar screw M6x25 TX30

0025060256

$3.08

98

FORK OIL SAE5

48600765

Unavailable

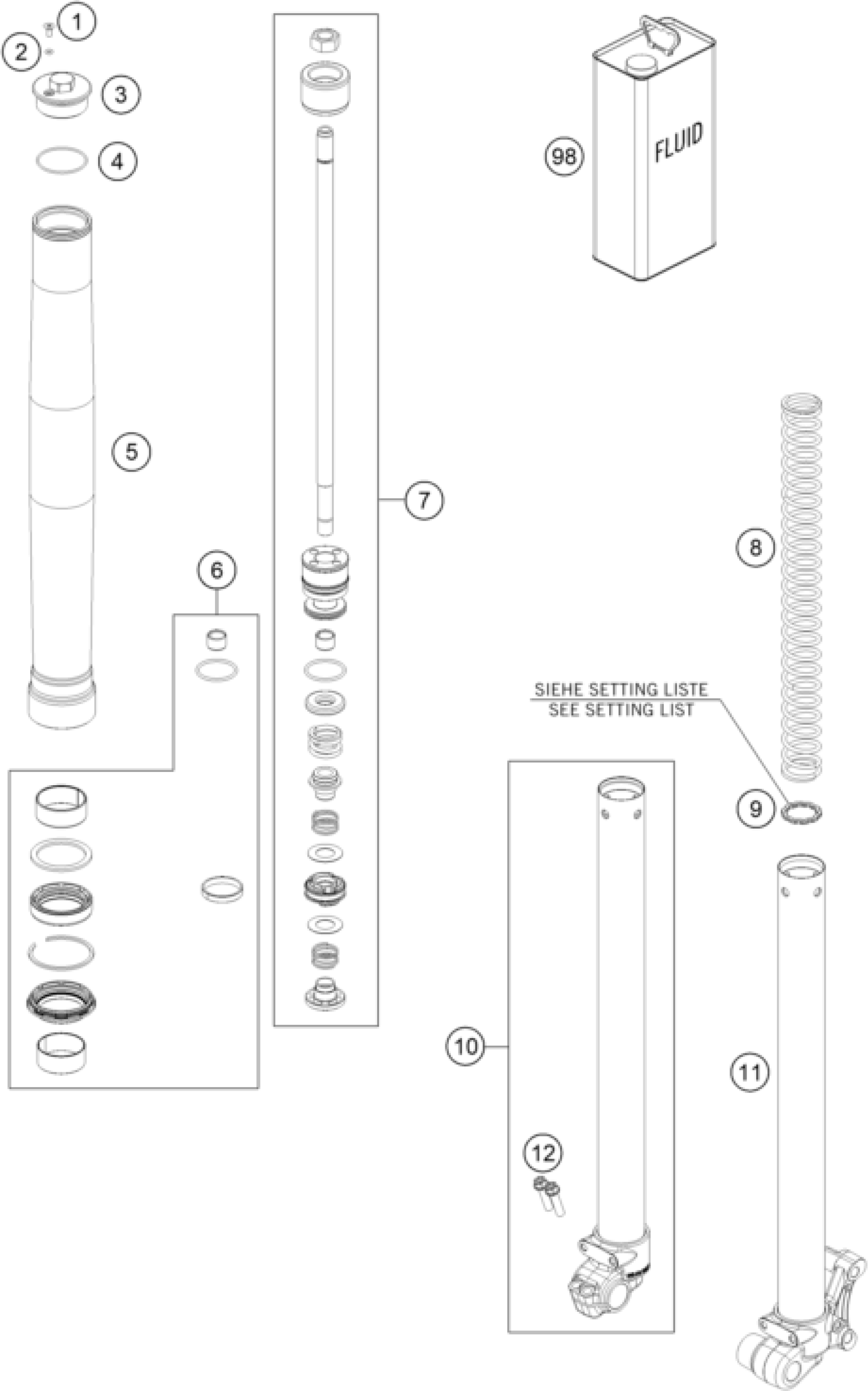

KTM 50 SX Mini 2018 FRONT FORK DISASSEMBLED Diagram

Cross countersunk head screw M

O-ring 3x1,5 NBR70

Screw cap M38x1,5

O-ring 35x1,5 NBR70 yellow

Fork outer tube 36x425 dt44 db

WP REVISION KIT SX50 MINI 35MM

piston rod 50X mini cmpl.

SPRING 1,8 N/MM SET

SPRING 2.0N/MM SET D=3.1MM

SPRING 2,2 N/MM SET

Washer 22x30x2,5

AXLE CLAMP R/S CPL. W. TUBE

AXLE CLAMP L/S CPL. W. TUBE

HH collar screw M6x25 TX30

FORK OIL SAE5
