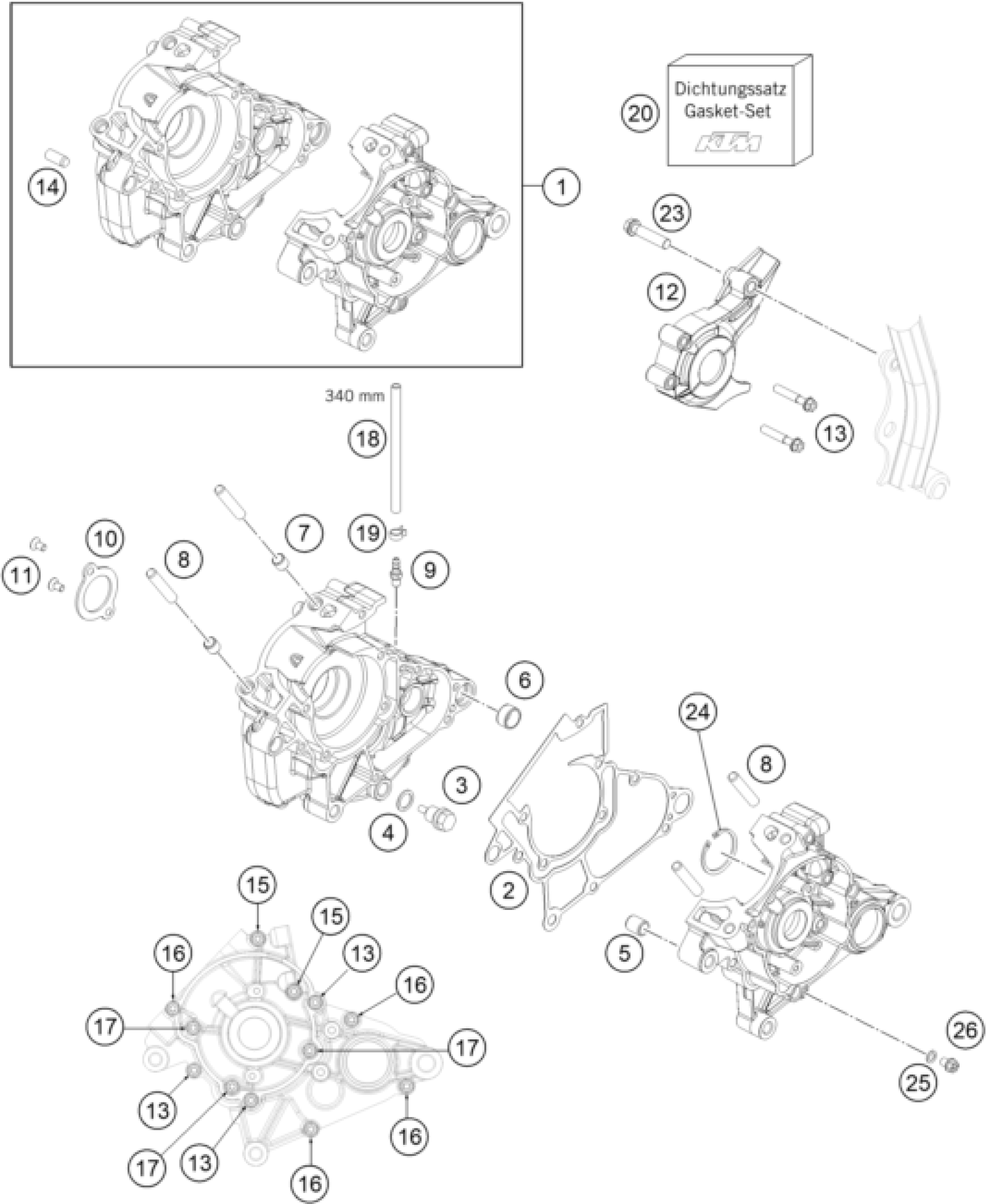

KTM 50 SX Mini 2018 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL. 50SX

45230000333

$453.56

2

ENGINE CASE GASKET

45230039000

$15.70

3

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

4

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

5

DOWEL 12X9X14,5

46230024000

$6.44

6

DOWEL 17 X 14 X 9,5

58330023000

$5.51

7

DOWEL 10X8,2X10

46230023000

$5.23

8

STUD M8X41

46030043000

$5.79

9

VACUUM CONECTION M6/3MM '97

58336020190

$5.23

10

BEARING BRACKET

45230017000

$2.05

11

hex lobe countersunc screw M5x

0019050106S

$2.05

12

CHAIN GUARD

45230060000

$24.86

13

HH collar screw M6x35 TX30

0025060356

$3.08

14

CYLINDER STUD DIN6325 8X20 M6

0325080200

$2.05

15

HH collar screw M6x55 TX30

0025060556

$3.08

16

HH collar screw M6x30 TX30

0025060306

$3.08

17

HH collar screw M6x40 TX30

0025060406

$3.08

18

PVC-HOSE 4X6MM

31007007101

Unavailable

19

YDNAC-CLAMP 10068 (6,8MM)

45230089000

$1.49

20

GASKET SET 50 SX 2009

45230099000

$126.40

23

HH collar screw M8x35 TX40

0025080356

$4.11

24

CIRCLIP DIN0472-35X1,5

0472035150

$2.05

25

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

26

HH collar screw M6x8 TX30

0025060086

$2.05
