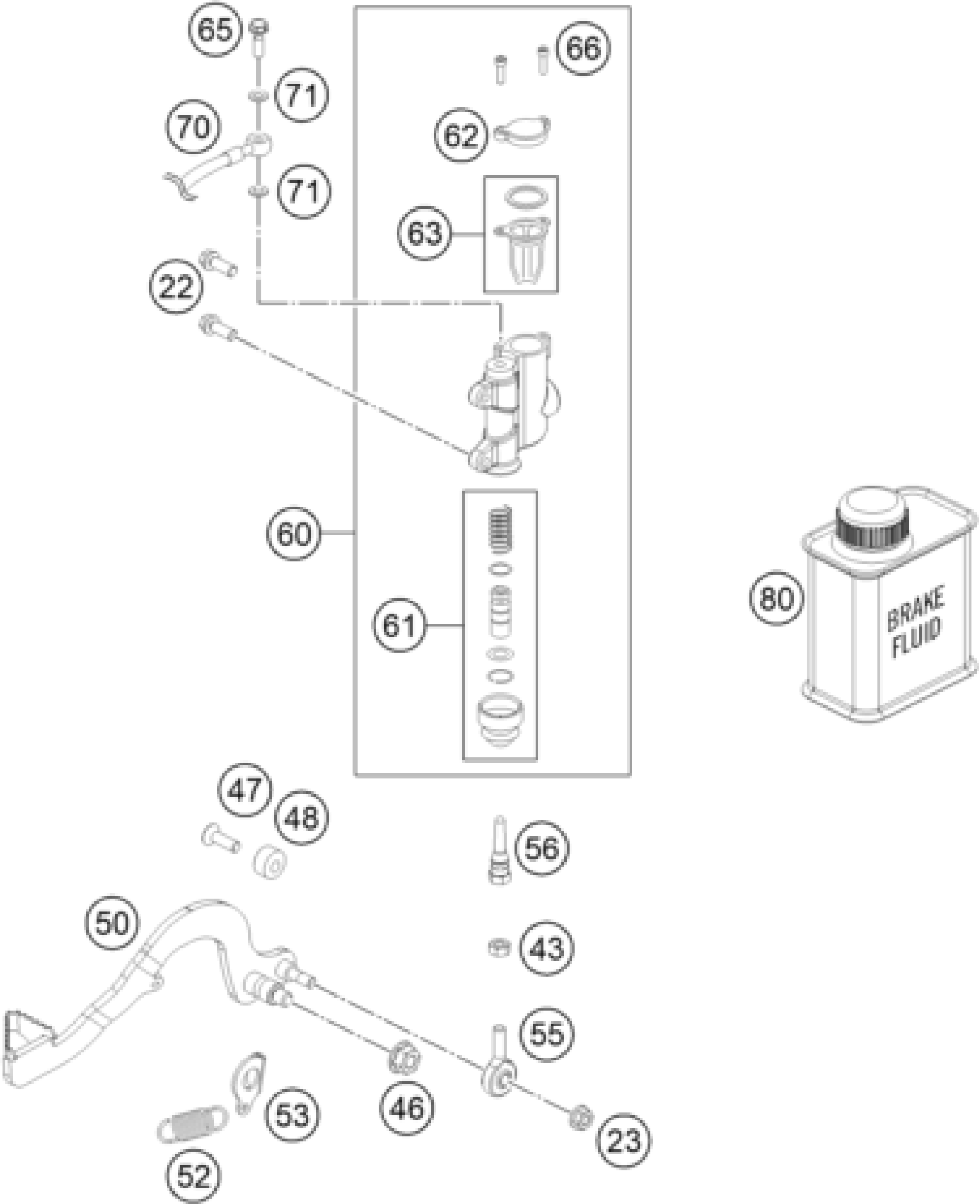

KTM 50 SX MINI 2016 REAR BRAKE CONTROL Diagram

HH collar screw M6x16 TX30

0025060166

$3.08

Self locking nut M6 - 10

56509064100

$2.05

Hex. nut DIN 934 M6

0934060003

$1.49

Self locking nut M8 10.9

54310086200

$3.08

Flat head screw DIN7991 M6X20

0991060202

$2.05

BRAKE LEVER STOP

45203063000

$27.67

FOOT BRAKE LEVER

45213050000

$115.28

RETURN SPRING FOR BRAKE LEVER

54603062100

$6.54

LOCK WASHER 50 SX

45213053000

$6.44

Heim joint KA6 INNOX

46213055000

$43.66

PUSH ROD

46213056000

$12.61

REAR BRAKE CYL. 50+65 04

46113060000

$152.12

REP. SET PISTON REAR D=11 2003

47013061000

$42.16

CYLINDER COVER REAR 85 SX 03

47013062000

$8.87

GASKET CYLINDER COVER REAR 03

47013063000

$10.74

HOLLOW SCREW M6

46113325000

$19.63

AH.SCREW DIN0912-M 4X10

0912040103

$2.05

BRAKE TUBE REAR

45213170100

$60.02

O-ring 6.00X1.00 FORMULA

0770060019

$2.05

Brake fluid DOT5.1 0,25L

00062030000

$12.52
