Description

Price

3

SPACER BUSHING LEFT

45209012000

$16.92

5

SPACER BUSHING RIGHT

45209013000

$16.92

99

SPOKE KIT FRONT 10'' '12-'14

00050000952

Unavailable

1

FRONT WHEEL 50SX MINI 2012

45209001344

$431.87

2

FRONT WHEEL HUB CPL.

45209010044

$212.24

4

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

7

SPOKE 3X100X6MM-110°

45109071102

$2.05

8

SPOKE NIPPLE ALU

46210072000

$2.05

9

FRONT RIM 10''X1.6 BLK. 2012

4520907030030

$143.61

15

BRAKE DISC FRONT JUN/SEN 09

45209060000

$74.79

16

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

17

AXLE FRONT

45209081000

$65.82

22

RIM BAND 10'' 22MM

45009073000

$6.07

46

HH COLLAR SCREW M10X20 WS=17

49032011000

$5.88

98

FRONT WHEEL REP. KIT 50 SX

45209015000

Unavailable

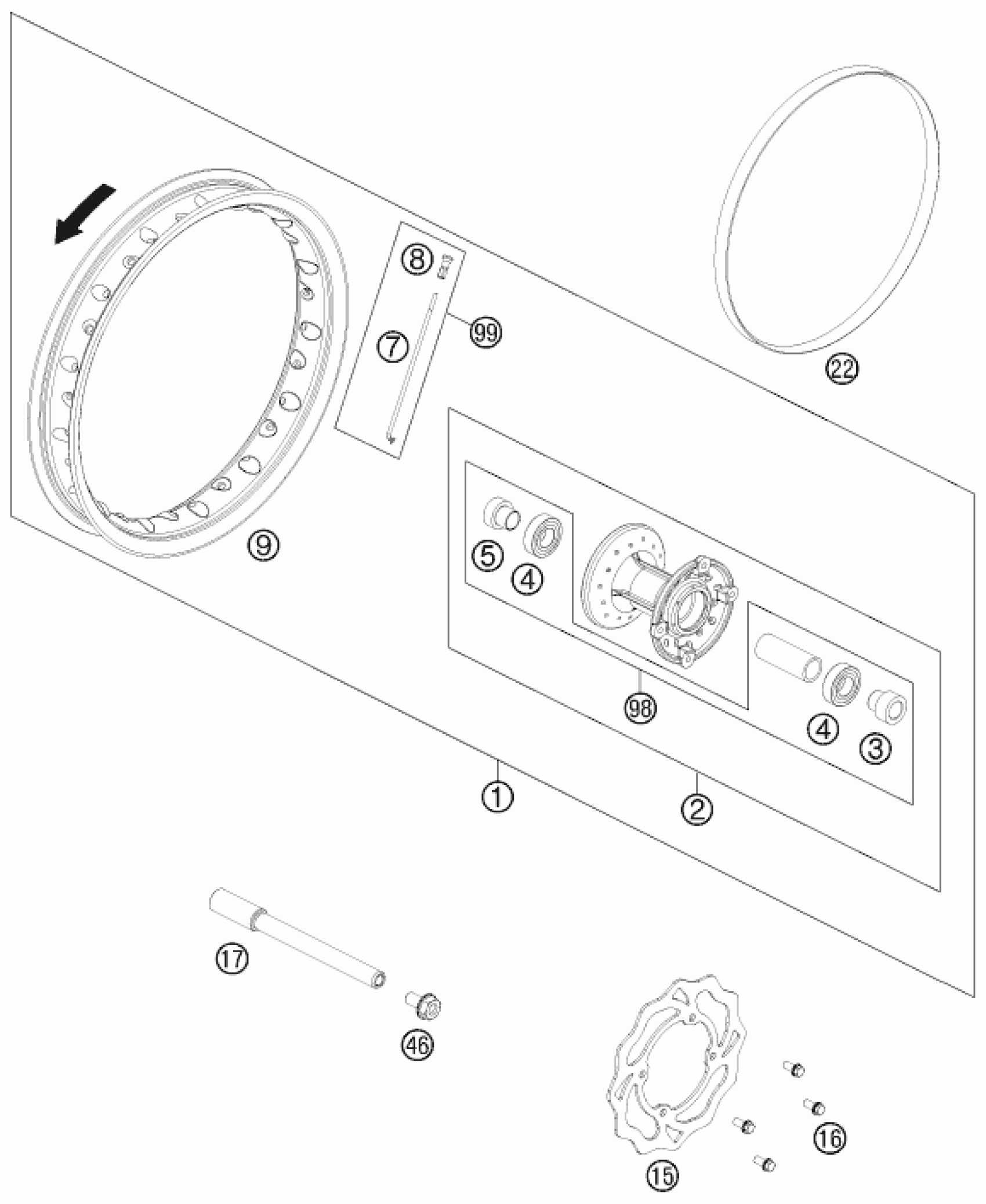

KTM 50 SX MINI 2013 FRONT WHEEL Diagram

SPACER BUSHING LEFT

SPACER BUSHING RIGHT

SPOKE KIT FRONT 10'' '12-'14

FRONT WHEEL 50SX MINI 2012

FRONT WHEEL HUB CPL.

GR.BALL BEAR. 6003-2RSH/C3HMTF

SPOKE 3X100X6MM-110°

SPOKE NIPPLE ALU

FRONT RIM 10''X1.6 BLK. 2012

BRAKE DISC FRONT JUN/SEN 09

SPECIAL SCREW M6X13 WS=8 10.9

AXLE FRONT

RIM BAND 10'' 22MM

HH COLLAR SCREW M10X20 WS=17

FRONT WHEEL REP. KIT 50 SX
