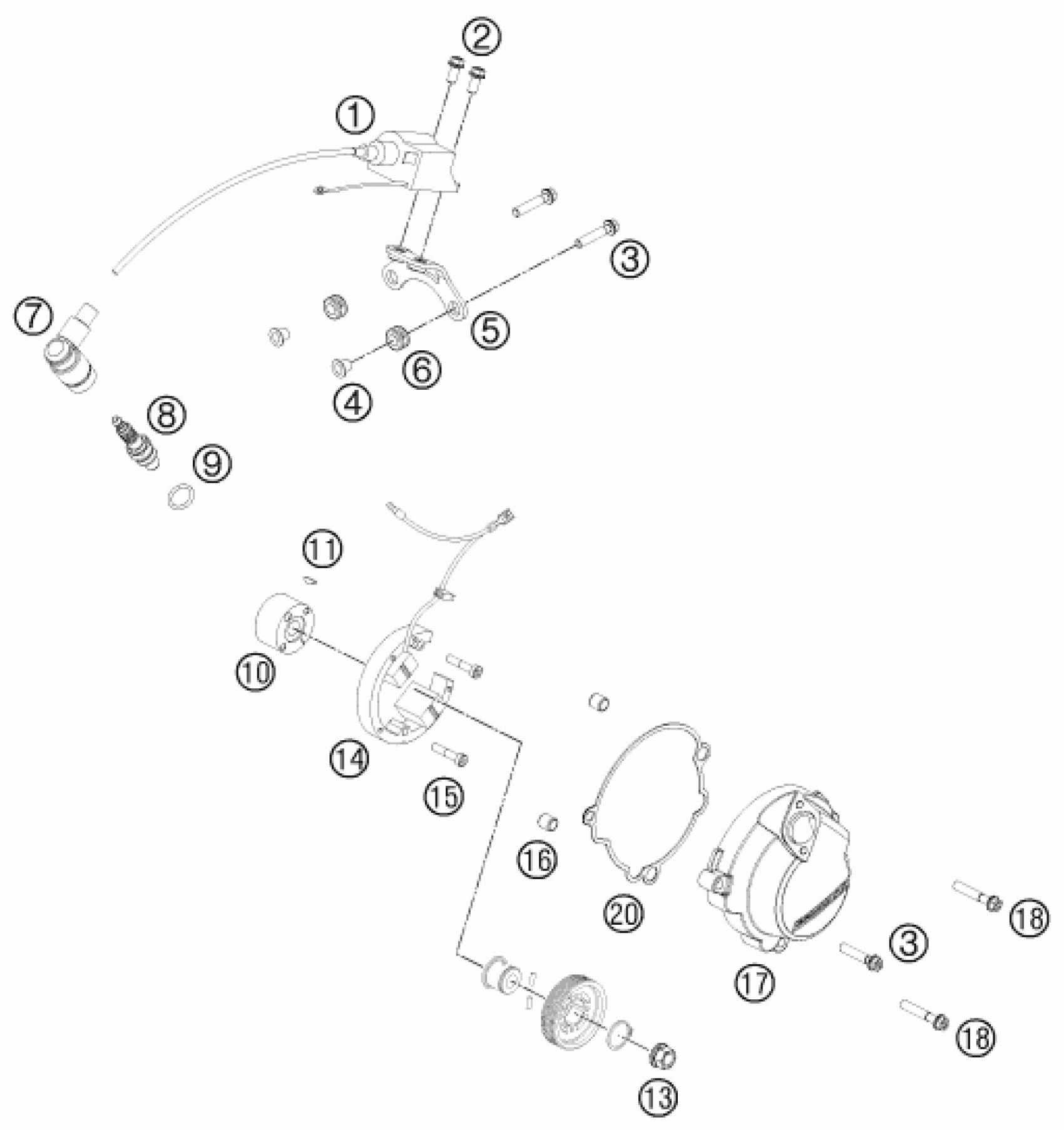

KTM 50 SX MINI 2012 IGNITION SYSTEM Diagram

IGNITION COIL

45239006100

$117.52

Hex collar screw M6x12 ISA30 s

0025060126S

$1.49

HH collar screw M6x30 TX30

0025060306

$3.08

COLLAR BUSHING 6,3X8X13X9,5

45239060050

$5.23

IGNIT. COIL RETAIN. PLATE CPL.

45239010000

$20.19

rubber grommet D=8mm open

31008060000

$2.05

SPARK PLUG CONNECTOR

46239090000

$34.12

SPARK PLUG

45239093000

$7.00

O-RING 12,00X3,0 VITON 75

0770012030

$3.08

FLYWEEL ROTOR 50 2004

45139005100

$67.97

WOODRUFF KEY DIN6888-2,5X3

0888025030

$4.11

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

FLYWHEEL STATOR 50CCM LC 2001

45139004000

$138.00

AH SCREW DIN6912 M5X25

0012050253

$1.49

DOWEL 9,8 X 7 X 10

49030090000

$2.05

IGNITION COVER

45230002100

$52.91

HH collar screw M6x35 TX30

0025060356

$3.08

GASKET - IGNITION COVER

45230040000

$8.69
