CARBURETOR

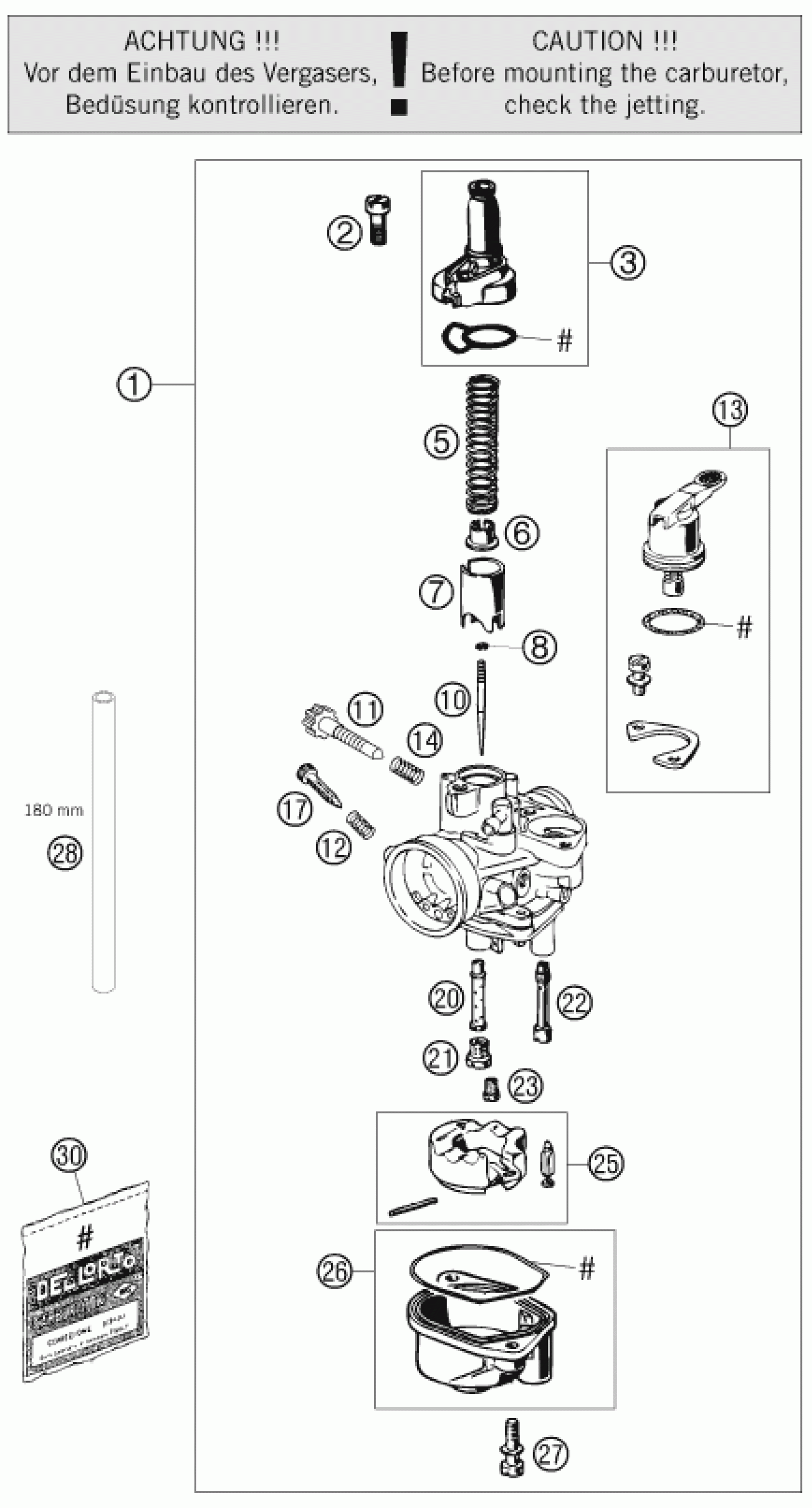

KTM 50 SX MINI 2012 CARBURETOR Diagram
#
Description
Price
2
CYL.HEAD SCREW DIN0084-M 5X16A
0084050163
$1.49
3
CARBURETOR COVER DELLOR. 12-14
45131527000
$21.40
1
CARBURETOR DEL. PHVA 12XS 05
45131001300
$356.97
5
SPRING
45131530000
$4.11
6
SPRING CAP
45131531000
$3.08
7
THROTTLE VALVE 40
45131535000
$47.02
8
CLAMP SPRING
45131545000
$2.05
10
JET NEEDLE A10
45131534010
$18.41
11
IDLE ADJUST SCREW
45131517000
$5.60
12
SPRING
45131516000
$2.05
13
STARTING LEVER CPL. DELL.12-14
45131548000
$50.01
14
SPRING
45131518000
$4.11
17
ADJUST SCREW
45131617000
$5.23
20
ATOMIZER 211FA
45131536000
$19.81
21
JET 60 DELLORTO M6X0,75
59030054000
Unavailable
21
MAIN JET 65 DELLORTO
45131023065
Unavailable
21
MAIN JET 70 DELLORTO
45131023070
Unavailable
21
MAIN JET 75 DELLORTO
45131023075
Unavailable
21
MAIN JET 80
57031523080
Unavailable
22
STARTING JET 60
45131551060
$8.78
23
IDLING JET 35
45131507035
Unavailable
23
IDLING JET 38
45131507038
Unavailable
23
IDLING JET 45
45131507045
Unavailable
25
FLOAT CPL.
45131509000
$34.03
26
FLOAT BOWL DELLORTO 12-14
45131511000
$12.15
27
CYL.SCREW DIN0084-M 4X20 A
0084040203
$1.49
28
FUEL HOSE VITON 6X1,5 PER/M
58307016001
Unavailable
30
GASKET SET DELLORTO 12-14 PHVA
45131599000
$20.00
