Description

Price

1

FRAME ''MC09'' 50SX MINI 20

4520300120030

$771.79

2

Self locking nut M8 10.9

54310086200

$3.08

3

HH collar screw M8x65 TX40

0025080656

$4.11

4

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

5

BUSHING 8,2X10X20

51103053051

$4.11

6

LOCK WASHER 8MM

36003014000

$2.05

7

HH collar screw M8x30

0025080306

$3.08

8

FOOTPEG L.+R. CPL. 85 SX 03

4700304003390

$110.13

9

FOOT PED L/S EXC SILVER 00

59003040050

$43.84

10

FOOT PED R/S EXC SILVER 2000

59003041050

$42.72

11

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

12

washer DIN 125 A 10.5

0125100003

$2.05

13

FOOTREST SPRING L/S & R/S

54603041000

$5.23

14

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

99

CHAIN SLIDING KIT BELOW MINI

51103053110

$19.53

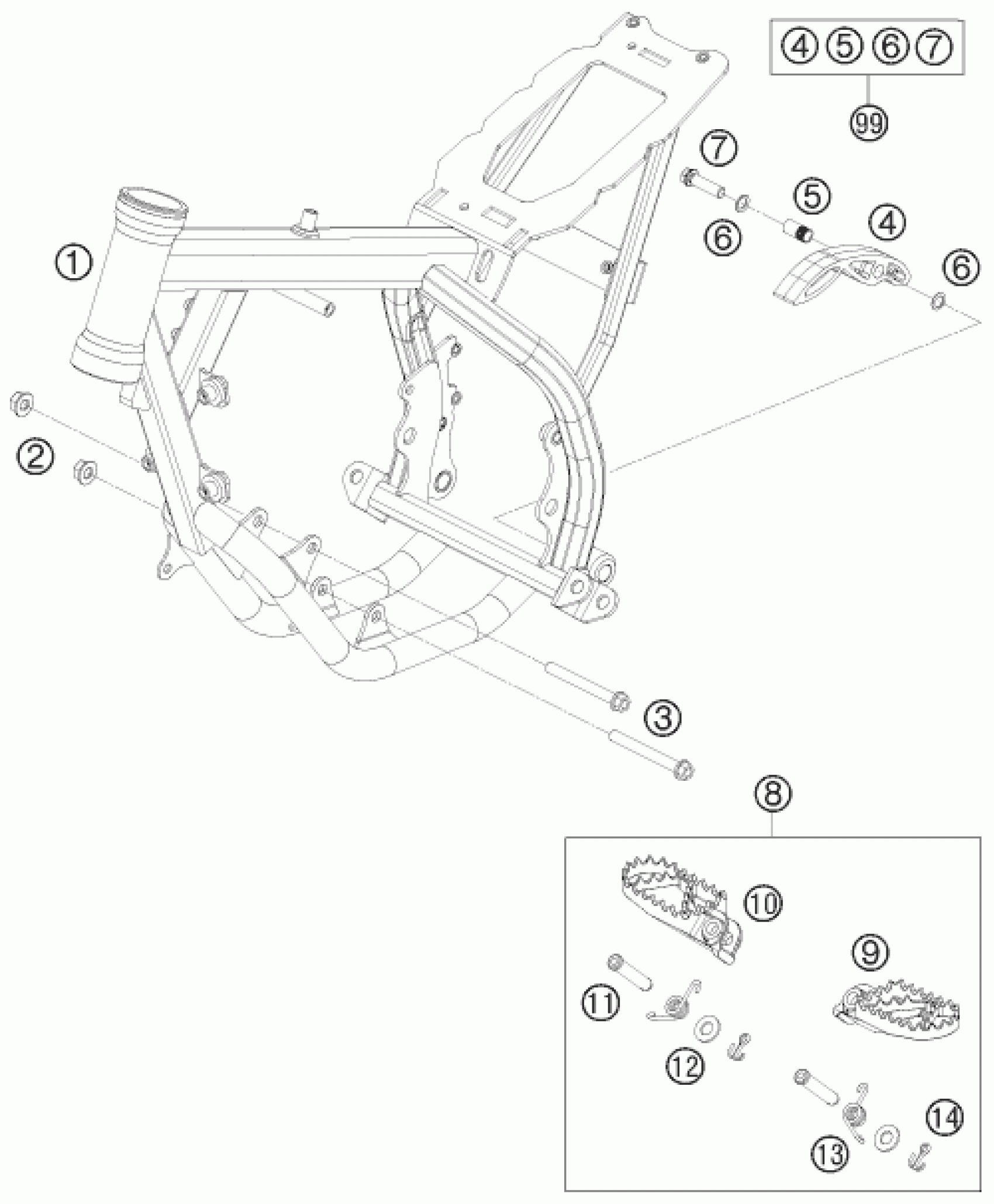

KTM 50 SX MINI 2009 FRAME Diagram
