FRONT FORK, TRIPLE CLAMP

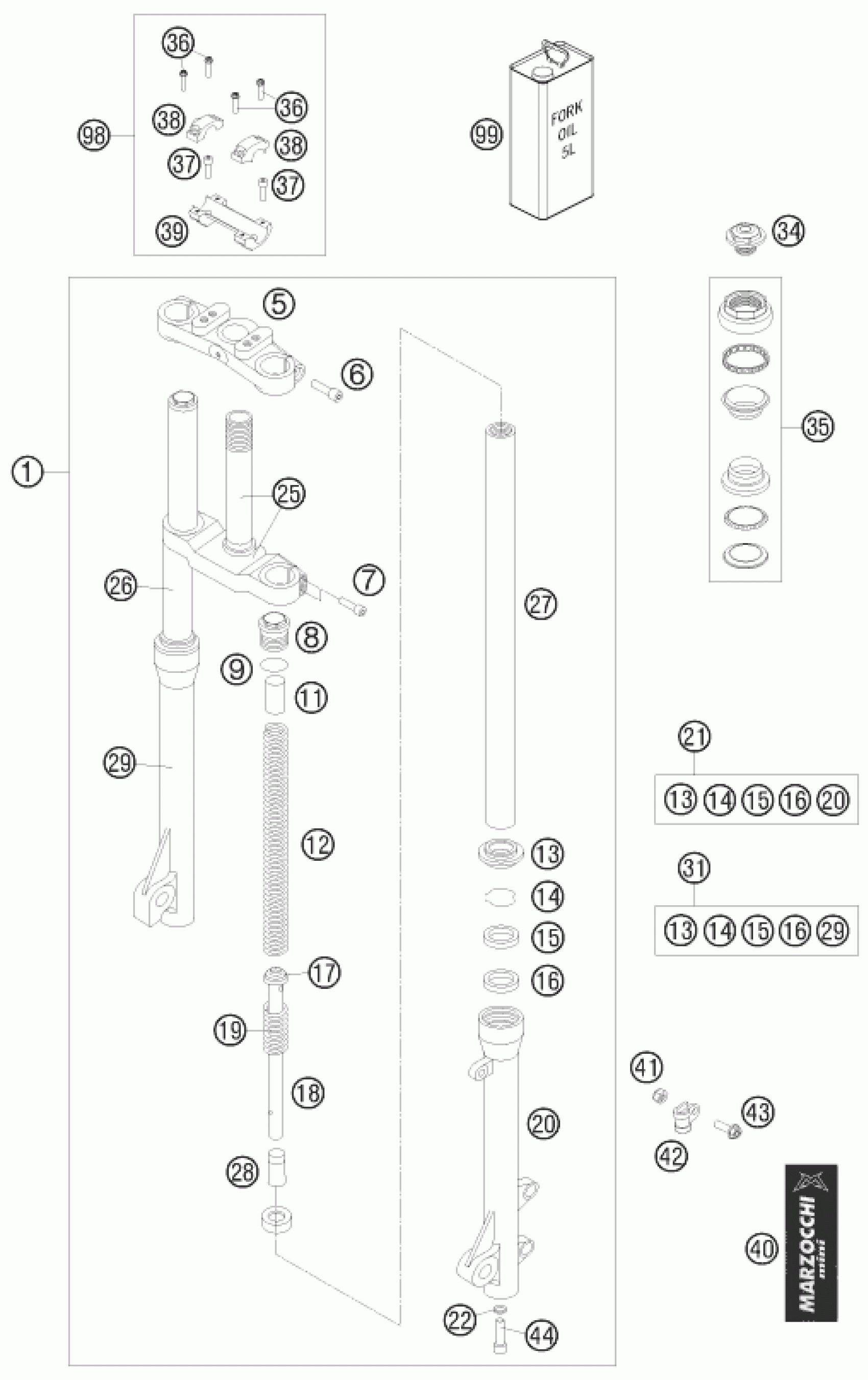

KTM 50 SX MINI <2008 FRONT FORK, TRIPLE CLAMP Diagram
#
5
TOP FORK PLATE
7501476A
Unavailable
6
AH SCREW DIN0912-M 8X30
0912080303
$2.05
7
AH SCREW DIN0912-M 6X25
0912060253
$2.05
8
PLUG CAP
7504212AC
Unavailable
9
O-RING
7528010
$1.49
1
FORK CPL. SX MINI MARZ. 2008
45101000744
Unavailable
11
PRE LOAD BUSH L=55MM 2002
7518031
Unavailable
12
SPRING 2N/MM
75141169
$14.43
12
SPRING 2,5N/MM
75141214
Unavailable
13
DUST SEAL
7533297
$9.37
14
STOP RING
7523264
$4.21
15
OIL SEAL 32/42/6,5-9,5
7528230
$14.79
16
WASHER D42X32,5X1,5
7522166AA
$4.72
19
REBOUND SPRING
75141015
Unavailable
17
PISTON RING D32
7524157
$2.50
18
PISTON ROD REBOUND MINI 02
78031105
Unavailable
18
PISTON ROD COMPRESSION MINI 02
78031104
Unavailable
20
SLIDER LEFT SIDE 2002
75031538A/A
Unavailable
21
SLIDER LEFT SIDE CPL. 2002
75031538A/A/R
Unavailable
22
WASHER 14X8X1,5
7522225
$1.49
25
BOT. FORK PLATE CPL. MINI/JUN
77051124
$182.59
26
FORK TUBE R/S MINI/JUN. 02
7708247/R
Unavailable
27
FORK TUBE L/S MINI/JUN. 02
7708248/R
Unavailable
28
FOOT BUFFER
7512068
$8.27
29
SLIDER RIGHT SIDE
75031366A/A
Unavailable
31
SLIDER CPL. RIGHT SIDE
75031366A/K/R
Unavailable
34
STEER.HEAD SCREW M20X1,5 SW 27
45101036000
$12.33
35
STEER.STEM B. CPL. 50 SXR 2006
45101081200
$16.76
36
HH collar screw M8x30
0025080306
$3.08
37
AH SCREW DIN6912-M10X25,10.9
0912100250
$4.11
38
HANDLEBAR CLAMP D=22MM 2001
50301038000
$21.50
39
HANDLEBAR SUPPORT D=22MM 2001
45101039000
$44.96
40
STICKER LEFT SIDE MARZOCCHI
7547325
$11.87
40
STICKER RIGHT SIDE MARZOCCHI
7547331
$11.87
41
Self locking nut DIN 985 M5
0985050003
$2.05
42
BRAKE CABLE CLAMP RSGU 9/12
45001070000
$5.23
43
HH collar screw M5x20 TX30
0025050206
$2.05
99
FORKOIL EBH16 SAE 7.5
7550013
Unavailable
44
AH collar screw DIN0912 M8x40
0912080403
$2.05
98
HANDLEBAR SUPPORT KIT 50 SX
00050000924
Unavailable
