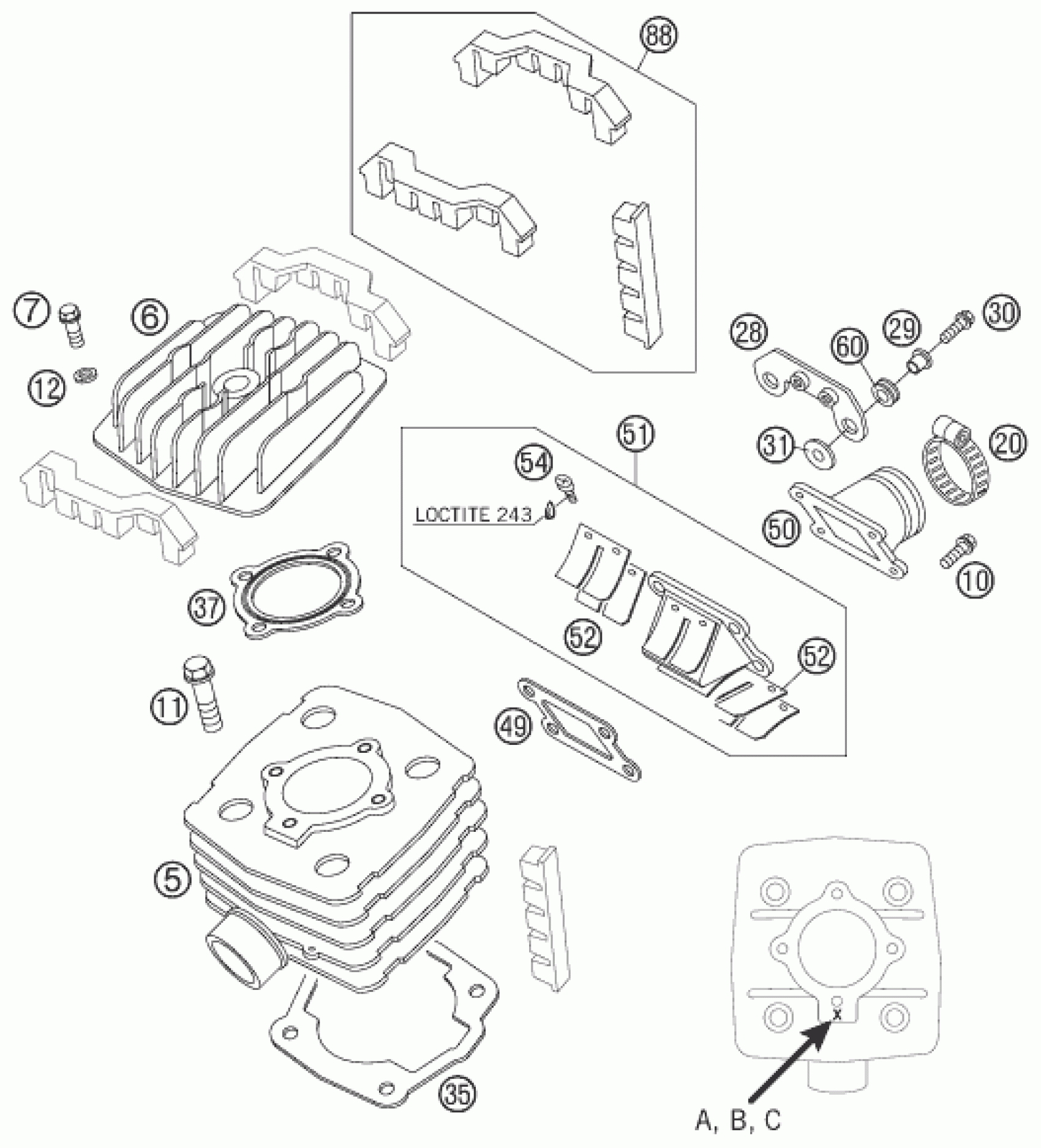

KTM 50 SX MINI <2008> CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

5

CYLINDER 39,5MM ''A'' 50 08

45130505100 A

Unavailable

5

CYLINDER 39,5MM ''B'' 50 2008

45130505100 B

Unavailable

5

CYLINDER 39,5MM ''C'' 50 2008

45130505100 C

Unavailable

6

CYLINDER HEAD 50 GS 2002

45130506100

$43.74

7

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

10

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

11

HH COLLAR SCREW M 8X20 WS=10

0015080203

$2.05

12

WASHER DIN0125-A 6,4

0125060003

$1.49

20

Hose clamp 25-40 SGT 4

10001120000

$5.32

28

BRACKET IGNITI. COIL 50LC 2001

45139028000

$5.64

29

COLLAR BUSHING 6,3X8X7,5

45139128000

$4.39

30

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

31

Washer DIN9021-A 6.4

0021060003

$2.05

35

CYLINDER BASE GASKET 0,2 MM

46030035020

Unavailable

35

CYLINDER BASE GASKET 0,5 MM

46030035050

Unavailable

37

CYLINDER HEAD GASKET 50 AC 02

45130537000

$5.23

49

INTAKE VALVE GASKET

46030049000

$2.27

50

INLET MANIFOLD 50CCM LC 2001

45130050000

$54.13

51

MEMBRANE HOUSING CPL.65SX 2001

46030051144

$71.62

52

MEMBRANE LOOSE 60/65 CCM

46030052000

$16.24

54

FLAT HEAD SCREW DIN7985-M 3X6

0985030063

$1.49

60

rubber grommet D=8mm open

31008060000

$2.05

88

DAMPING RUBBER-SET 2002

45130588000

$37.99
