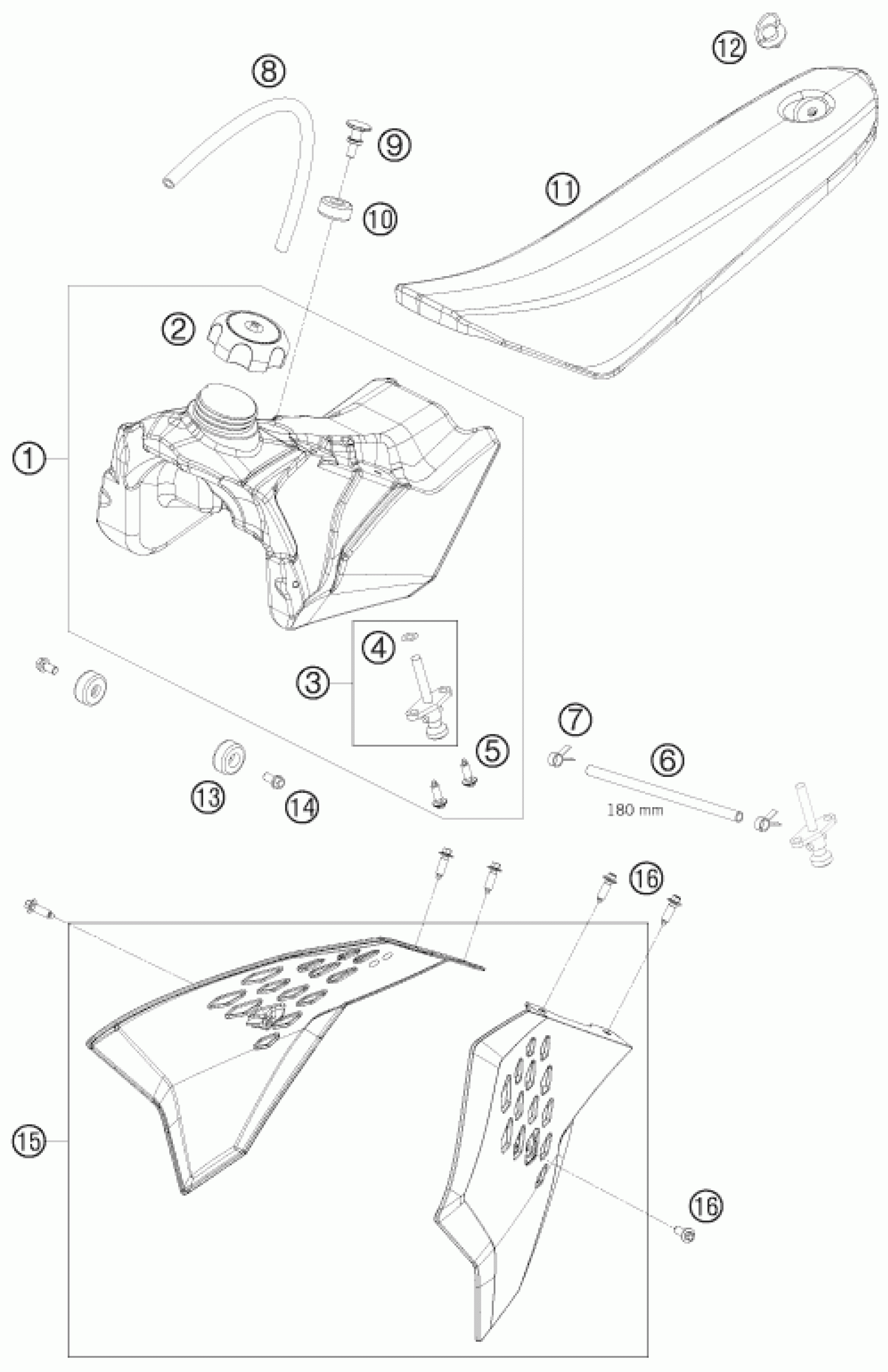

KTM 50 SX JUNIOR 2009 TANK, SEAT Diagram

FUEL TANK CPL. 50SX MINI 2009

4520701313330

$202.42

FILLER CAP CPL. SMALL

49007008044

$23.65

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

O-RING 11X1,8 NBR 70

55007006200

$2.05

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

FUEL HOSE VITON 6X1,5 PER/M

58307016001

$36.64

YDNAC-CLAMP FUEL HOSE (8MM)

45031005000

$1.49

PVC-hose 5.6X10X270MM

78007000270

$2.61

TANK SCREW MINI 50 2001

45107011000

$8.87

TANK ROLLER 12X26X12 '98

50307014000

$11.02

SEAT 50 SX 09

45207040000

$103.12

Quick lock

45007040051

$20.19

TANK ROLLER 12X26X12 '98

50307014000

$11.02

HH collar screw M6x12 TX30

0025060126

$3.08

SPOILER SET BLACK 50 SX 2009

4520805400030A

$67.10

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08
