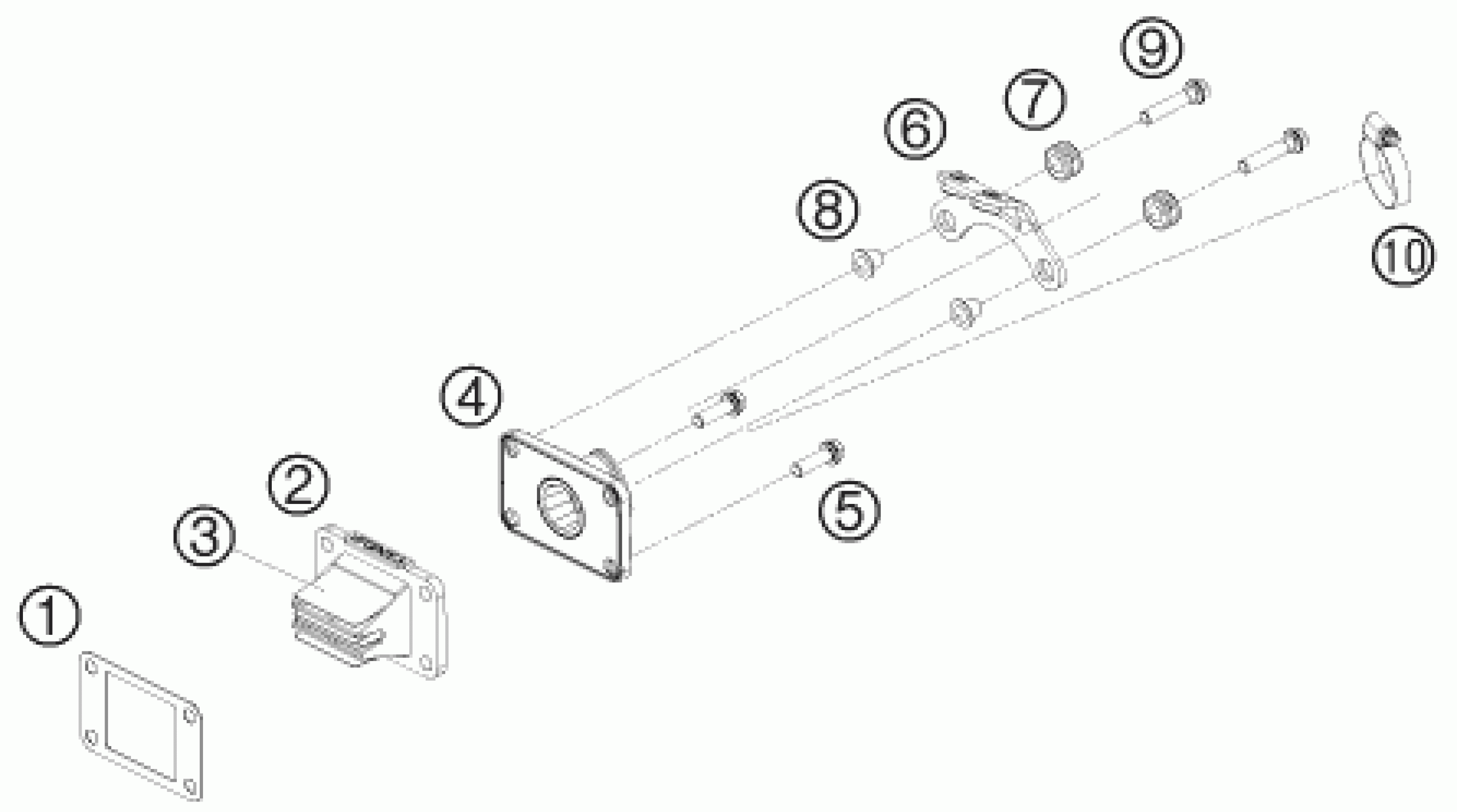

KTM 50 SX JUNIOR 2009 REED VALVE CASE Diagram

#

Description

Price

2

MEMBRANE CASE CPL. V-VORCE

45230051044

Unavailable

3

MEMBRANE

45230052000

$77.12

1

GASKET MEMBRAN CASE

46230049000

$4.11

4

INTAKE FLANGE

45230050100

$42.53

5

HH collar screw M6x20 TX30

0025060206

$3.08

6

IGNIT. COIL RETAIN. PLATE CPL.

45239010000

$20.19

7

rubber grommet D=8mm open

31008060000

$2.05

8

spacer bushing for speedometer

58314060050

$5.23

9

HH collar screw M6x30 TX30

0025060306

$3.08

10

Hose clamp 25-40 SGT 4

10001120000

$5.32
