Description

Price

8

HH collar screw M6x15 TX30

0024060156

$3.08

1

NUMBER PLATE 50 SX 09

4520800700004

$14.93

2

BRAKE HOSE GUIDE 50 SX 09

45208022000

$5.23

3

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

4

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

7

FENDER 50 SX 09

4520801000004

$34.68

9

REAR PART

4520801300004

$42.07

10

Past mount quick lock

45007040050

$4.11

11

SHEET MET.SCR.DIN7981- 3,5X16

0981350163

$1.49

12

SPACER BUSHING 03

54808020000

$4.11

13

HH collar screw M6x20 TX30

0025060206

$3.08

14

SPLASH PROTECT. 50SX JUN./MINI

45206010100

$8.59

15

BUCKET

72210079000

$3.00

6

SPACER BUSHING 03

54808020000

$4.11

99

SPLASH PROTECTOR KIT 50 SX

45206010010

$29.29

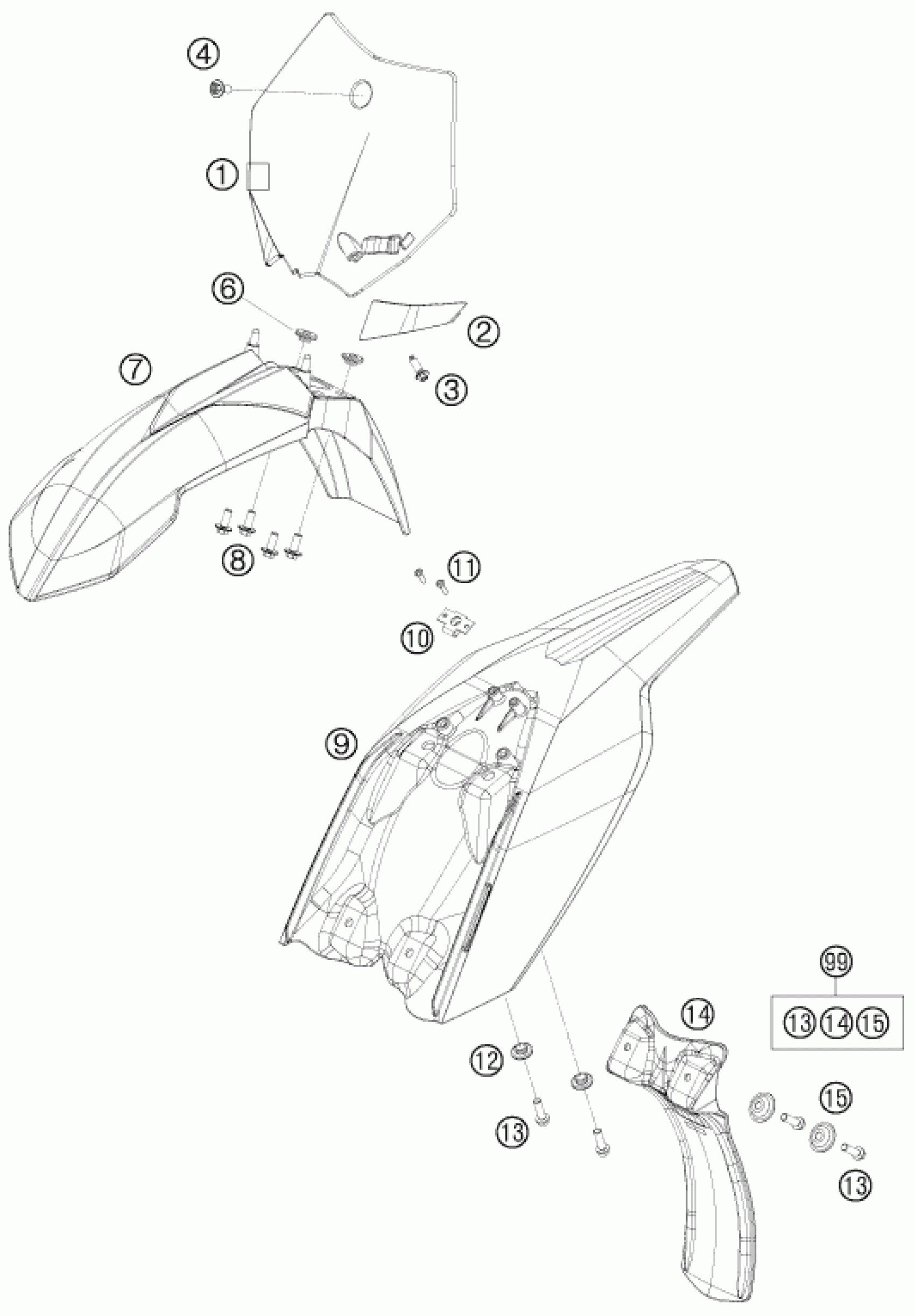

KTM 50 SX JUNIOR 2009 MASK, FENDERS Diagram

HH collar screw M6x15 TX30

NUMBER PLATE 50 SX 09

BRAKE HOSE GUIDE 50 SX 09

EJOT PT SCREW K60X20 ALU WS=6

HH COLLAR SCREW M6X10 TX30

FENDER 50 SX 09

REAR PART

Past mount quick lock

SHEET MET.SCR.DIN7981- 3,5X16

SPACER BUSHING 03

HH collar screw M6x20 TX30

SPLASH PROTECT. 50SX JUN./MINI

BUCKET

SPACER BUSHING 03

SPLASH PROTECTOR KIT 50 SX
