Description

Price

1

FRONT WHEEL 50 SX JUNIOR 2009

45209001144

$419.99

4

BALL BEARING 6202-2RSH/C3

0625062028

$14.11

7

SPOKE 3X100X6MM-110°

45109071102

$2.05

9

FRONT RIM 10''X1,6 BLACK 0

4520907010030

$150.94

2

FRONT WHEEL HUB CPL. 2002

45109010044

$212.24

8

SPOKE NIPPLE 3MM

45109072000

$2.05

15

BRAKE DISC FRONT JUN/SEN 09

45209060000

$74.79

22

RIM BAND 10'' 22MM

45009073000

$6.07

16

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

17

AXLE CPL. 207MM M12X1

46010085044

$41.69

99

SPOKE KIT REAR 10'' '11

00050000951

Unavailable

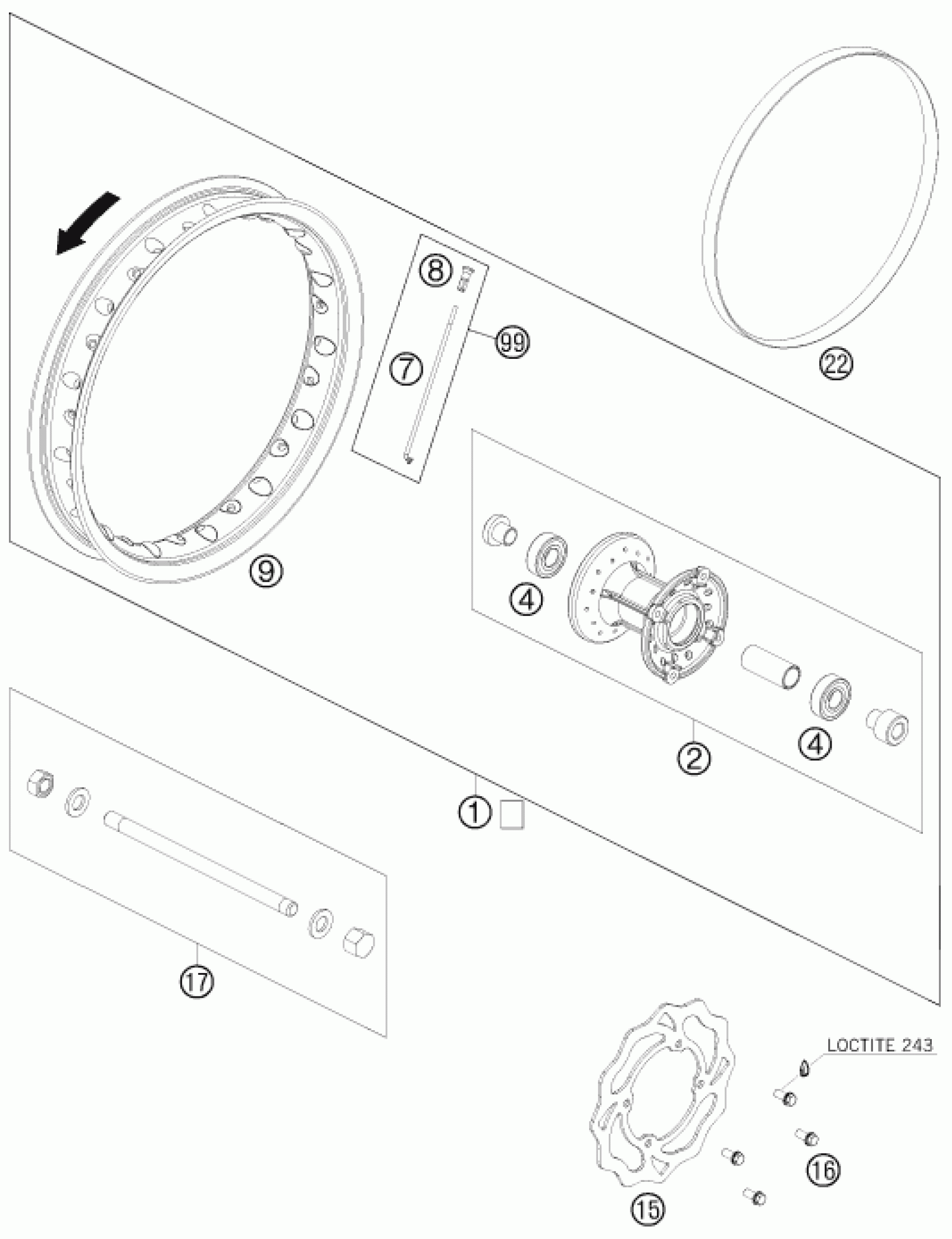

KTM 50 SX JUNIOR 2009 FRONT WHEEL Diagram

FRONT WHEEL 50 SX JUNIOR 2009

BALL BEARING 6202-2RSH/C3

SPOKE 3X100X6MM-110°

FRONT RIM 10''X1,6 BLACK 0

FRONT WHEEL HUB CPL. 2002

SPOKE NIPPLE 3MM

BRAKE DISC FRONT JUN/SEN 09

RIM BAND 10'' 22MM

SPECIAL SCREW M6X13 WS=8 10.9

AXLE CPL. 207MM M12X1

SPOKE KIT REAR 10'' '11
