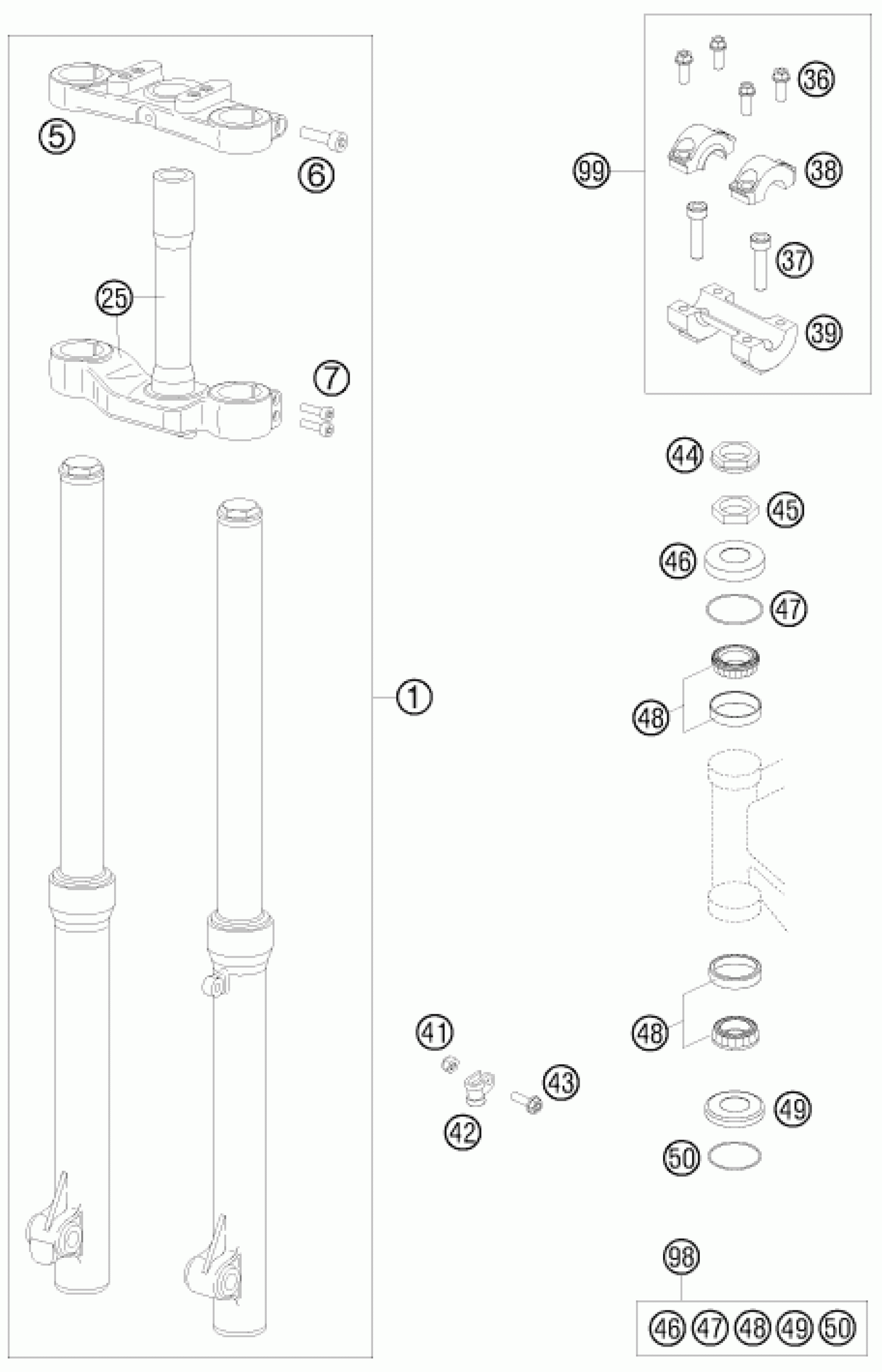

KTM 50 SX JUNIOR 2009 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

36

HH collar screw M8x30

0025080306

$3.08

37

AH SCREW DIN6912-M10X25,10.9

0912100250

$4.11

38

HANDLEBAR CLAMP D=22MM 2001

50301038000

$21.50

39

HANDLEBAR SUPPORT D=22MM 2001

45101039000

$44.96

41

Self locking nut DIN 985 M5

0985050003

$2.05

42

BRAKE CABLE CLAMP RSGU 9/12

45001070000

$5.23

43

HH collar screw M5x20 TX30

0025050206

$2.05

44

HH NUT M20X1,5 WS=27 RIGHT

59030029000

$8.87

45

STEERING HEAD NUT M20X1,5

46001043000

$7.56

46

COVERING CAP

49001086000

$6.72

47

O-ring 40.94X2.62 NBR70

0770021300

$3.08

48

TAPERED ROLLER BEARING 32004X

49001081000

$42.16

49

PROTECTION RING 20,1X39X5

46001086000

$8.59

50

O-RING 36,00X3,00 NBR

0770360030

$2.05

25

BOTTOM TRIP. CLAMP CPL.

77051264

$279.04

1

FRONT FORK CPL. 50 SX JUN.2009

45201000133

Unavailable

5

TOP FORK PLATE 50 LC SEN. 03

7501498A

$119.68

6

AH SCREW DIN0912-M 8X30

0912080303

$2.05

7

AH SCREW DIN0912-M 6X25

0912060253

$2.05

98

STEARING HEAD REP. KIT MINI

00050000931

Unavailable

99

HANDLEBAR SUPPORT KIT 50 SX

00050000924

Unavailable
