Description

Price

8

PLUG CAP

7504212AC

Unavailable

9

O-RING

7528010

$1.49

11

PRE LOAD BUSH L=55MM 2002

7518031

Unavailable

12

SPRING 2N/MM

75141169

$14.43

12

SPRING 2,5N/MM

75141214

Unavailable

13

DUST SEAL

7533297

$9.37

14

STOP RING

7523264

$4.21

15

OIL SEAL 32/42/6,5-9,5

7528230

$14.79

16

WASHER D42X32,5X1,5

7522166AA

$4.72

17

PISTON RING D32

7524157

$2.50

19

REBOUND SPRING

75141015

Unavailable

20

SLIDER L/S 50 LC 2002

75031570A

Unavailable

21

SLIDER CPL. L/S 50LC 2002

75031570A/R

Unavailable

22

WASHER 14X8X1,5

7522225

$1.49

23

AH SCREW DIN0912-M 8X30

0912080303

$2.05

26

FORK TUBE R/S MINI/JUN. 02

7708247/R

Unavailable

27

FORK TUBE L/S MINI/JUN. 02

7708248/R

Unavailable

28

FOOT BUFFER

7512068

$8.27

29

SLIDER R/S 50 LC 2002

75031571A

Unavailable

31

SLIDER CPL. R/S 50LC 2002

75031571A/R

Unavailable

40

STICKER LEFT SIDE MARZOCCHI

7547325

$11.87

40

STICKER RIGHT SIDE MARZOCCHI

7547331

$11.87

98

FORKOIL EBH16 SAE 7.5

7550013

Unavailable

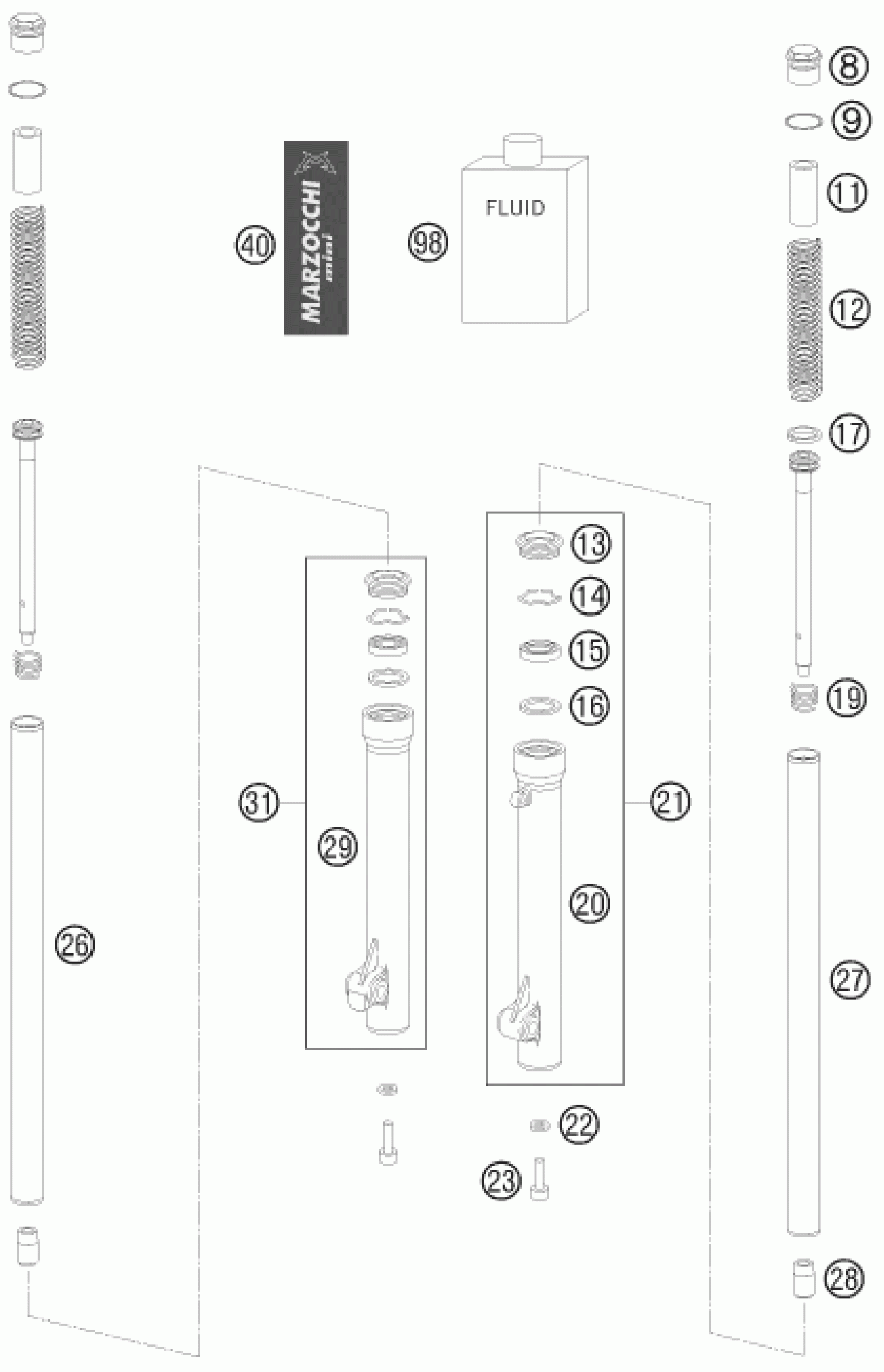

KTM 50 SX JUNIOR 2009 FRONT FORK DISASSEMBLED Diagram

PLUG CAP

O-RING

PRE LOAD BUSH L=55MM 2002

SPRING 2N/MM

SPRING 2,5N/MM

DUST SEAL

STOP RING

OIL SEAL 32/42/6,5-9,5

WASHER D42X32,5X1,5

PISTON RING D32

REBOUND SPRING

SLIDER L/S 50 LC 2002

SLIDER CPL. L/S 50LC 2002

WASHER 14X8X1,5

AH SCREW DIN0912-M 8X30

FORK TUBE R/S MINI/JUN. 02

FORK TUBE L/S MINI/JUN. 02

FOOT BUFFER

SLIDER R/S 50 LC 2002

SLIDER CPL. R/S 50LC 2002

STICKER LEFT SIDE MARZOCCHI

STICKER RIGHT SIDE MARZOCCHI

FORKOIL EBH16 SAE 7.5
